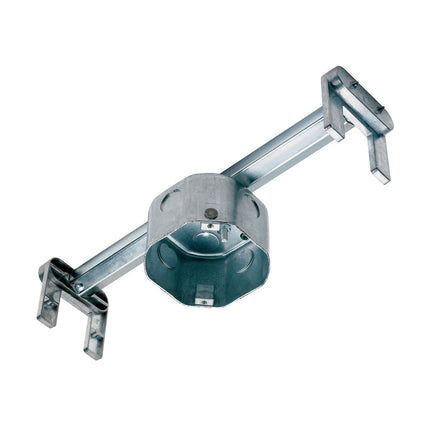

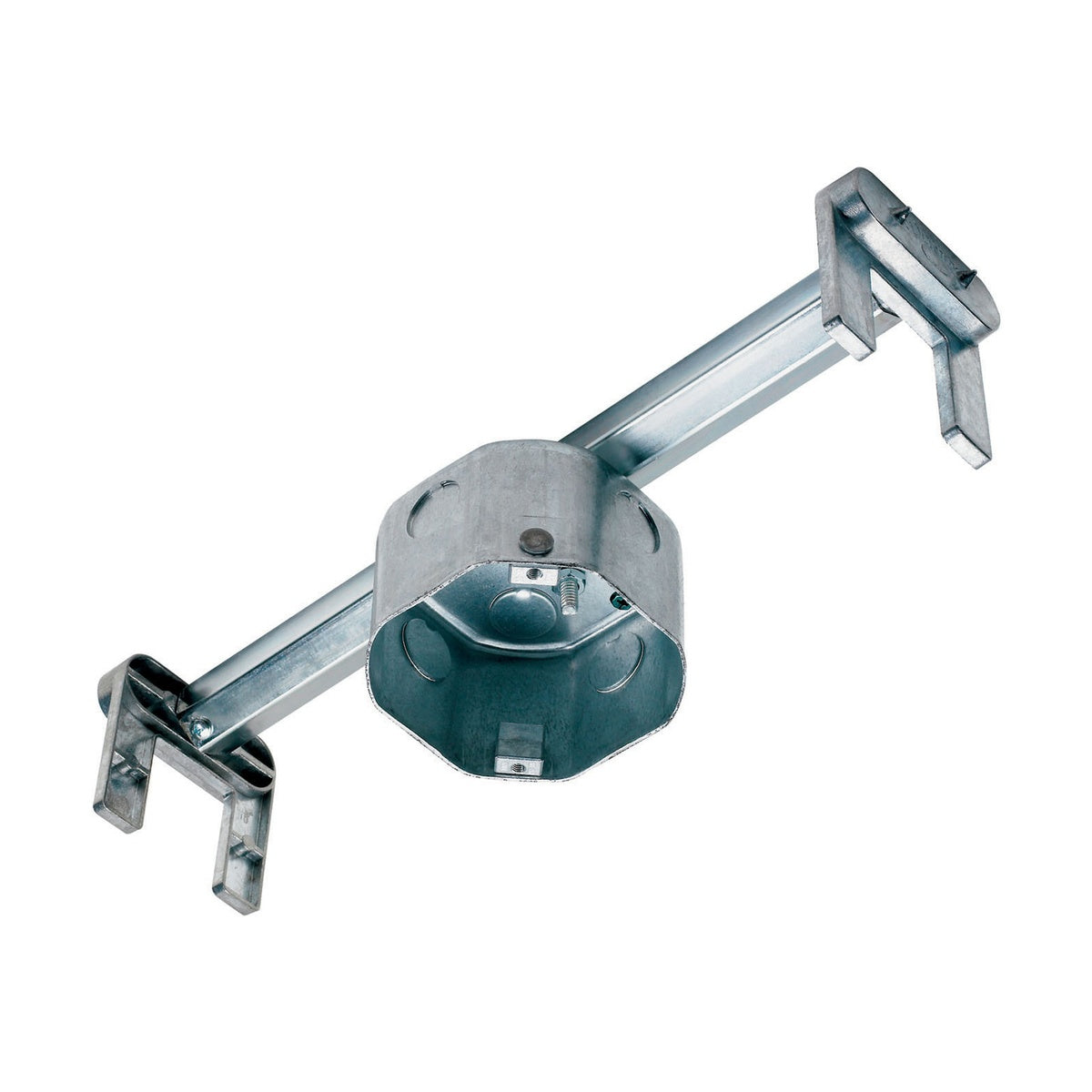

Retrofit Braces Fan Brace for Ceiling Fan and Fixture Support

The Retrofit Braces by Pass & Seymour provide a premium-grade fan brace solution with a deep metal box and rotating dual-purpose mounting supports. Designed for spans from 16 to 24 inches, this product is suitable for electrical distributors and lighting solutions providers requiring reliable support for ceiling fans and light fixtures. It is UL listed for both fan and fixture support, making it a dependable choice for wire and cable installations and switchgear suppliers involved in ceiling applications.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part #: 22200
• Country of Origin: China
• Order Minimum: 12 units
• Product Weight: 3.0867 lbs
• Span Range: 16 to 24 inches
• Box Volume: 25 cubic inches
• UL Listed for fan and fixture support

Features

• Rotating dual-purpose mounting supports accept both fan (#10-32 screws) and fixture (#8-32 screws) mounting
• Self-leveling feet for ease of installation
• Ground screw pre-installed for safety compliance
• Includes metal deep box with top knockouts for wiring access
• Supports fans up to 70 lbs and fixtures up to 150 lbs
• Designed for retrofit applications between ceiling joists
