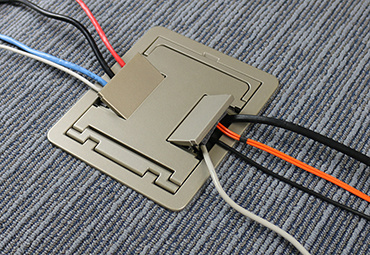

Resource RFB® Series Six Gang On-Grade Floor Box - Floor Box Solutions

The Resource RFB® Series Six Gang On-Grade Floor Box by Wiremold is designed to provide versatile power and communication services for open space areas and workstations. Suitable for use in both on-grade and above-grade concrete floors, this floor box features full adjustability with a tunnel compartment, making it adaptable to various installation needs. It is ideal for applications in schools, financial institutions, commercial office buildings, and residences, supporting electrical distributors and lighting solutions with reliable wire and cable management.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: RFB6-OG
• Color: Green
• Dimensions: Width 14.63 in, Depth 14.5 in, Height 3.25 in
• Cubic Capacity: 23 in¬≥
• Cable Entry: Knockouts
• Construction: Assembled
• Product Weight: 13.78 lbs
• Country of Origin: Mexico
• Order Minimum: 1 unit

Features

• Includes two duplex mounting plates, two communication mounting plates (RFB62A), and two blank mounting plates; other device plates sold separately
• Fully adjustable for on-grade or above-grade concrete floor installations with tunnel compartment
• Compatible with new FloorPort Activation Covers featuring TopGuard protection to prevent water, dirt, and debris entry
• UL Listed for use with tile, terrazzo, carpet, and wood floors
• Supports power and communication wiring in a single floor box for streamlined installation

Downloads & Links

• RFB2-OG Series Multiservice Steel Recessed Floor Boxes
• RFB Series Floor Boxes
• Cover-FloorPort Series BIM Model
• RFB Series Floor Boxes - Part List - COO
• Wiremold RFB Series Floor Boxes
• Floorport Series
• Spec Sheet
