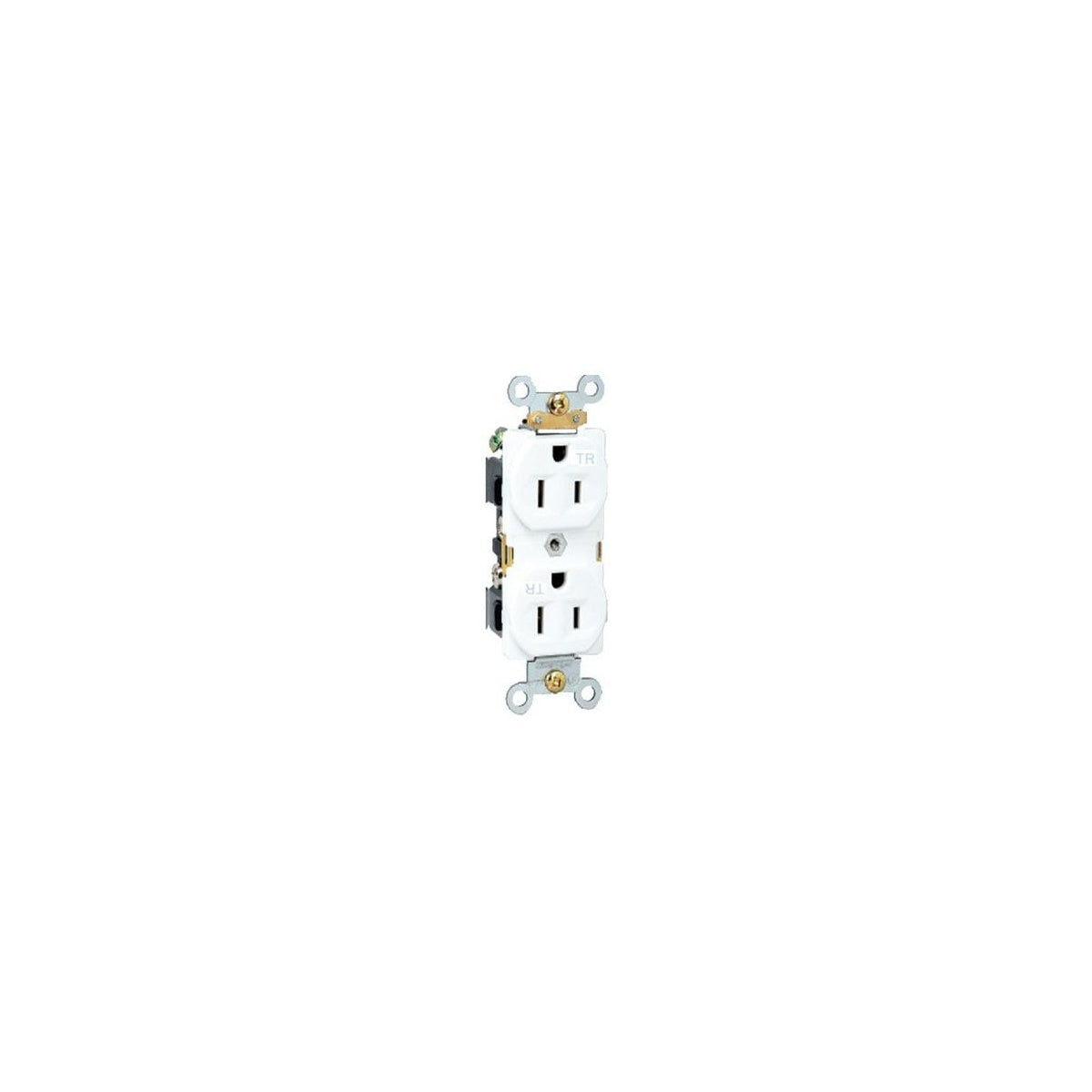

Residential Grade Tamper Resistant Duplex Receptacle White 15A-125V

This residential grade tamper resistant duplex receptacle is designed for safe electrical distribution in residential applications. It provides secure wiring solutions suitable for electrical distributors and lighting solutions suppliers, ensuring compliance with safety standards through its tamper resistant design. This receptacle supports 15 amperes at 125 volts and is ideal for use in wire and cable installations requiring reliable tamper resistant protection.

Specifications

• Amperage: 15 amperes
• Voltage: 125 volts
• Color: White
• Product Weight: 0.2100 lbs
• UL 94V-2 Flame Rating
• Temperature Rating: -40°F to 167°F
• Accepts #12 or #14 Stranded or Solid Copper (Push-In #14 Solid Only)
• 2 Pole 3 Wire Configuration
• Back & Side Wired
• Green Hex-Head Ground Screw
• Manufacturer Part #: 81951

Features

• Tamper resistant design with built-in protective shutter mechanism to prevent insertion of foreign objects
• Made of GE Lexan with steel mounting strap for durability
• Large head captive tri-combination screws for secure wiring
• Washer type break off plaster ears for flexible installation
• Clear visible "TR" marking on face for easy identification
• Brass strap self-grounding clip

Downloads & Links

• Spec Sheet
