Description

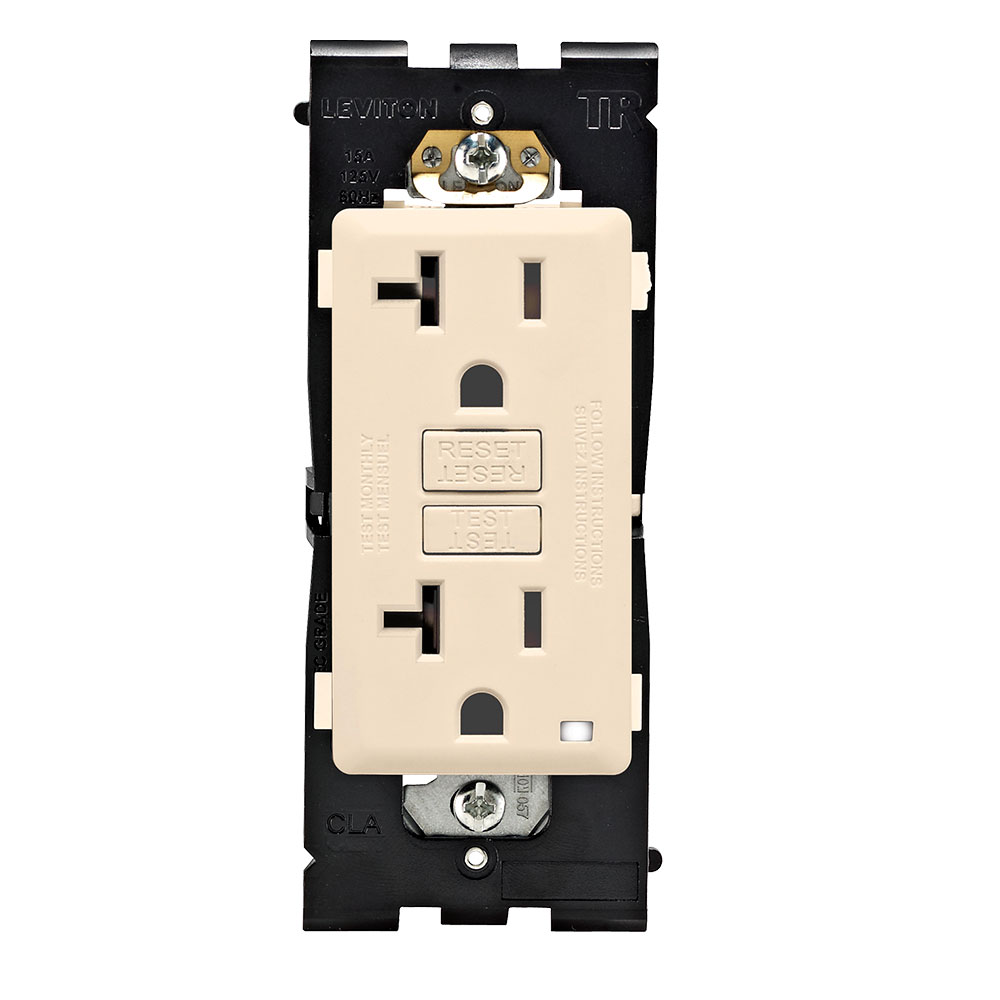

Renu 20A Tamper-Resistant Self-Test SmartlockPro GFCI Receptacle – GFCI Outlet
The Renu 20A Tamper-Resistant Self-Test SmartlockPro GFCI Receptacle by Leviton is a commercial-grade electrical outlet designed to provide ground fault protection in commercial and residential wiring applications. This device quickly interrupts power in the event of a ground fault to prevent electrical shock hazards. It is suitable for use by electrical distributors and lighting solutions providers seeking reliable wire and cable accessories or switchgear supplier components that comply with electrical safety standards.
Specifications
- Amperage: 20 amperes
- Voltage Rating: 125 Volt
- NEMA Configuration: WD-6
- Grade: Commercial
- Number of Poles: 2
- Number of Wires: 3
- Body Material: Polycarbonate
- Face Material: Thermoplastic
- Color: Gold Coast White
- Grounding: Green Ground Screw
- Dielectric Strength: 1250 volts
- Operating Temperature: -35 degrees Celsius
- Flammability Class: Rated HB or Better UL94
- Manufacturer: Leviton
- Country of Origin: China
- Manufacturer Part Number: RGF20-GC
- Product Weight: 13.8 oz
Features

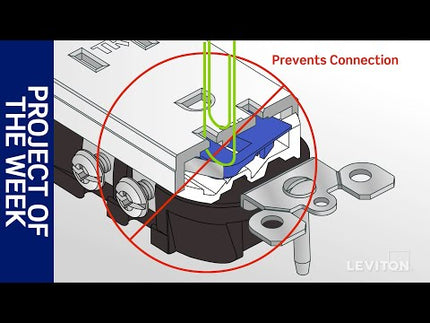

- Tamper-resistant design to prevent unauthorized access and enhance safety
- Self-test feature that periodically verifies GFCI functionality and indicates status via LED
- SmartlockPro technology prevents reset if the device is miswired or has no power
- Side wired and back wired options for flexible installation
- Compatible with copper or copper-clad wire; not for use with aluminum wiring

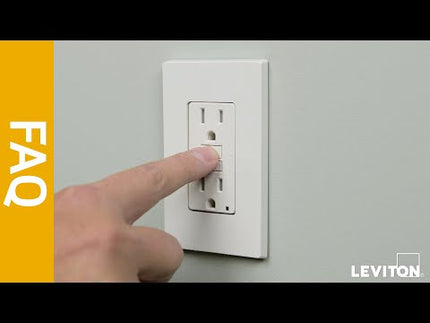

- Includes reset and test buttons for manual testing and resetting
- Complies with UL standards for ground fault circuit interrupters
- Commercial grade for demanding electrical applications
