Description
Recessed Mount Edge Lit Exit Sign Single Sided Legend Red LED Aluminum Housing
This recessed mount edge lit exit sign is designed for reliable emergency egress indication in commercial and institutional buildings. Featuring a compact, low-profile design with premium grade extruded aluminum housing, it is suitable for electrical distributors and lighting solutions providers seeking durable, energy-efficient exit signage. The sign uses ultra bright red LED illumination for clear visibility and includes a self-contained emergency battery backup, making it ideal for wire and cable installations in compliance with safety standards.
Specifications
- Material: High Polish Acrylic Panel, Mirror Divider, Brushed Aluminum Housing
- Lamp Type: LED
- Battery: 6 Volt Rechargeable Lead Acid
- Emergency Power: 90 minutes

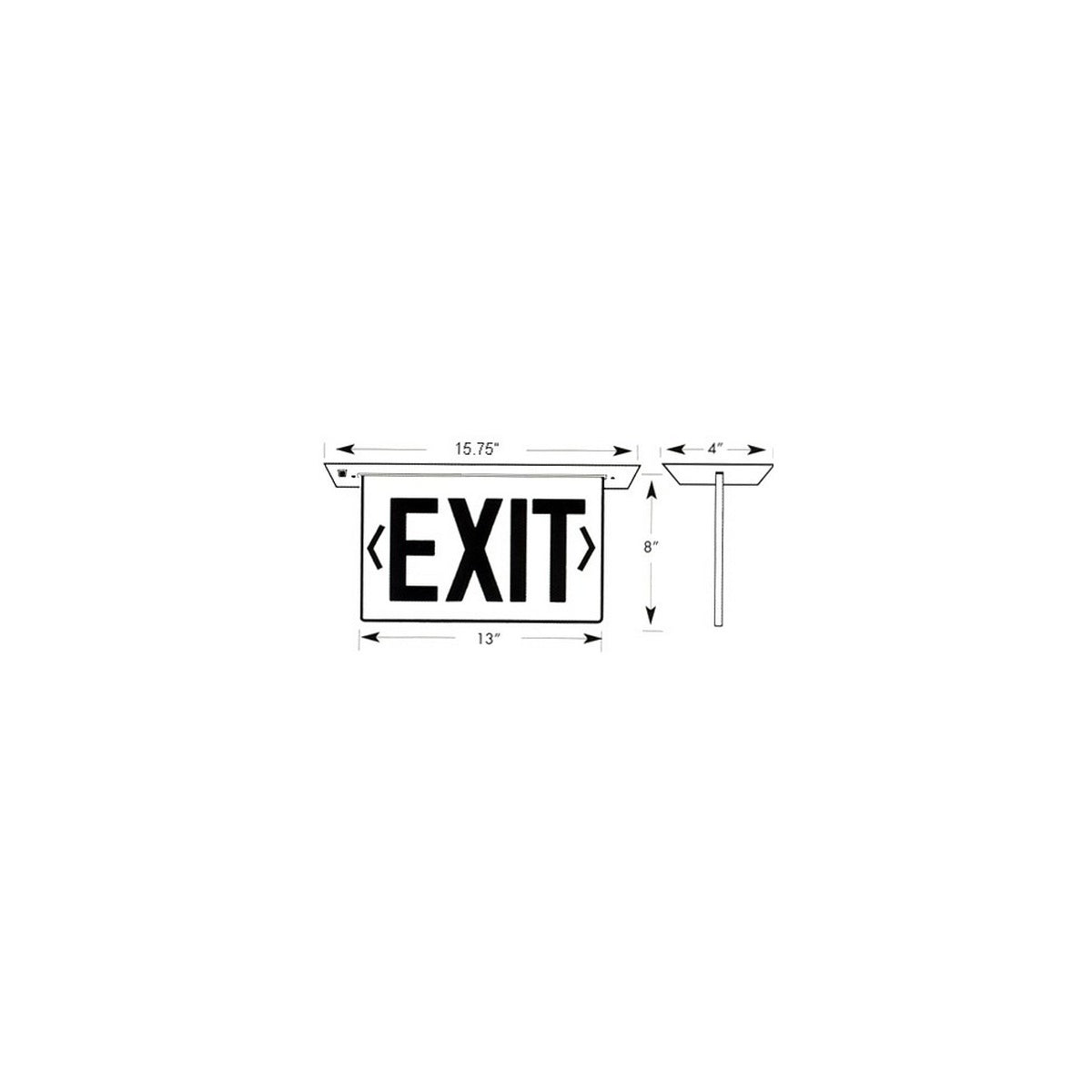

- Length: 12.75 in
- Height: 8 in
- Amperage Rating: 0.148A @ 120V, 0.133A @ 277V
- Wattage Rating: 3.2W @ 120V, 3.0W @ 277V
- Voltage Rating: 120/277 V
- Flammability Rating: UL94V-2
- UL Certification: UL 924
- RoHS Compliant: Yes
Features
- Compact, low-profile recessed mount design
- Premium grade extruded aluminum housing bezel
- Premium high output ultra bright red LEDs
- Energy consumption less than 5 watts
- UV stabilized ultra clear acrylic panel
- Self-contained emergency battery backup with sealed lead acid battery
- Infield installable directional indicators
- Solid state electronics and charger board
- AC on indicator light and test switch
- 120/277 Volt operation
