Recessed Low Voltage Mounting Bracket for Low Voltage Wiring Installation

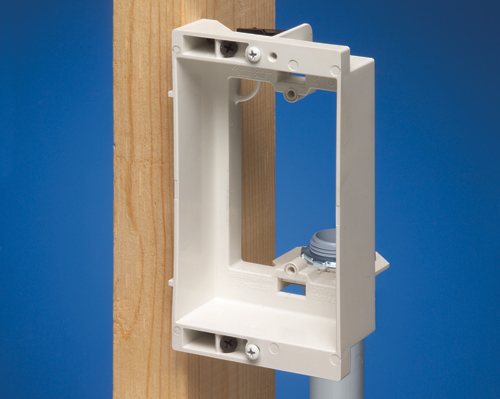

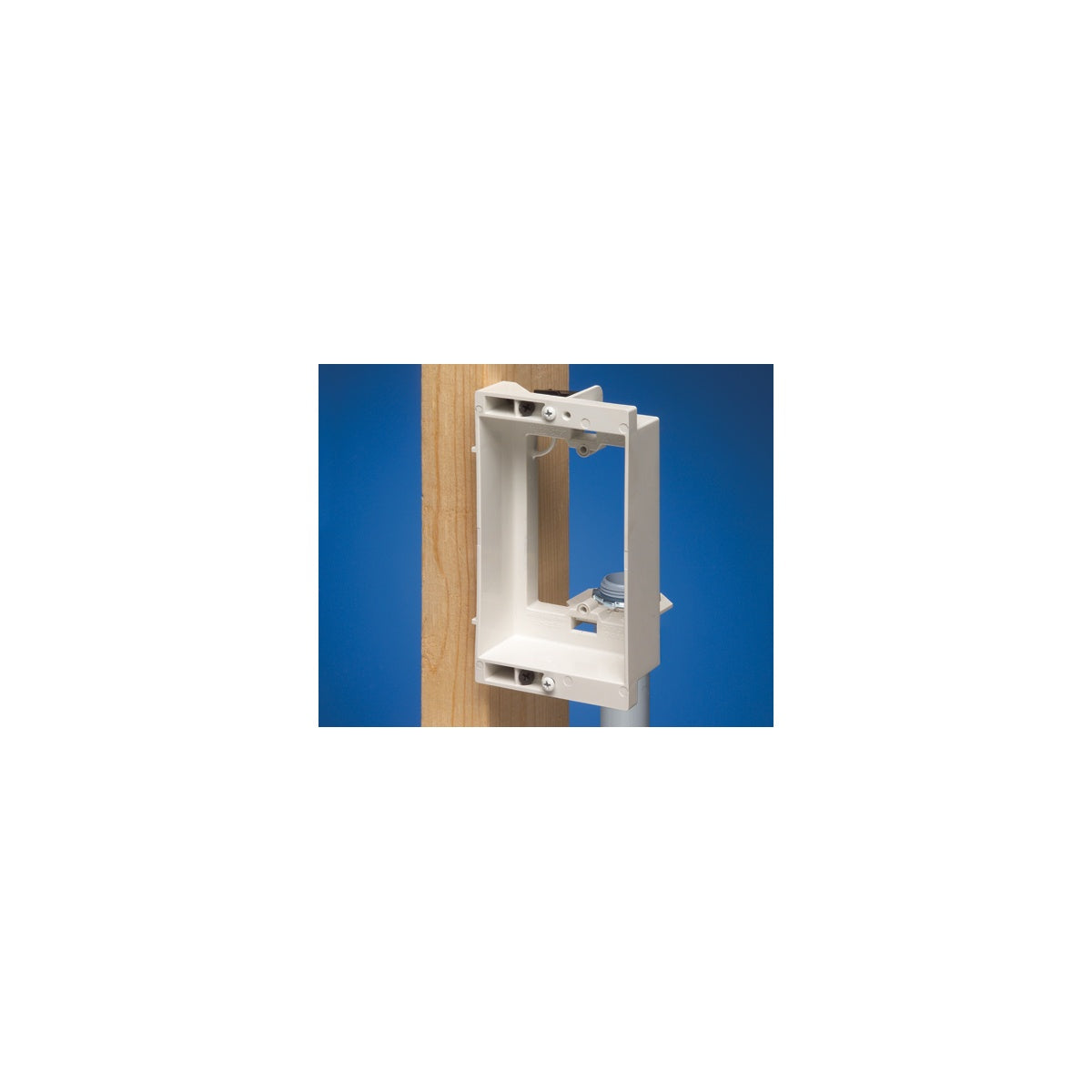

This recessed low voltage mounting bracket is designed for installing low voltage Class 2 wiring in both old and new construction applications. It provides a secure and recessed solution to manage low voltage cables, ensuring connectors do not extend past the wall surface. Ideal for electrical distributors and lighting solutions providers managing wire and cable installations, this bracket supports single gang mounting and is paintable to match wall finishes.

Specifications

• Manufacturer Part #: LVU1W
• Color: White
• Material: Paintable Plastic
• Product Weight: 0.5 lbs
• Dimensions (inches): Height 6.698, Width 4.200, Depth 2.000
• Designed for low voltage Class 2 wiring only
• Single gang size

Features

• Non-metallic construction suitable for retrofit or new construction

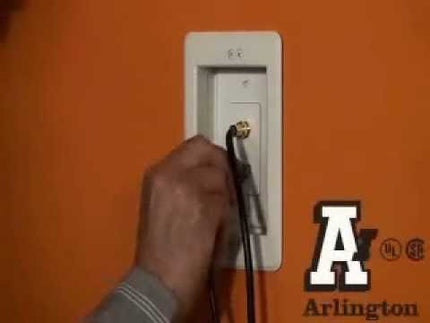

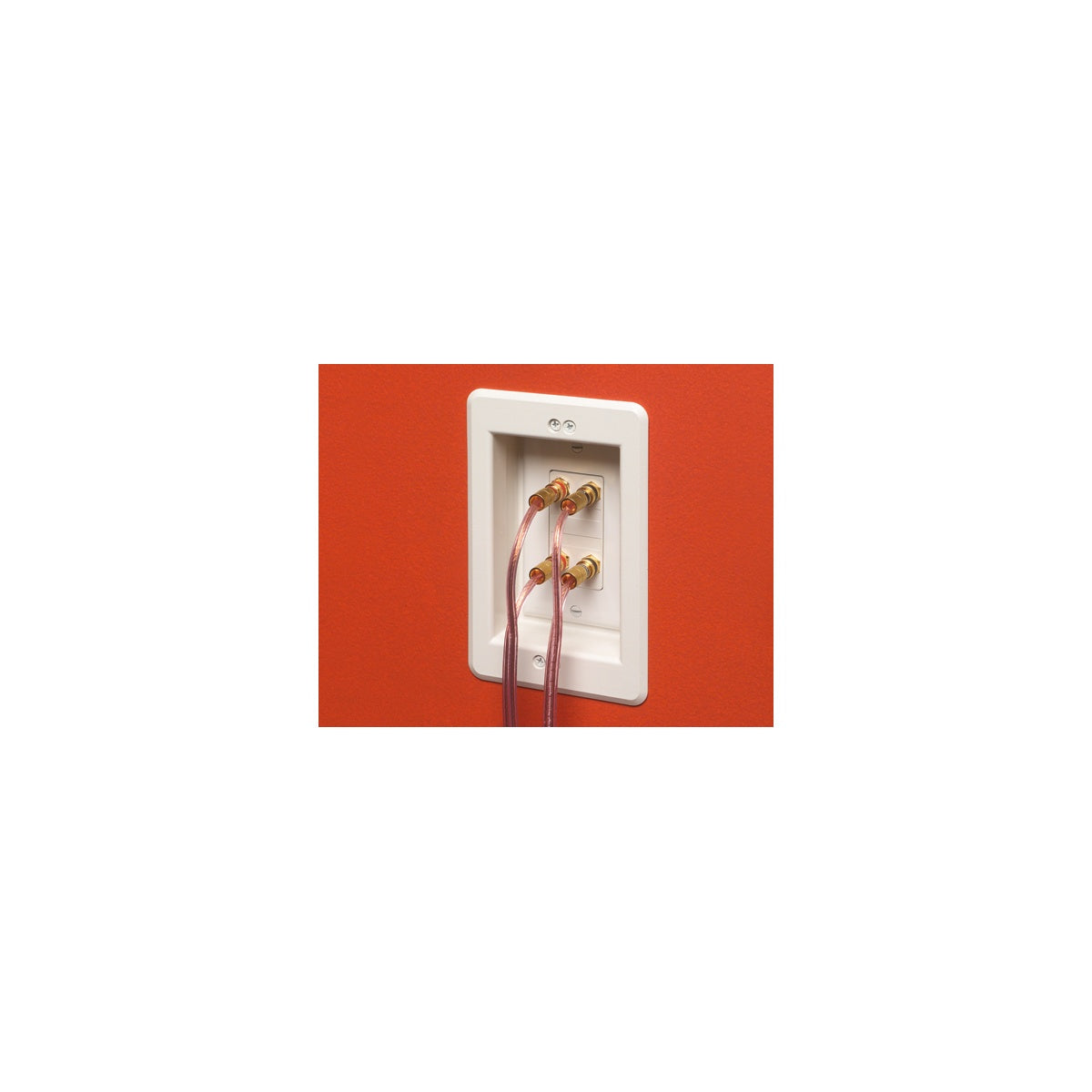

• Recessed design keeps connectors flush with or below wall surface
• Adjustable to fit wall thicknesses from 1/4" to 1-1/2"
• Mounting wings secure bracket firmly against the wall when screws are tightened
• Includes loops for cable tie-off, two attachable knockouts (3/4" and 1"), one device plate, one trim plate, and four screws
• Paintable white finish allows seamless integration with wall decor
