Recessed Indoor InBox for New & Retrofit Construction, Single Gang - Recessed Electrical Box

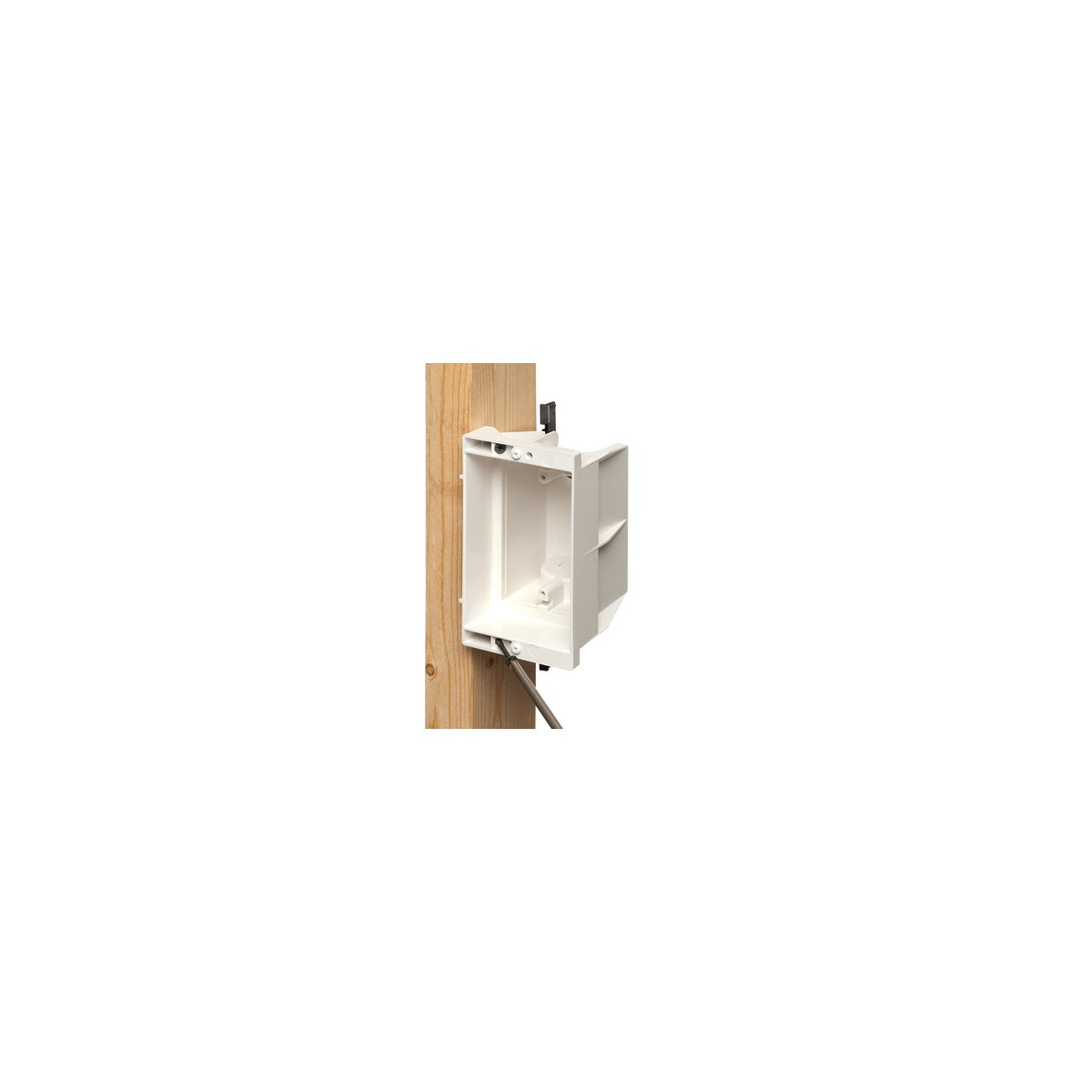

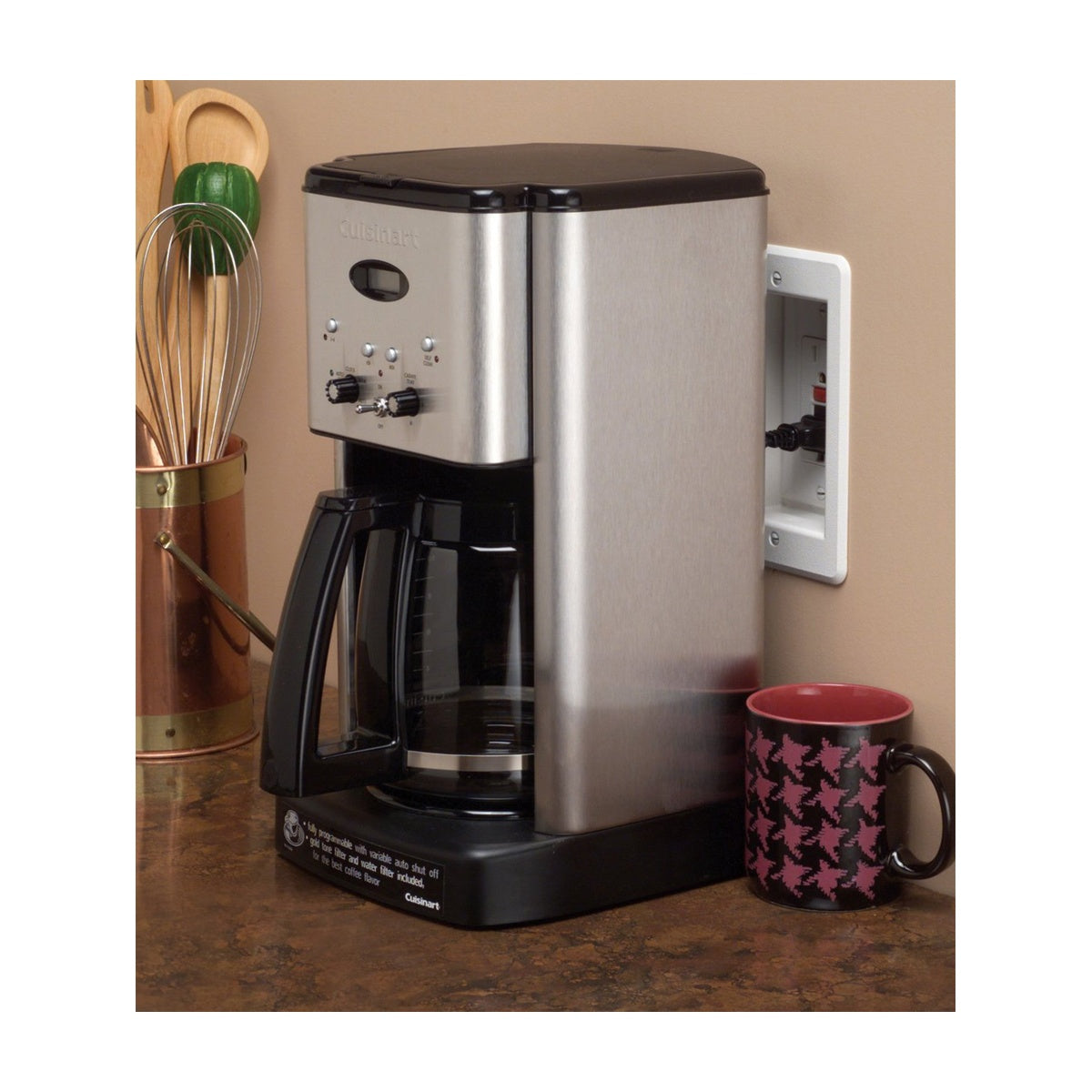

The Arlington Recessed Indoor IN BOX‚Ñ¢ DVFR1W is a non-metallic recessed electrical box designed for new and retrofit construction applications. It enables flush-to-the-wall mounting of electrical devices, allowing items such as plasma or LCD TVs, furniture, or countertop appliances to be positioned closer to the wall. Ideal for use by electrical distributors and lighting solutions providers, this single-gang box supports power or low voltage applications and helps maintain a clean, streamlined installation without plugs extending beyond the wall surface.

Specifications

• Manufacturer: Arlington Industries
• Manufacturer Part #: DVFR1W
• Color: White
• Material: Plastic
• Product Weight: 0.6140 lbs
• UPC: 018997143303
• Dimensions (inches): A - 4.200, B - 6.698, C - 3.875
• Volume: 21.0 cu. in.
• UL Listed with 2-hour fire rating
• Includes NM94 cable connector, mounting screws, installation screws, trim plate, and face plates for duplex and GFCI devices

Features

• Recessed design allows furniture or appliances to be placed closer to the wall
• Plugs remain inside the box, avoiding extension past the wall surface
• Textured, paintable trim plate for aesthetic integration
• Mounting wings hold the box securely against the wall when screws are tightened
• Suitable for both power and low voltage applications
• Positioning tabs accommodate 1/2" or 5/8" drywall thickness for proper installation
• Horizontal or vertical mounting options
• CSA certification with grounding lug available
