Features

• Recessed 4" Round Floorbox

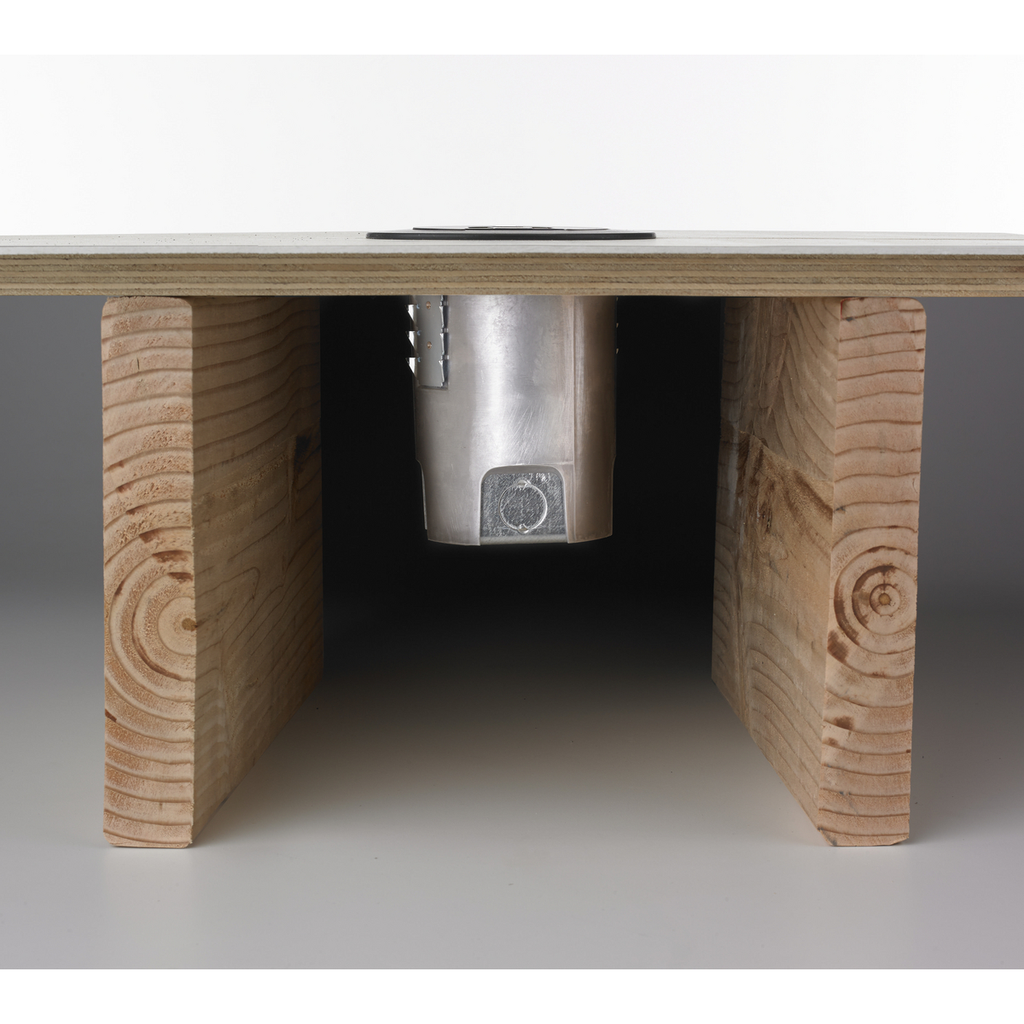

• For Use In Raised Access or Wood Floors
• Mounts in Floors 1.00" to 2.50" thick
• Kit includes (1) AFBS1R4BASE Box, (1) AFBS1R4CVRBRS Cover
• Painted Cast Aluminum Box; Low Profile Cover

Specifications

• Country of Origin: United States
• Application - For Use On: Raised Access; Wood
• Cover Shape: Round
• Width: 6.600 in
• Each - Width: 6.600 in
• Industry Standard(s): cULus;UL514
• Mounting Method: Drop-Into Floor
• Size: 4 Inch Round
• Application: For Use with Raised Access Floor Boxes
• Cable Entry: (2) Egress Doors
• Color: Cover;Brass Finish
• Height: 5.65 in
• Knockouts: 4) 1/2", 1) 1/2"- 1"
• Mounting: Mechanical Mount
• Special Features: Painted Cast Aluminum Box; Low Profile Cover
• Standard: cULus;UL514
• Sub Brand: Raised Access/Wood Recessed Floor Boxes
• Type: Recessed Access Floor Box and Cover
• Finish Type: Brass
• Mounting Type: Mechanical Mount
• Class Code: A36
• Description - Invoice: 4" AFBS1R4BASE WITH BRASS COVER
• Freight Class Code: 06168002
• Harmonization Code: 7616995190
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A36A340
• Construction: Fabricated
• Material: Composite
• Series: Recessed Round - AFB Series
• Base Unit of Measure: EA
• BOX SIZE: 9.400x7.400x6.600 (in)
• Carton - SCC-14 Next Lower Level Sub Pack: 00783585545257
• Case Weight: 3.350 lb.
• Pallet Height: 47.000 in
• Pallet Length: 48.000 in
• Pallet Weight: 653.250 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Contact Manufacturer
