Recessed 4" Series, (1) S1R4PTFIT fitting, (1) S1R4CVRALU, (1) S1R4SPQUAD, (1) S1FRPTJB Hubbell Junction Box
SKU: #151924
Part: #S1R4PTQUADALU
UPC: 783585446202
Recessed 4" Series, (1) S1R4PTFIT fitting, (1) S1R4CVRALU, (1) S1R4SPQUAD, (1) S1FRPTJB Hubbell Junction Box
SKU: #151924
Part: #S1R4PTQUADALU
UPC: 783585446202
Description

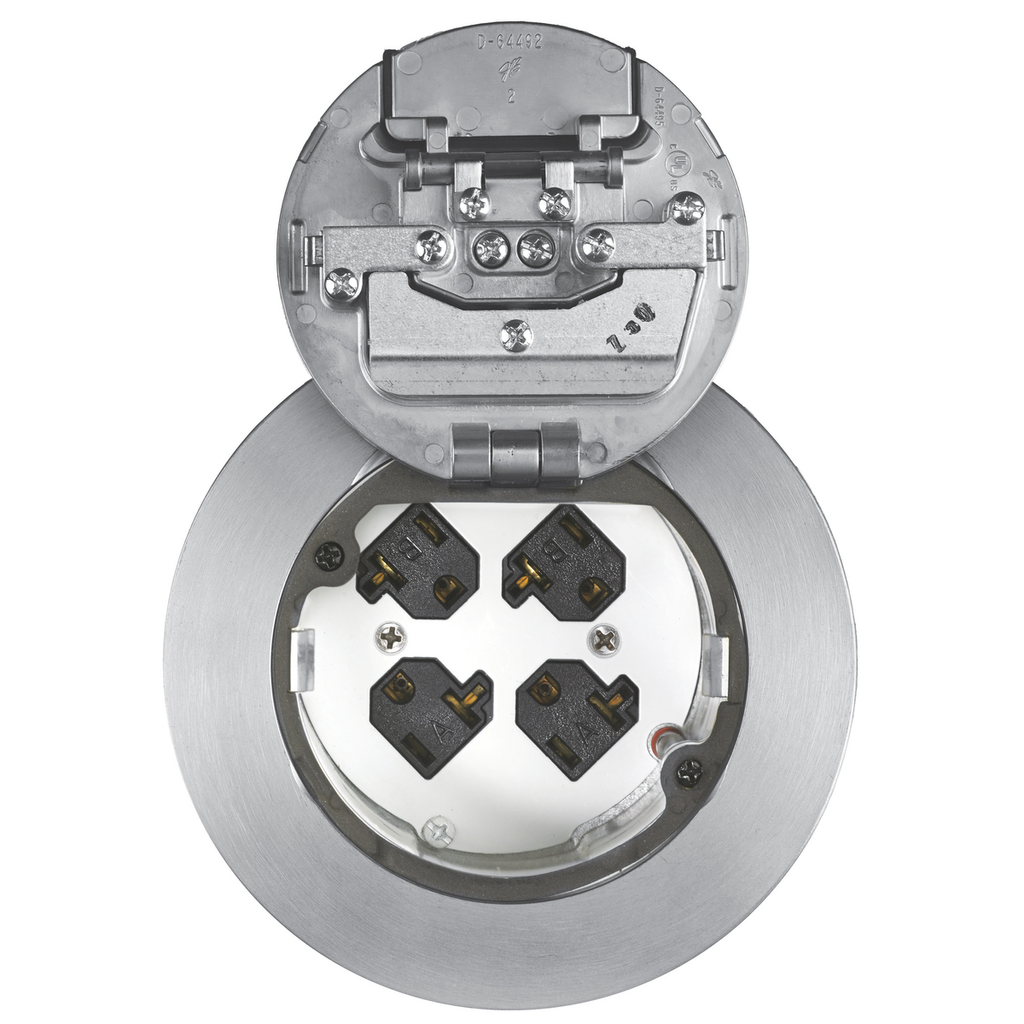

Recessed 4" Series Fire-Rated Poke-Through – Electrical Distributor Solutions
The Recessed 4" Series Fire-Rated Poke-Through by Hubbell Premise Wiring is designed for power distribution in concrete floors, providing safe, recessed connectivity for commercial and institutional applications. Ideal for electrical distributors and lighting solutions providers, this 4" fire-rated fitting supports a quad 20A 125V receptacle with a brushed aluminum cover, enabling flexible wiring for power, data, and AV devices through a 4" core hole installation.
Specifications
- Name: Recessed 4" Series, (1) S1R4PTFIT fitting, (1) S1R4CVRALU, (1) S1R4SPQUAD, (1) S1FRPTJB Hubbell Junction Box
- Application: 4" Fire-Rated Poke-Through Series
- Material: Fabricated
- Finish: Brushed Aluminum Cover
- Color: Aluminum
- Width: 9.1 in
- Mounting: 4" Core Hole
- Knockouts: (2) 1/2" NPT K/Os, (1) 3/4" NPT K/Os
- Cable Entry: Through Cover
- Number of Outlets: (1) Quad 20A 125V Receptacle
- Cubic Capacity: 23.5 Cubic Inches
- Product Weight: 6.3 lbs
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer: Hubbell Premise Wiring
- Manufacturer Part #: S1R4PTQUADALU
Features
- Maintains concrete floor fire rating up to two hours
- Durable die-cast aluminum cover with a 1,000 lb static load rating
- Low profile flange (0.15 in) exceeding ADA requirements
- Recessed connections with a 3-inch deep user access chamber
- Easy mount device plates, field configurable for power, data, and AV
- Hide-away egress door that folds under the cover while in use
- Works with time- and labor-saving 4" concrete pre-pour tube
- Includes Hubbell junction box (27 cubic inches capacity)
- Compatible with Hubbell keystone jacks and third-party Ortronics® TracJack® sub-plates
- UL514A compliant, ScrubShield® technology for scrub water exclusion
