Ready Split Sleeve 1" Split Firestop Sleeve
SKU: #50040
Part: #FSR100
UPC: 730573210000
Ready Split Sleeve 1" Split Firestop Sleeve
SKU: #50040
Part: #FSR100
UPC: 730573210000
Total Price: $112.53 per each Sold in increments of 1 each
Next day delivery
Description
Ready Split Sleeve 1" Split Firestop Sleeve for Firestopping
The Ready Split Sleeve 1" Split Firestop Sleeve by Specified Technologies is a UL Certified firestop solution designed for existing cable penetrations through walls and floors. It provides effective protection and support for electrical, communication, and control cables in both rated and non-rated barriers. This product is suitable for common construction types including concrete floors, concrete walls, concrete block walls, and gypsum board/stud wall assemblies up to 10" thick. It is an essential component for electrical distributors and switchgear suppliers seeking reliable firestopping and cable protection solutions.
Specifications
- Application: Common constructions including concrete floors, concrete walls, concrete block walls, and gypsum board/stud wall assemblies up to 10" (250 mm) thick
- Material: Thick Steel (0.059" zinc plated steel per datasheet)
- Color: Silver
- Dimensions: Length 14 in, Width 3.5 in, Height 1 in
- Fire Rating: 1-2 HR (UL Certified per ASTM E814 (UL1479) and CAN/ULC-S115)
- Mounting: Walls or Floors
- Opening Type: Electrical Through-Penetrations, Cable Through-Penetrations
- Installation Type: Screws
- Product Weight: 1.43 lbs
- Country of Origin: United States (Made in USA)
- Manufacturer Part #: FSR100

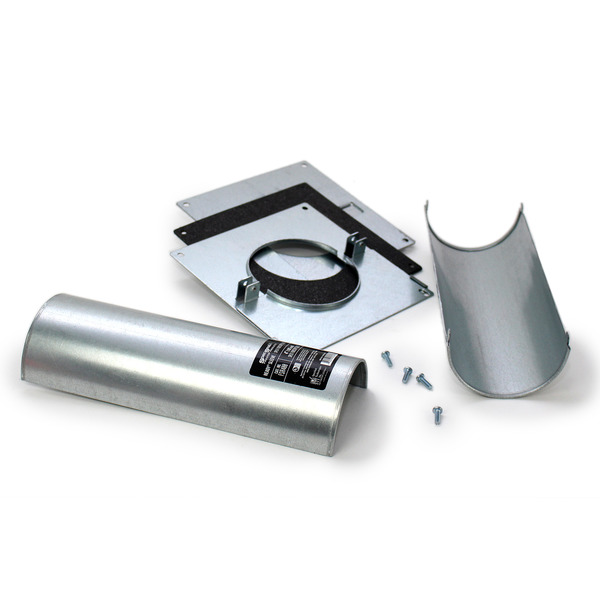

- Included: Complete Kit - Sleeve, mounting hardware, firestopping materials
Features

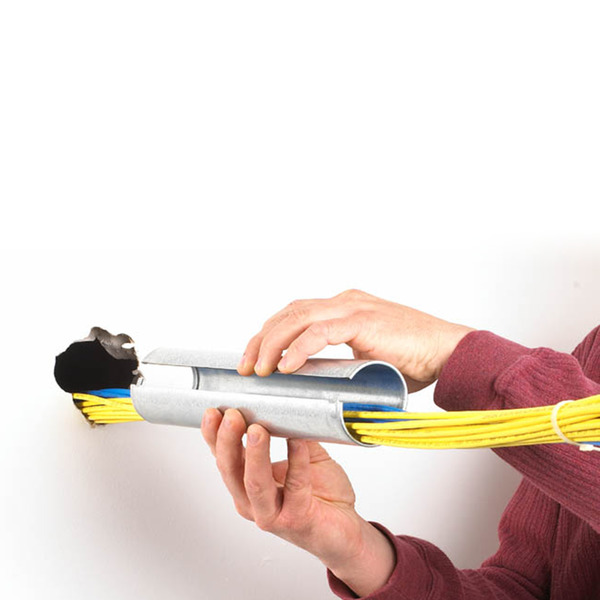

- Split design allows installation around existing cables without cutting
- Includes two preformed steel sleeve halves with rolled edges to eliminate sharp edges
- Steel escutcheon plates with intumescent gaskets provide factory-supplied firestop sealing

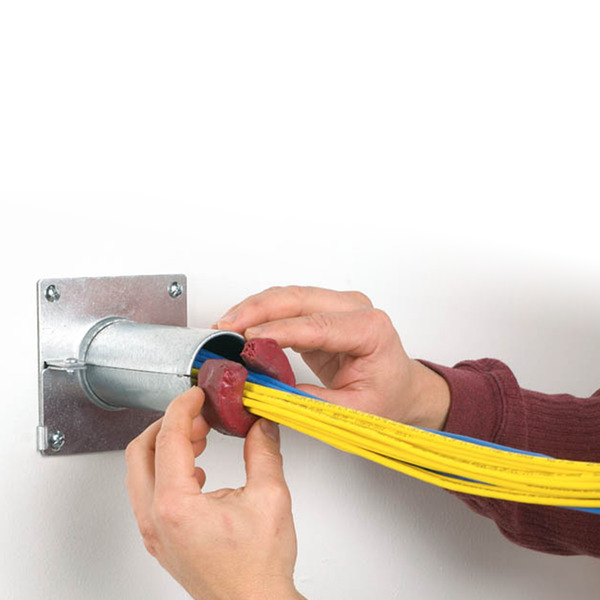

- Includes SpecSeal SSP Firestop Putty for sealing sleeve ends to 1" depth
- UL Certified and code compliant for rated and non-rated barriers
- Oversize openings UL tested for larger and irregularly shaped penetrations
- Locks into place without the need for support struts or clamps
- Putty seal impedes passage of fire, smoke, superheated gases, particulate dust, and minimizes noise transmission
- Compatible with EMT accessories such as grounding bushings
- Ready to install with no cutting required and no waste
