Features

• Wire Stripper, Wire Crimper, Wire Cutter for CAT3, CAT5e, CAT6 and flat-satin voice cable
• Crimps RJ45 and RJ11/12 modular connectors
• Full-cycle ratchet mechanism ensures complete connector termination
• Compact, ergonomic design for natural, single-hand operation
• Direct lateral crimp action provides more even, precise contact termination across all pins

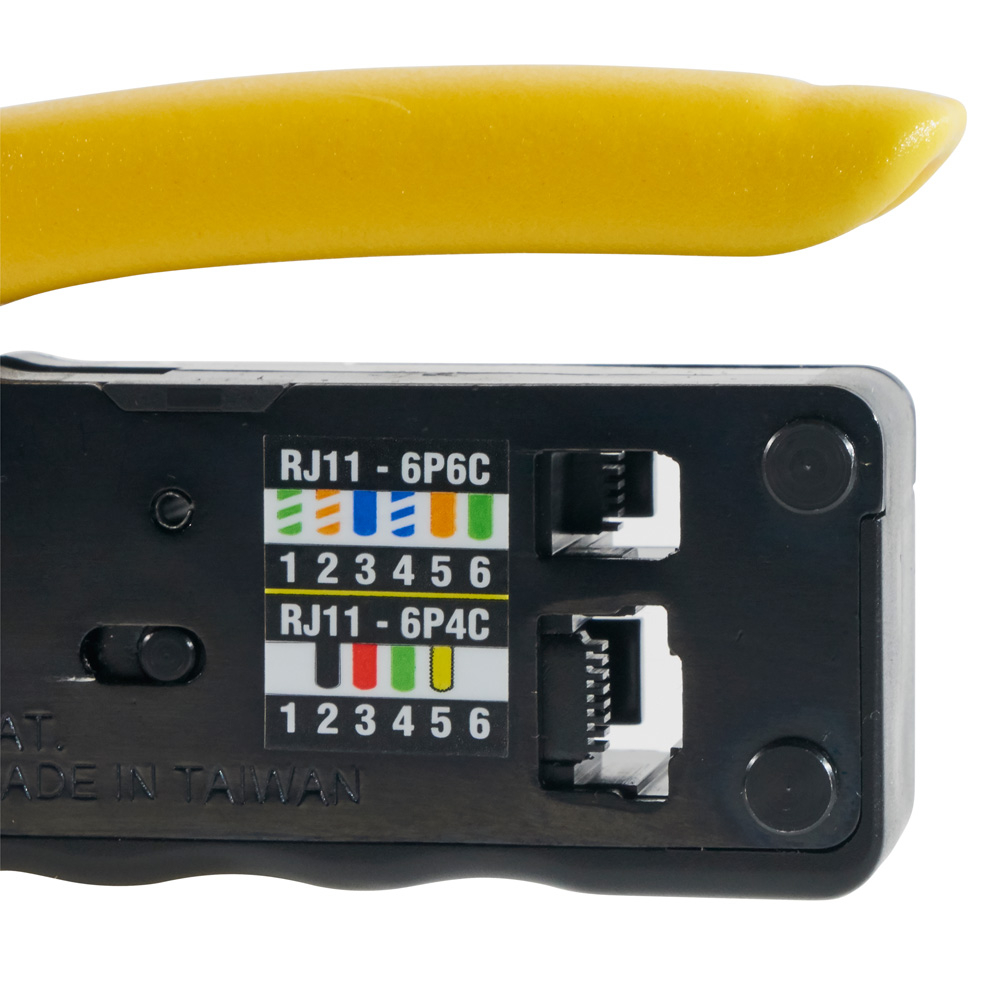

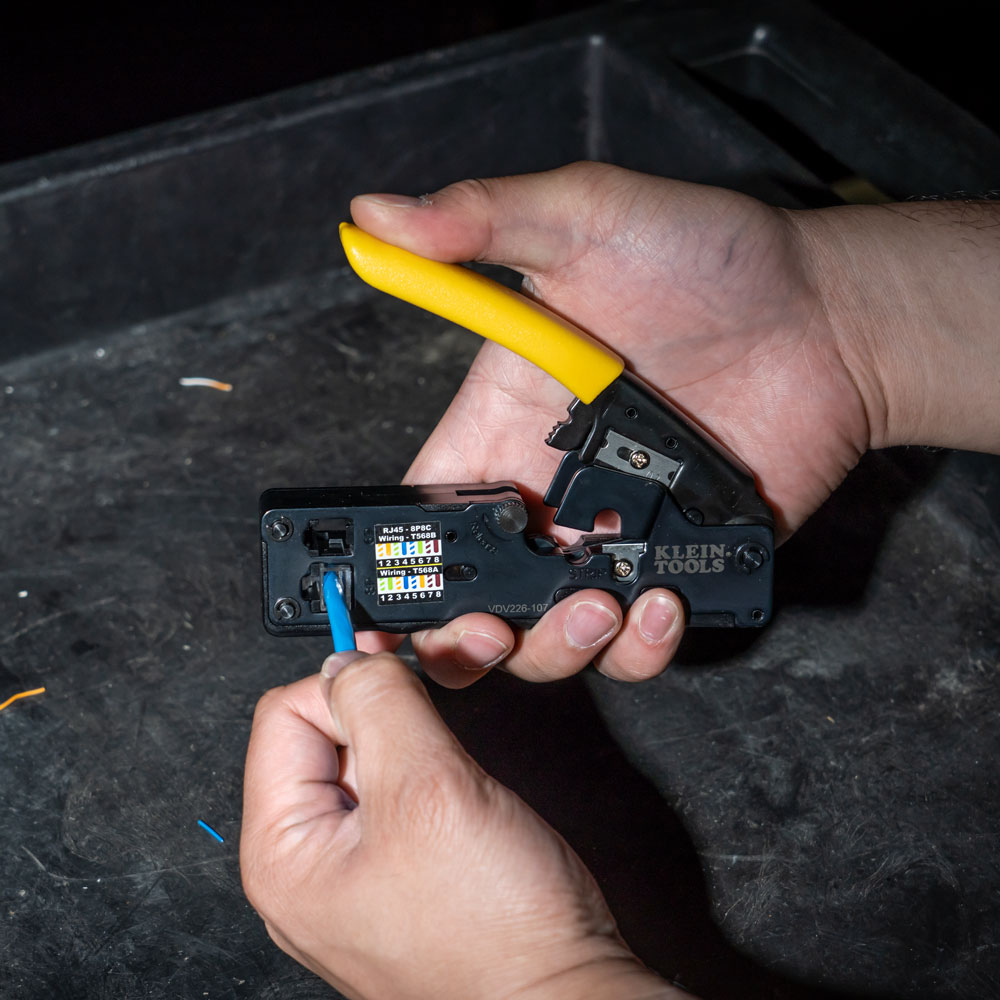

• Quick reference connector wiring diagrams provided on the tool
• Not for use with AMP® connectors
• AMP® is a registered trademark of TYCO, Inc.

Warnings

• Always wear approved eye protection.
• NOT insulated. Will NOT protect against electrical shock.
• Never use on or near live electrical circuits.
• Read carefully and understand instructions before using this tool.

Specifications

• Overall Length: 5.25" (13.3 cm)
• Connector Type: RJ11, RJ12 and RJ45 Standard
• Type: Crimper
• Handle Color: Yellow/Black
• Application: Cable Connection
• Position/Pair/Conductors: 6-Position, 2 Pair/4-Conductor; 6-Position, 3-Pair/6-Conductor; 8-Position, 4-Pair/8-Conductor
• Cuts & Strips: STP/UTP Paired-Conductor Data Cable; Flat-Satin Phone Cable
• Material: Steel with Black Oxide
• Cable Type: CAT3, CAT5e, CAT6
• Height: 1.5000 in
• Width: 4.7500 in
• Depth: 5.2500 in
• Weight: 0.7000 lbs
