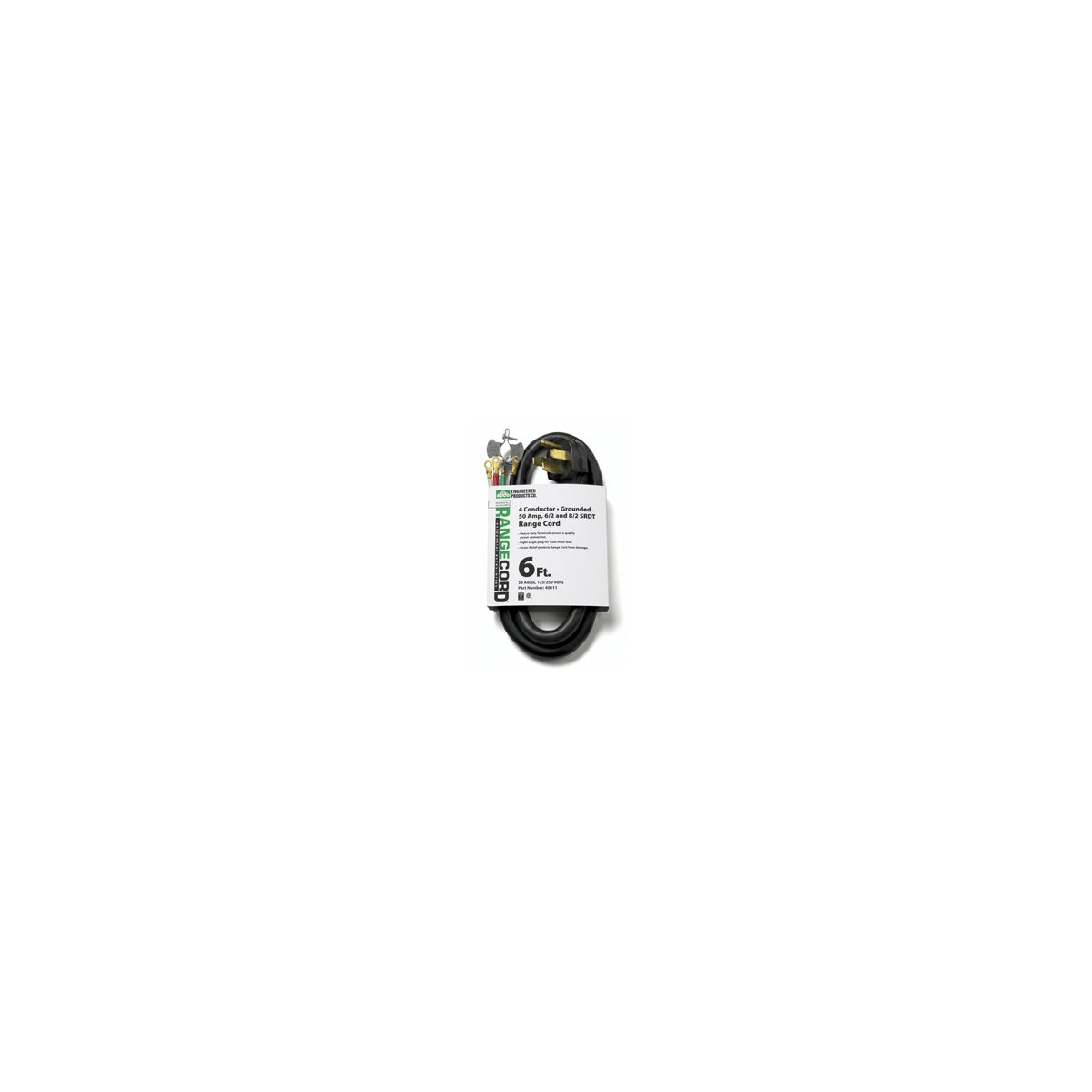

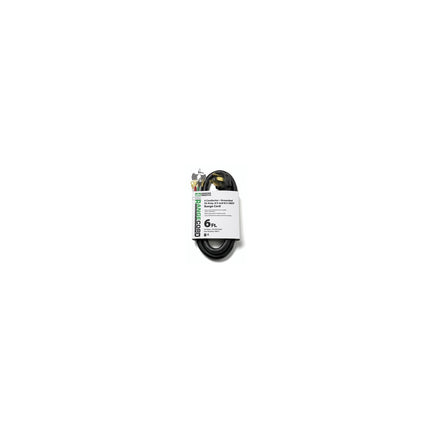

Range Cord, Black, 6', 50A, 2-6 & Wires, 125/250V – Electrical Distributor Range Cord

This 6-foot range cord is designed for residential applications to safely connect kitchen ranges, wall-mounted ovens, and clothing dryers. It complies with the 2020 National Electrical Code requirements, featuring a 4-wire configuration suitable for homes built after 1996. Engineered for reliable electrical connections, it is ideal for electrical distributors and switchgear suppliers providing lighting solutions, wire and cable, and appliance wiring products.

Specifications

• Manufacturer: Engineered Products Company
• Manufacturer Part #: 40011
• Application: Residential
• Cord Length: 6 feet
• Cord Color: Black
• Voltage: 125/250 Volts
• Maximum Amperage: 50 Amps
• Number of Conductors: Four (4) Wire Conductors
• Wire Gauge Conductors: 6/2 and 8/2 SRDT
• Outer Jacket: Premium Grade PVC Insulation
• Conductor Insulation Material: PVC
• Cord Orientation: Male, Right Angle
• Strain Relief Clamp: Included
• Receptacle Connections: Captive Ring Terminal
• Dimensions: 0.75 in (Width) x 0.75 in (Height)
• Product Weight: 3.06 lbs
• Certifications: US/Canadian Standards Association

Features

• Complies with the 2020 National Electrical Code for safety and performance
• Standard high-performance right-angle plug with straight blades for reliable residential connections
• Heavy-duty ring terminals securely connect to appliance receptacle bolts or screws
• Two-piece strain relief clamp expedites installation and protects the power cord from damage
• Designed for use with kitchen ranges, wall-mounted ovens, and clothing dryers
