RAIL95NW/D10 High Bay LED Lighting

The RAIL95NW/D10 is a high-efficiency, high-output LED high bay lighting fixture designed for commercial and industrial applications. It provides reliable, energy-efficient illumination suitable for large spaces, making it an ideal solution for electrical distributors and lighting solutions providers seeking durable, maintenance-free lighting. This fixture is compatible with 0-10V dimming controls and is suitable for use in ambient temperatures up to 122°F, supporting wire and cable installations with secure mounting options.

Specifications

• Manufacturer: RAB
• Input Wattage: 93 watts
• Lumens: 12,255 lumens
• Efficacy: 131 lumens per watt
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 82 CRI
• Lens Material: High-transmittance Polystyrene
• Product Weight: 10.2 lbs
• Maximum Ambient Temperature: 122 degrees Fahrenheit (suitable for 24/7 use up to 50°C / 122°F)

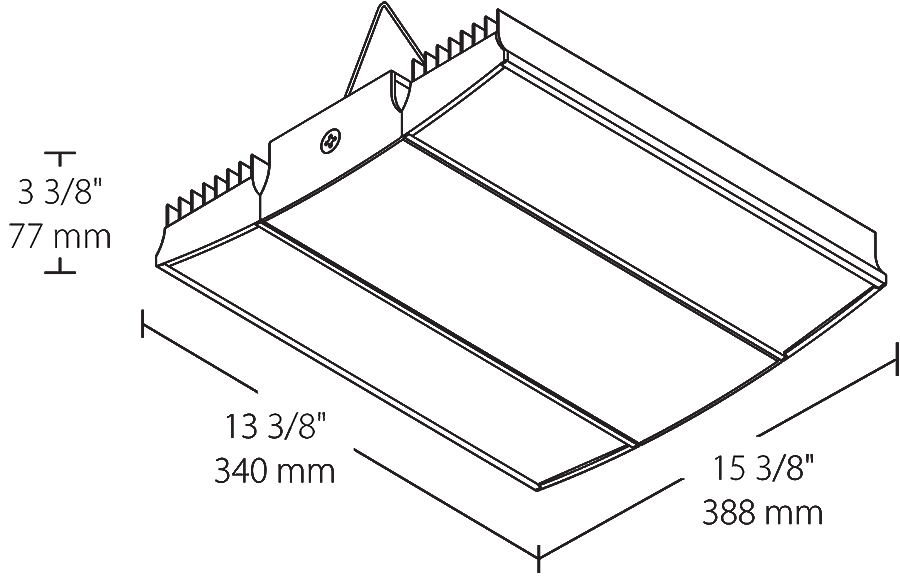

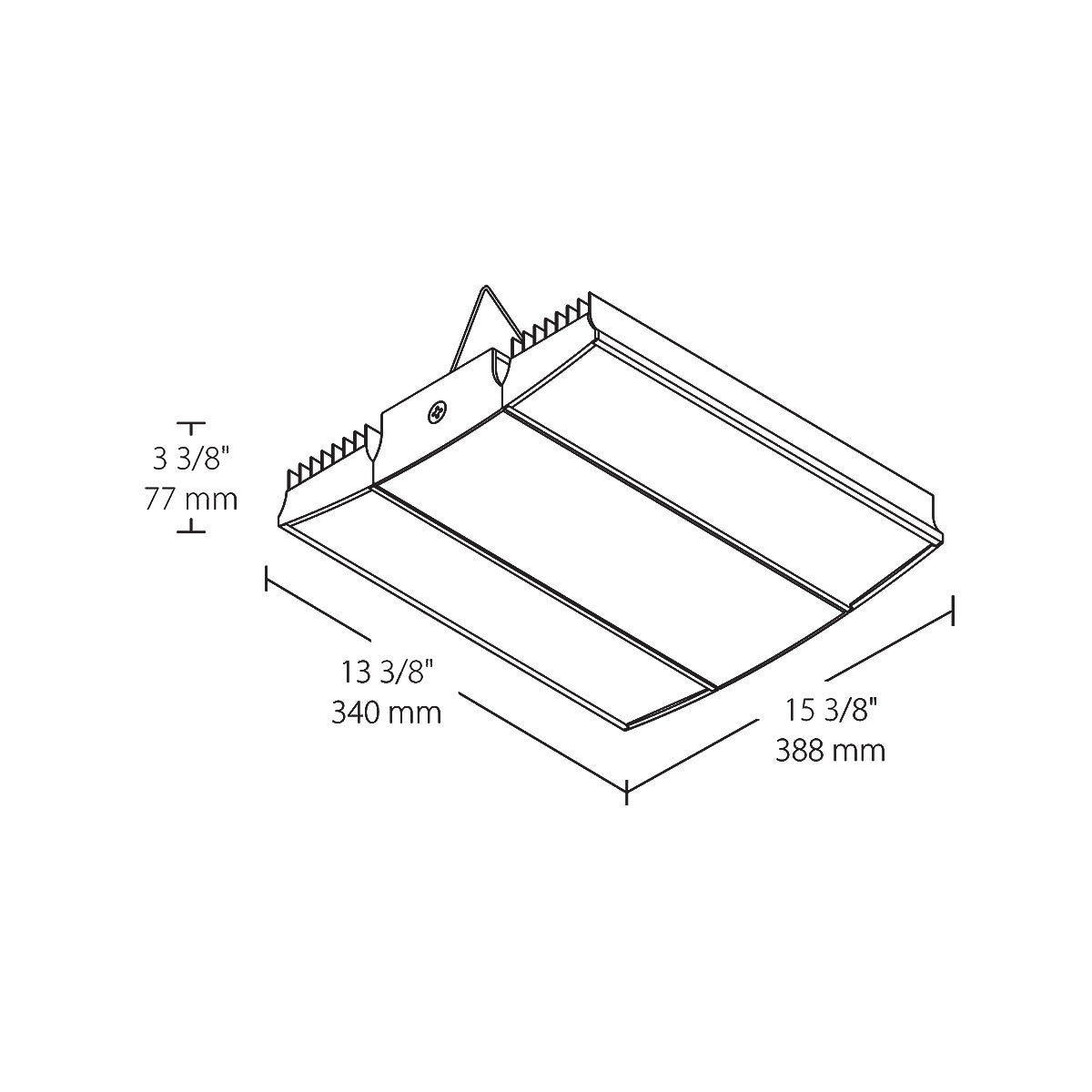

• Dimensions: 15 3/8" (388 mm) length x 13 3/8" (340 mm) width x 3 3/8" (77 mm) height
• Driver Type: Constant Current, 120-277VAC, 50-60Hz, Class 2
• LED Lifespan: 100,000 hours (L70)
• Mounting: V-hooks (chain by others)
• Certification: UL Listed, Suitable for Damp Locations, DLC Listed (DLC Product Code: P2VX5BB9)

Features

• High-efficiency surface-mount LEDs with long life and stable color temperature
• Low-glare design with semi-diffuse lens for comfortable illumination
• 0-10V dimmable driver for variable lighting control down to 10%
• Specular, high-reflectance aluminum reflector with 95% reflectivity
• Replaces traditional 100-250W metal halide fixtures
• Designed for easy installation with V-hook mounting system
• Trade Agreements Act compliant; Buy American Act compliance available upon request
• Suitable for use in demanding environments with high ambient temperatures
• Virtually maintenance-free operation with 100,000-hour LED lifespan

Downloads & Links

• Instructions
• Spec Sheet
• LM79
