RAIL150NW/D10/WS4 High Bay LED Lighting Fixture

The RAIL150NW/D10/WS4 is a high bay LED lighting fixture designed for commercial and industrial applications requiring efficient and reliable illumination. Manufactured by RAB, this fixture is suitable for electrical distributors and lighting solution providers seeking high-performance wire and cable compatible lighting products. It operates with universal voltage input, making it adaptable for various switchgear supplier environments.

Specifications

• Manufacturer: RAB
• Model Number: RAIL150NW/D10/WS4
• Input Wattage: 134 watts
• Luminous Output: 18,839 lumens
• Luminous Efficacy: 140 lumens per watt
• Color Temperature: 4000 kelvins
• Color Accuracy: 82 CRI (Color Rendering Index)
• Lens Material: High-transmittance Polystyrene
• Ambient Temperature Rating: 131 degrees Fahrenheit
• Product Weight: 16.3 lbs

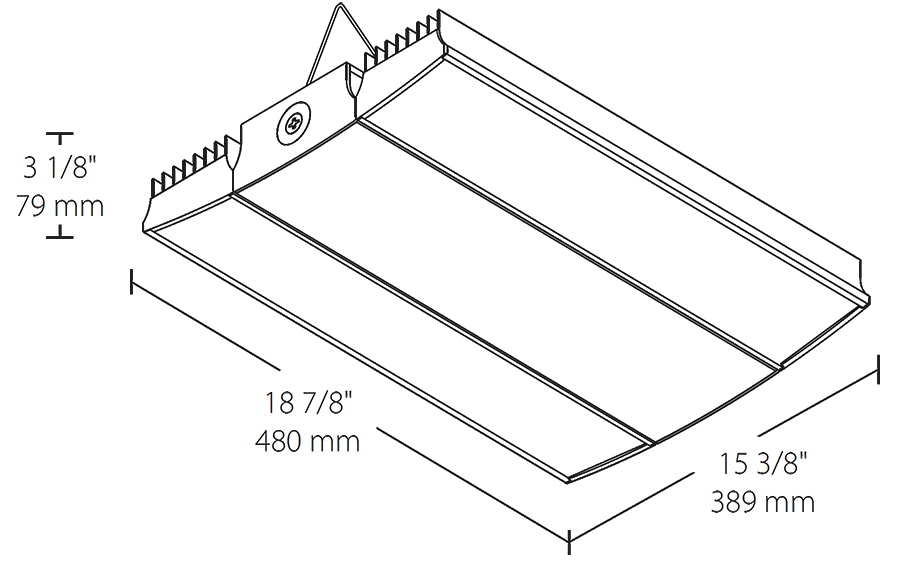

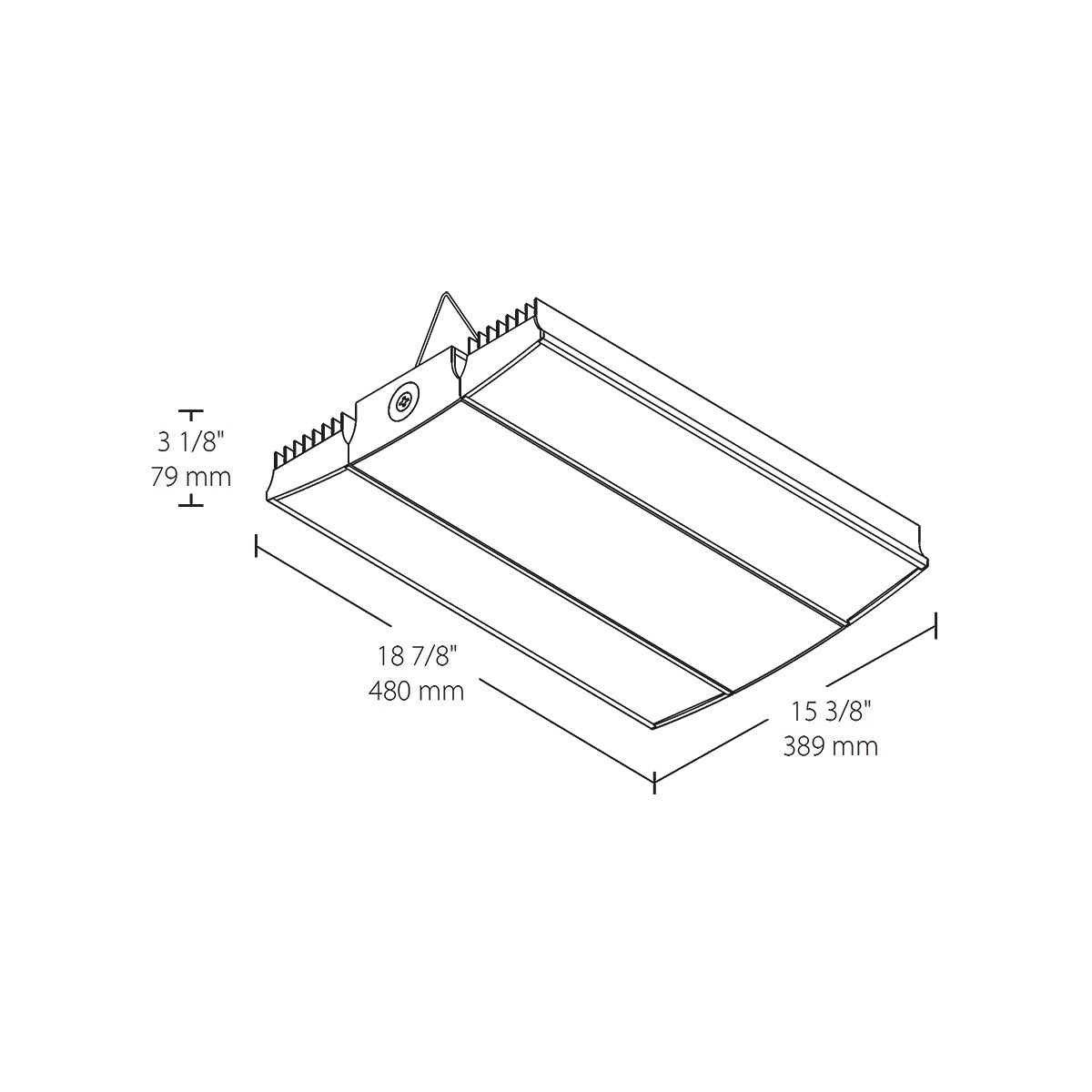

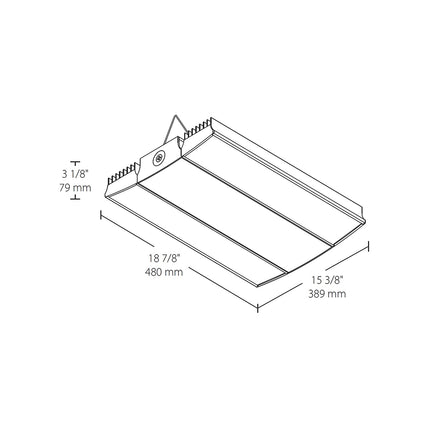

• Dimensions: 18 7/8" (length) x 15 3/8" (width) x 3 1/8" (height)
• UPC: 019813638065

Features

• Universal voltage driver compatible with 120V to 277V, 50/60 Hz operation
• High lumens output with energy-efficient LED technology
• Durable high-transmittance polystyrene lens for optimal light distribution
• Designed for high bay mounting with V-Hook and bracket options for secure installation
• 0-10V dimmable wiring capability for flexible lighting control
• Robust color rendering with 82 CRI for accurate color representation
• Operating ambient temperature up to 131°F for demanding environments
