RAIL150NW/D10/E2 LED High Bay Lighting Fixture

The RAIL150NW/D10/E2 by RAB is a high-performance LED high bay luminaire designed for commercial and industrial applications. It delivers efficient, high-output lighting suitable for warehouses, manufacturing facilities, and large indoor spaces. This lighting solution integrates well with electrical distributors and switchgear suppliers looking to provide reliable, energy-efficient lighting products. The fixture operates on universal voltage ranging from 120V to 277V at 50/60 Hz and features 0-10V dimming capability for flexible lighting control.

Specifications

• Manufacturer: RAB
• Model Number: RAIL150NW/D10/E2
• Input Wattage: 134 watts
• Luminous Output: 18,839 lumens
• Efficacy: 140 lumens per watt
• Color Temperature: 4000 kelvins
• Color Accuracy: 82 CRI (Color Rendering Index)
• Lens Material: High-transmittance Polystyrene
• Ambient Operating Temperature: Up to 131 degrees Fahrenheit
• Product Weight: 26.4 lbs

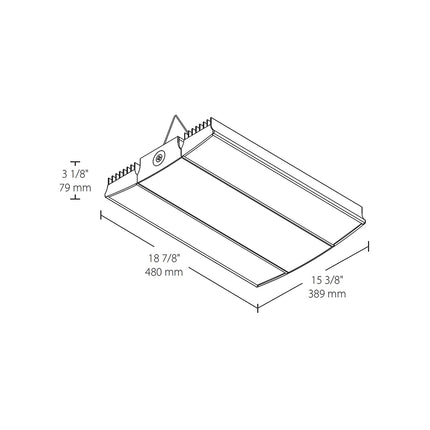

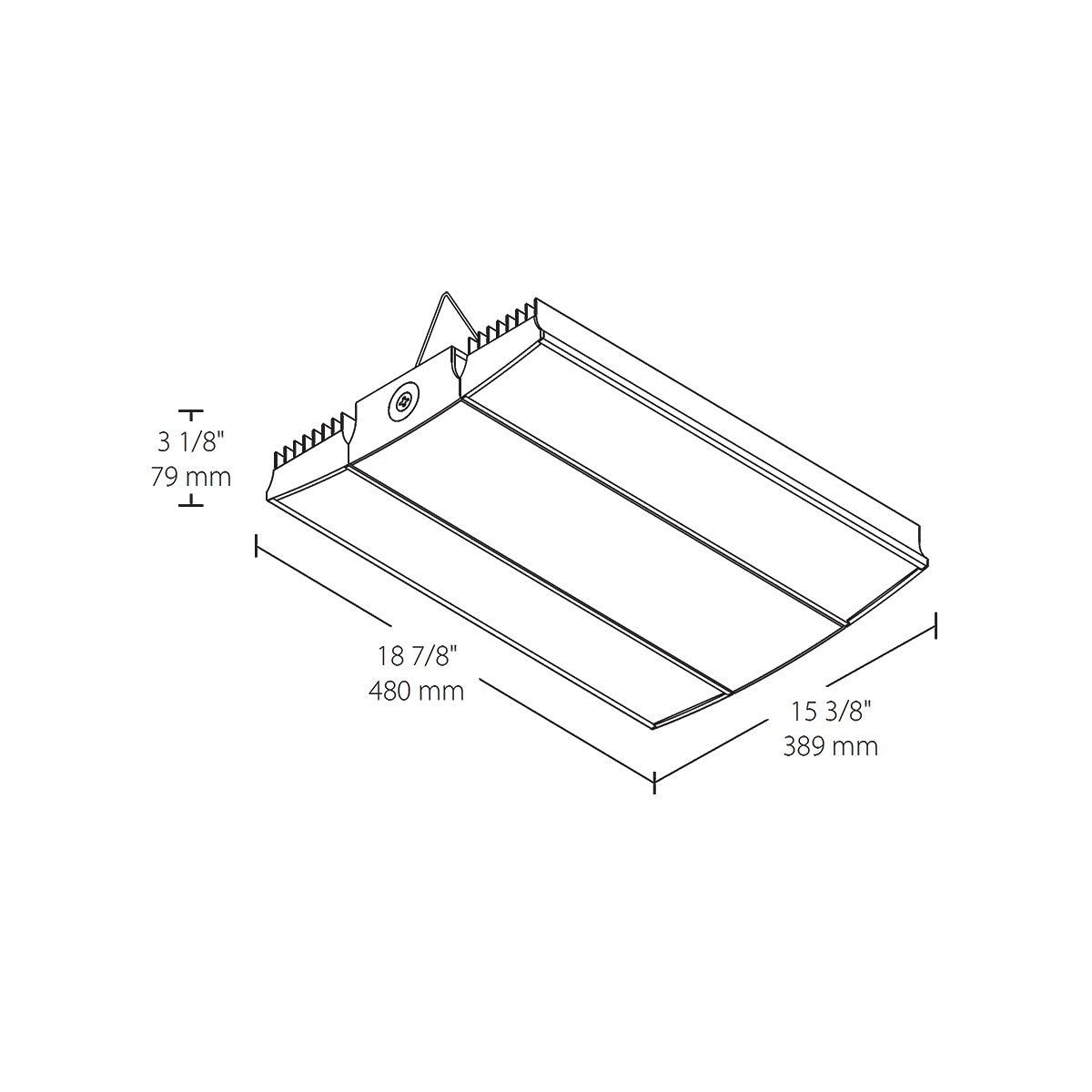

• Dimensions: 18 7/8" length x 15 3/8" width x 3 1/8" height (480 mm x 389 mm x 79 mm)
• UPC: 019813638324

Features

• High lumen output providing bright, uniform illumination for large spaces.
• Energy-efficient LED technology with high efficacy to reduce power consumption.
• Universal voltage driver enabling operation across a wide input voltage range (120-277V).
• 0-10V dimmable driver allowing seamless integration with lighting controls.
• Durable lens made from high-transmittance polystyrene for optimal light distribution.
• Designed to operate in ambient temperatures up to 131°F, suitable for demanding environments.
• Compact and lightweight design facilitating easy installation and maintenance.
