RAIL150NW/D10 LED High Bay Lighting Fixture

The RAIL150NW/D10 by RAB is a high-performance LED high bay luminaire designed for commercial and industrial lighting applications. It delivers efficient, high-output illumination with a lumen output of 18,839 lumens and an efficacy of 140 lumens per watt, making it suitable for warehouses, manufacturing facilities, and large indoor spaces. This fixture operates on universal voltage input from 120V to 277V and is compatible with 0-10V dimming controls, supporting flexible lighting solutions for electrical distributors, lighting solutions providers, and switchgear suppliers.

Specifications

• Manufacturer: RAB
• Model Number: RAIL150NW/D10
• Input Wattage: 134 watts
• Lumens: 18,839 lumens
• Efficacy: 140 lumens per watt
• Color Temperature: 4000 kelvins
• Color Accuracy (CRI): 82 color rendering index
• Lens Material: High-transmittance Polystyrene
• Ambient Temperature Rating: 131 degrees Fahrenheit
• Product Weight: 16.3 lbs

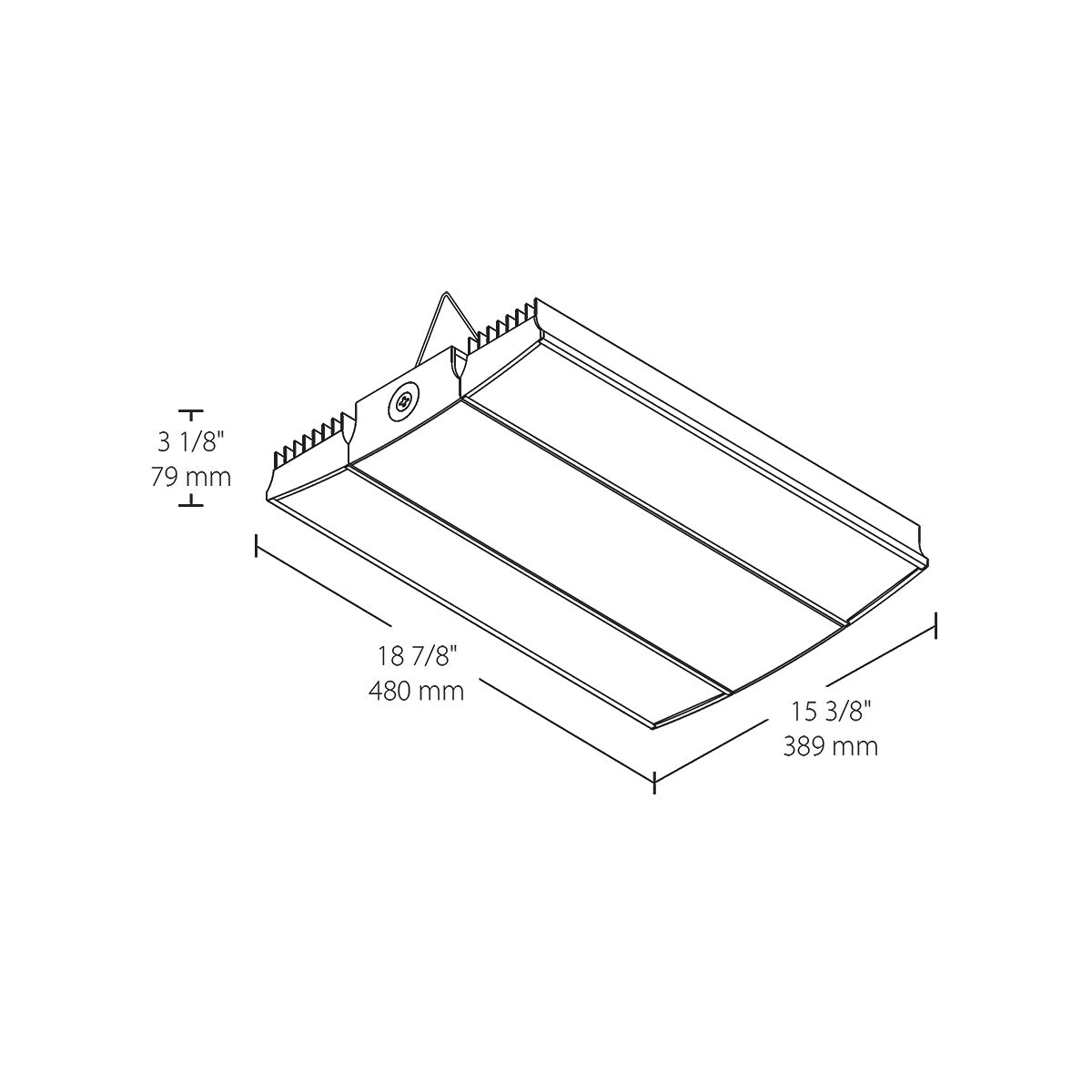

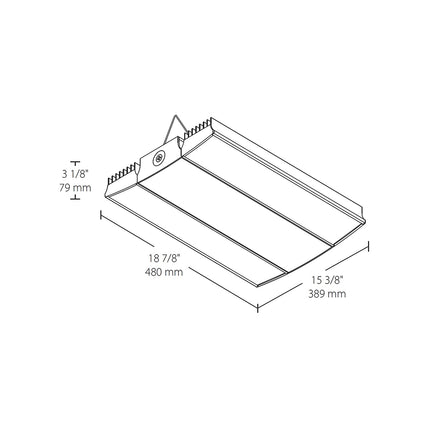

• Dimensions: 18 7/8" (length) x 15 3/8" (width) x 3 1/8" (height)

Features

• High lumen output with premium efficacy for energy-efficient lighting
• Universal voltage driver supports 120V to 277V, 50/60 Hz operation
• 0-10V dimmable for precise lighting control and energy savings
• Durable high-transmittance polystyrene lens for optimal light distribution
• Designed for high ambient temperature environments up to 131°F
• Robust construction suitable for commercial and industrial high bay applications
