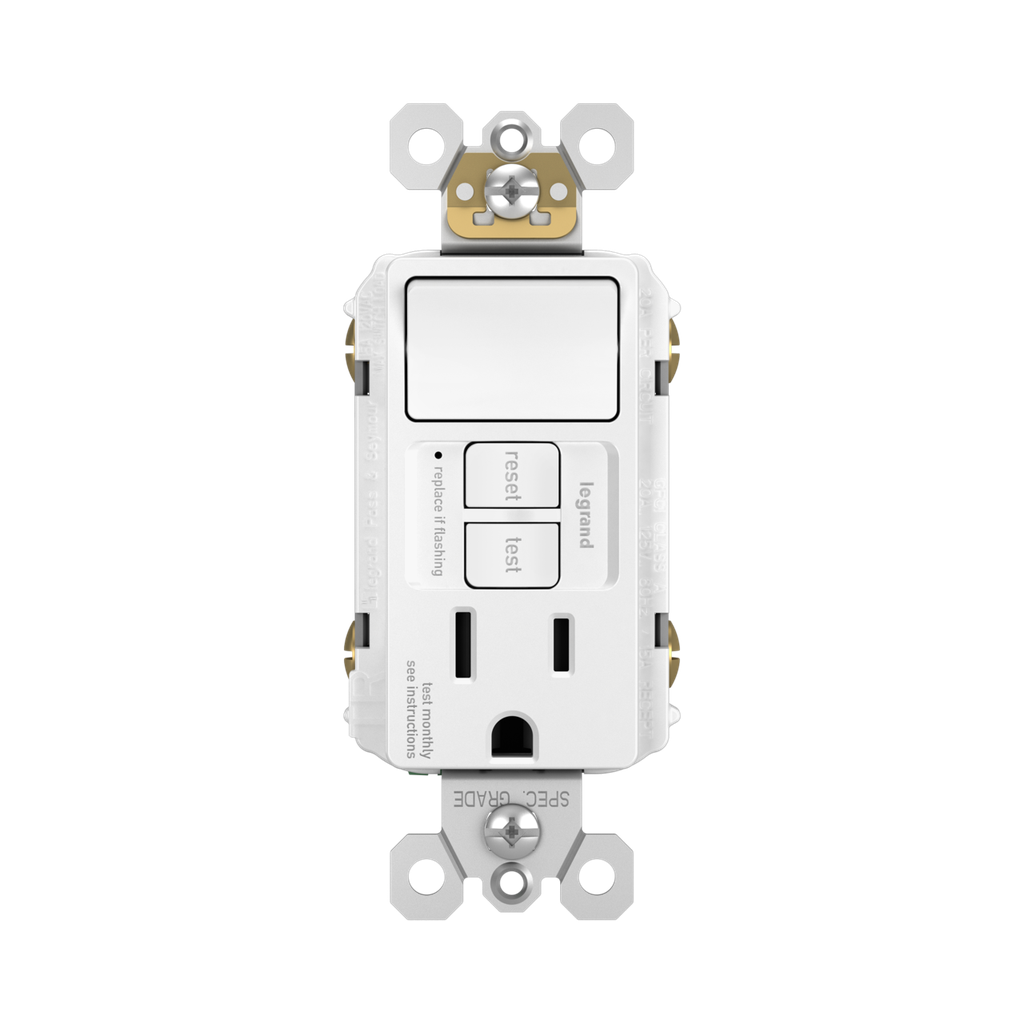

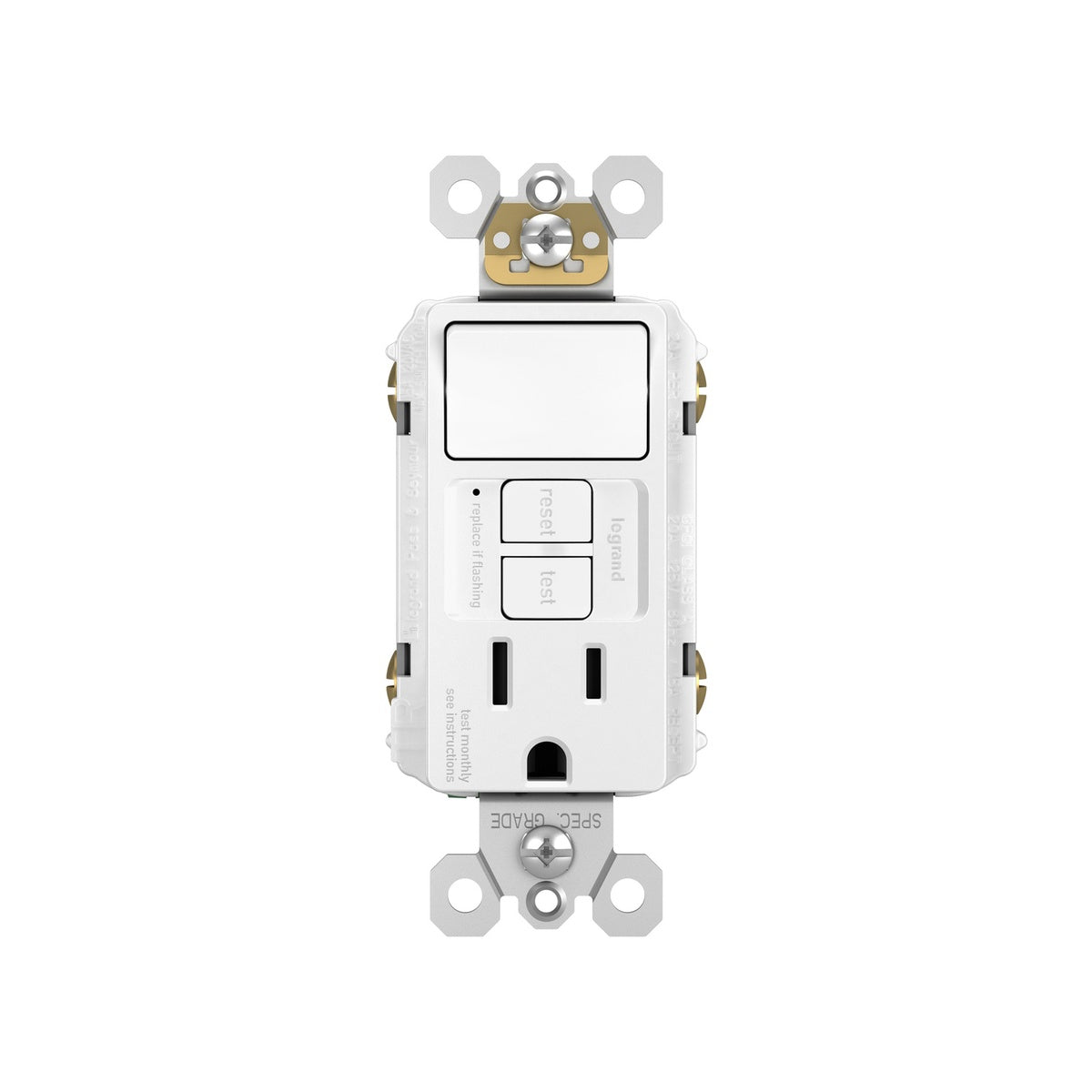

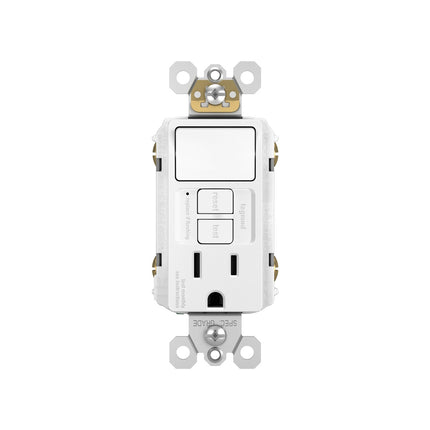

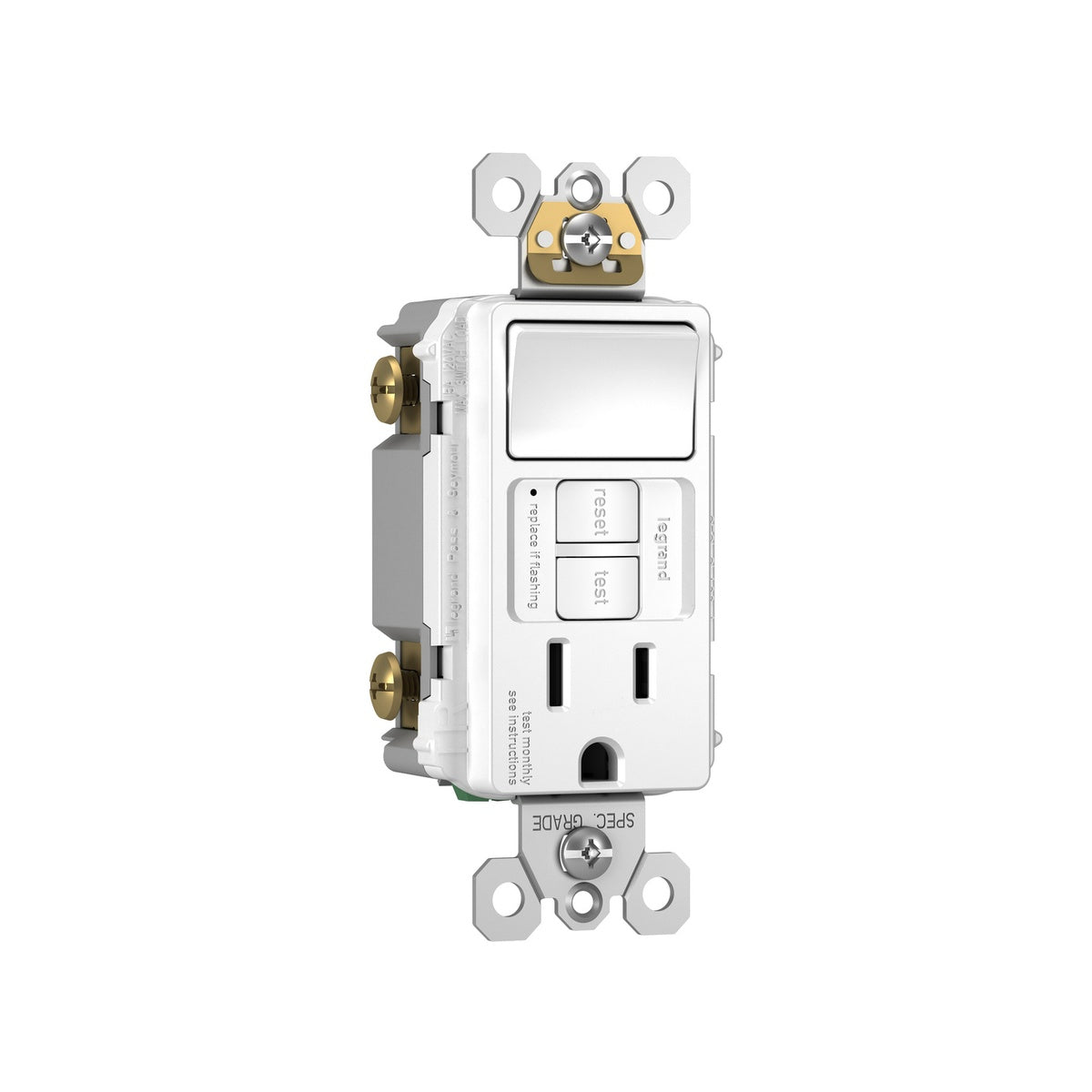

radiant® Combination Single Pole Switch and Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White - GFCI Switch

This combination device integrates a single pole switch with a tamper-resistant 15A duplex self-test GFCI receptacle, designed for electrical distributors and switchgear suppliers focused on lighting solutions and wire and cable applications. It provides reliable ground fault protection with automatic self-testing every three seconds, making it ideal for use with kitchen and bathroom vents. The device simplifies troubleshooting by indicating trips directly at the outlet, eliminating confusion at the breaker box. It is part of the radiant® Collection and is compatible exclusively with screwless wall plates from the same collection, sold separately.

Specifications

• Manufacturer Part #: 1597SWTTRWCCD4
• Color: White
• Finish: Matte
• Dimensions: 4.2 in (Height) x 1.73 in (Width) x 1.03 in (Depth)
• NEMA Rating: 15A
• Number of Poles: Single Pole, Double Pole
• Product Weight: 0.2650 lbs
• Environmental Conditions: 95% Humidity, UL 94 V2
• Country of Origin: China

Features

• Combination switch and tamper-resistant GFCI outlet for enhanced safety and convenience
• Self-tests automatically every three seconds to ensure ground fault protection
• SafeLock® Protection to prevent power flow if GFCI circuitry is damaged
• Code-compliant for use in kitchens and bathrooms, especially for vent applications
• Facilitates easy recognition and correction of trips at the outlet location
• Designed exclusively for use with screwless wall plates from the radiant® Collection
