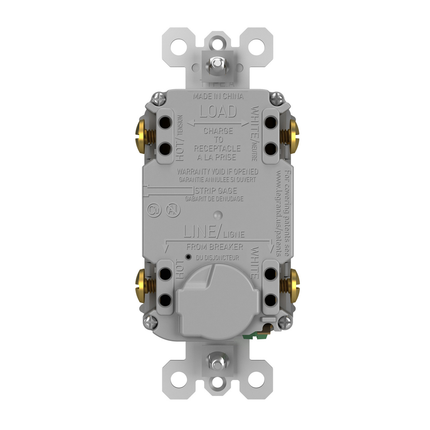

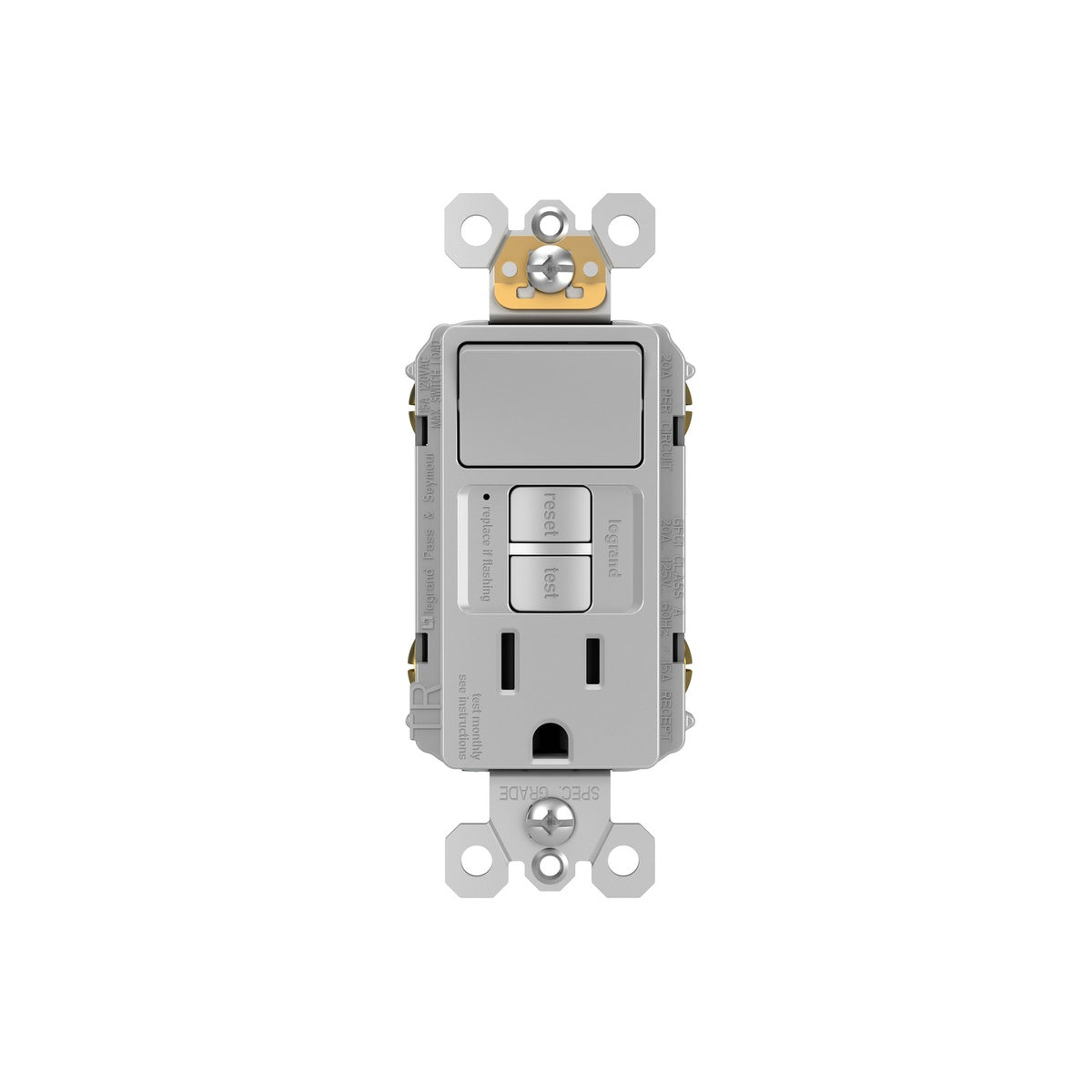

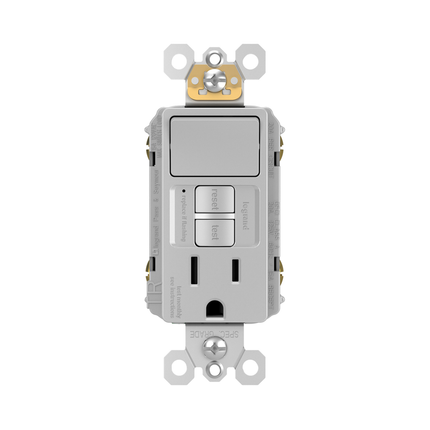

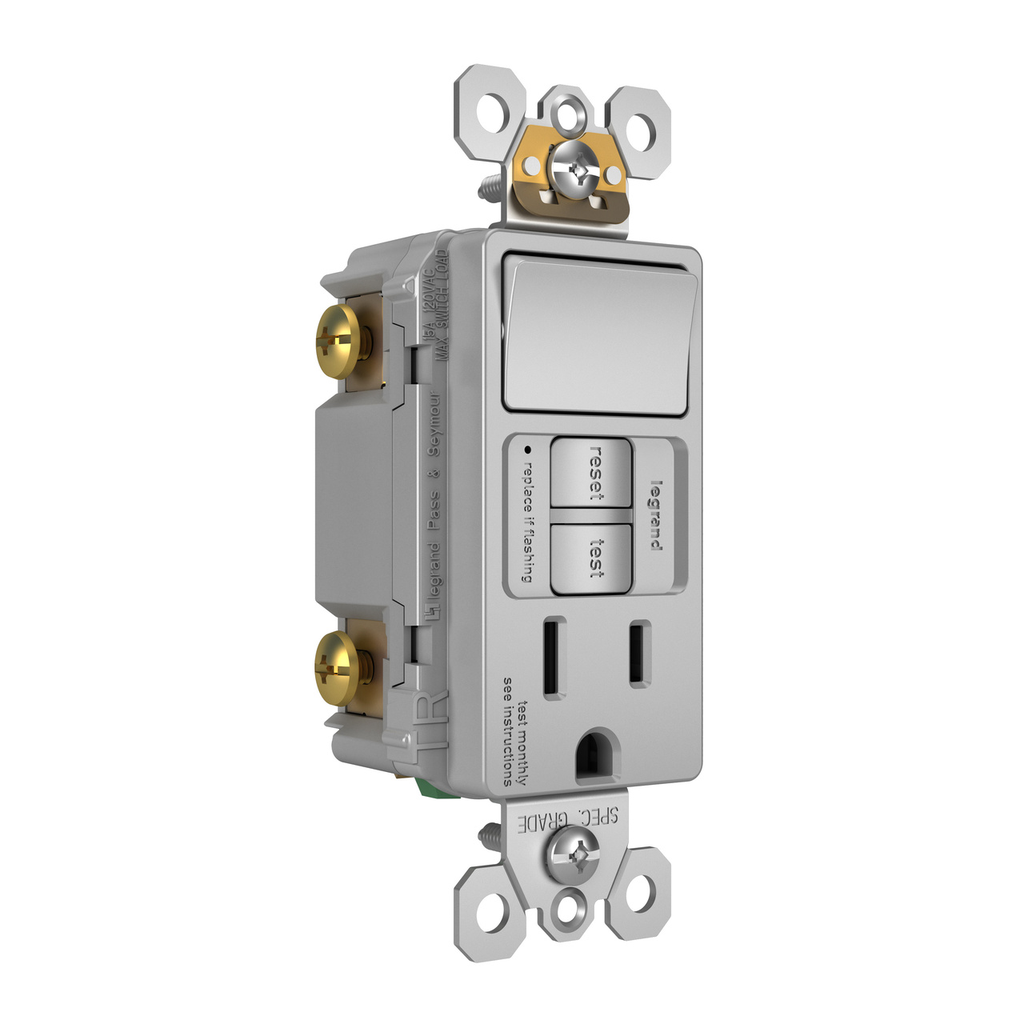

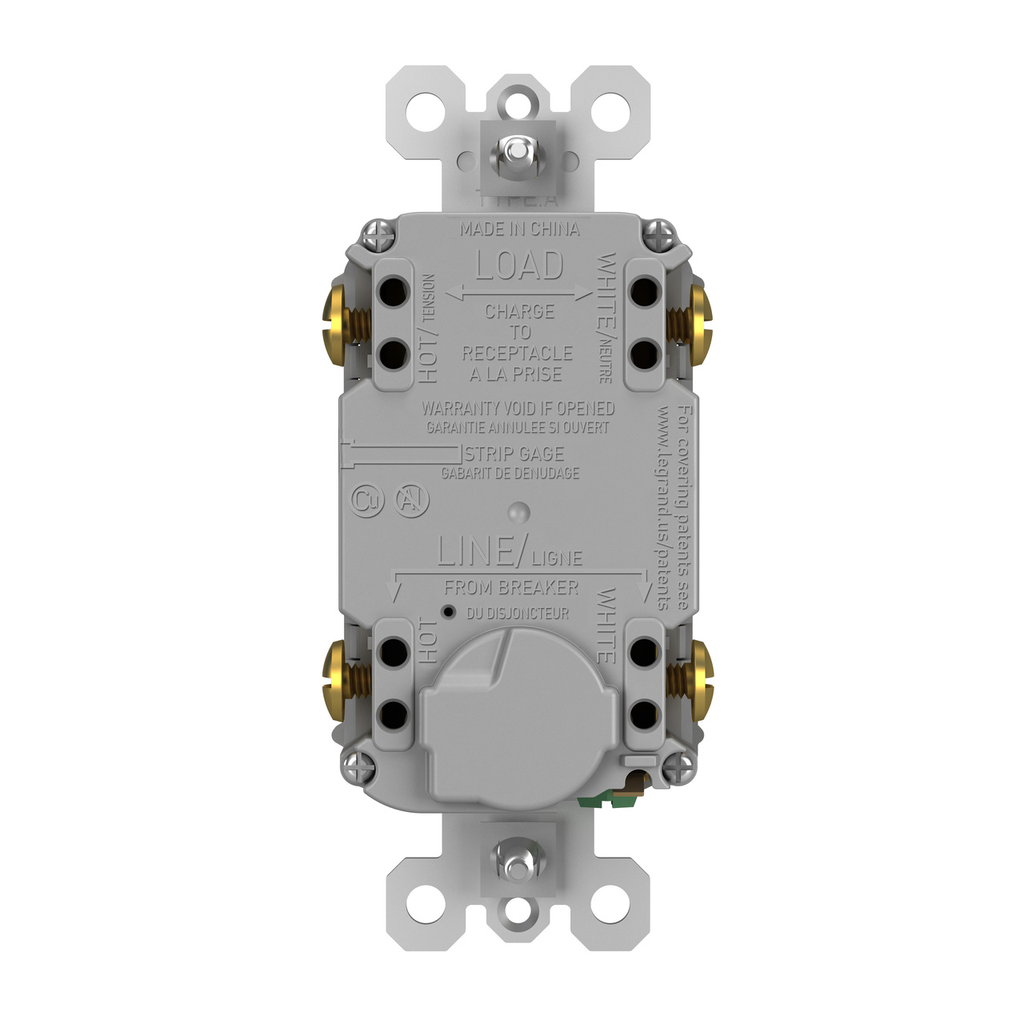

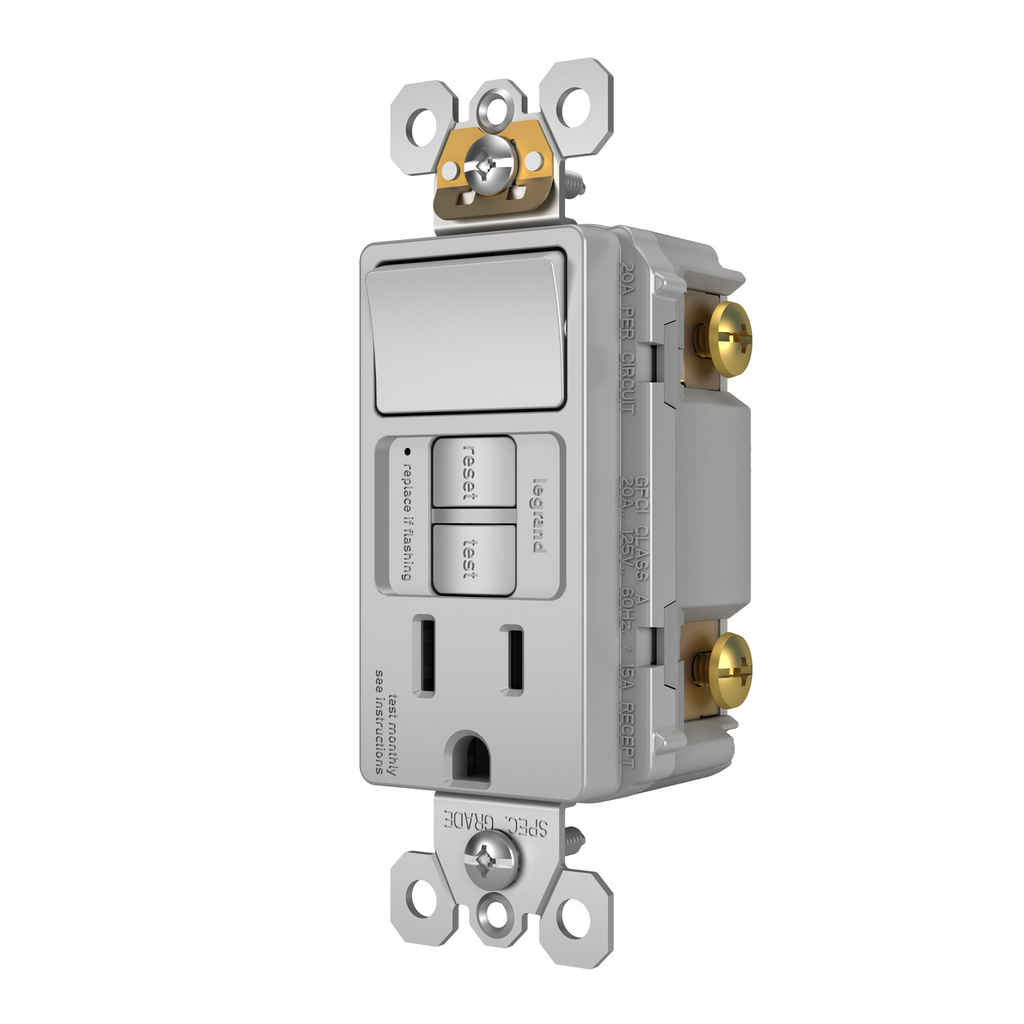

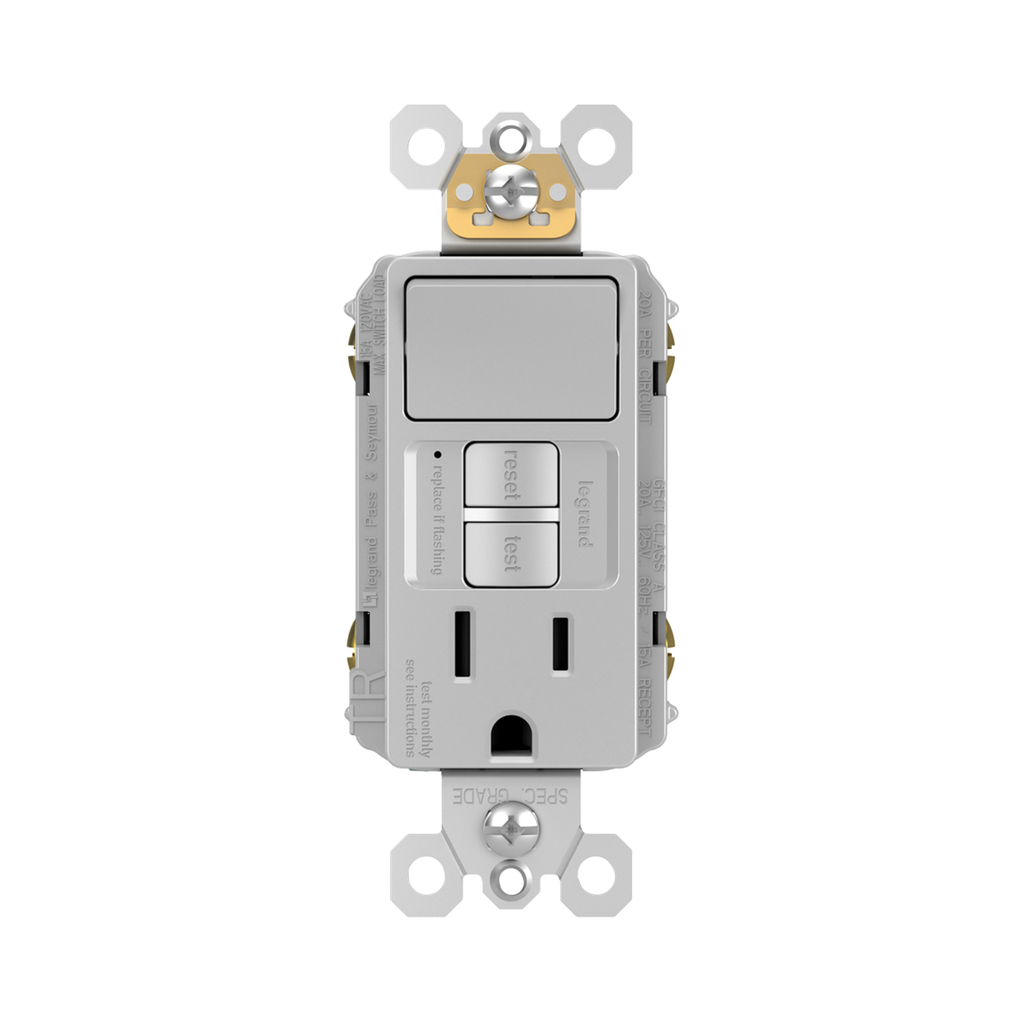

radiant® Combination Single Pole Switch and Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Gray

This combination device integrates a compact single pole switch with a tamper-resistant 15 Amp duplex self-test GFCI receptacle featuring SafeLock® Protection. Designed for use in kitchens, baths, and other areas requiring ground fault protection, it automatically self-tests every three seconds to ensure reliable operation and immediate detection of faults. The device simplifies troubleshooting by signaling trips directly at the outlet. It is part of the radiant® Collection and is compatible exclusively with screwless wall plates from the same collection, sold separately. This product is suitable for electrical distributors and lighting solutions providers seeking reliable wire and cable protection and switchgear supply.

Specifications

• Manufacturer Part #: 1597SWTTRGRY
• Color: Gray
• Number of Poles: Double Pole, Single Pole
• Dimensions: 4.2 in (Height) x 1.73 in (Width) x 1.03 in (Depth)
• Voltage Rating: 125VAC (standard for GFCI devices, per UL943)
• Current Rating: 15 Amp
• Country of Origin: China
• Product Weight: 0.25 lb
• Self-Test Interval: Every 3 seconds
• Order Minimum: 1

Features

• Tamper-resistant automatic shutter system for enhanced child safety
• SafeLock® Protection disconnects power if ground fault protection is compromised
• Automatic self-test every three seconds with flashing indicator for fault detection
• Compact design with sleek, clean lines as part of the radiant® Collection
• Compatible exclusively with screwless radiant® wall plates
• Durable thermoplastic construction for strength and longevity
• Auto-ground clip ensures positive grounding to metal boxes
• Side or internal screw-pressure-plate back wire termination for flexible installation
