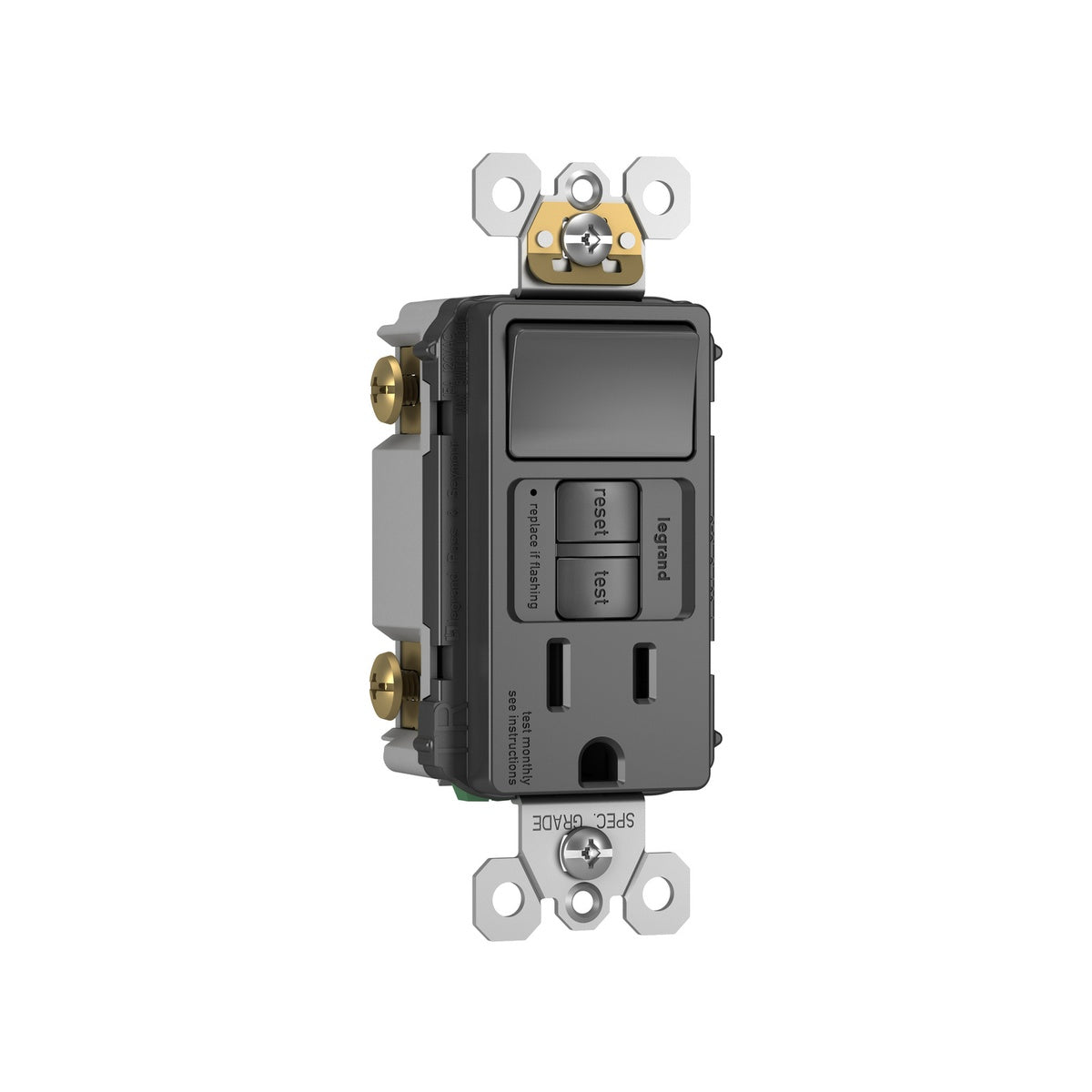

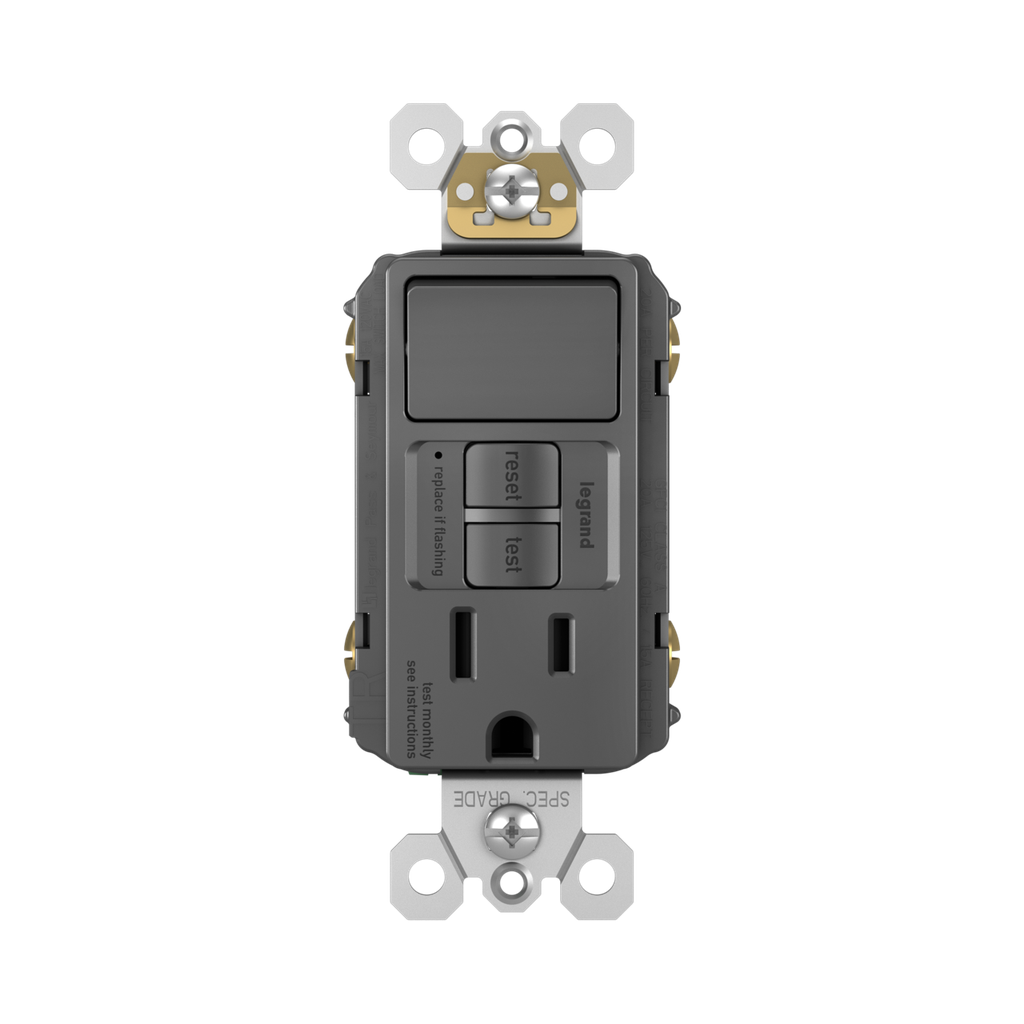

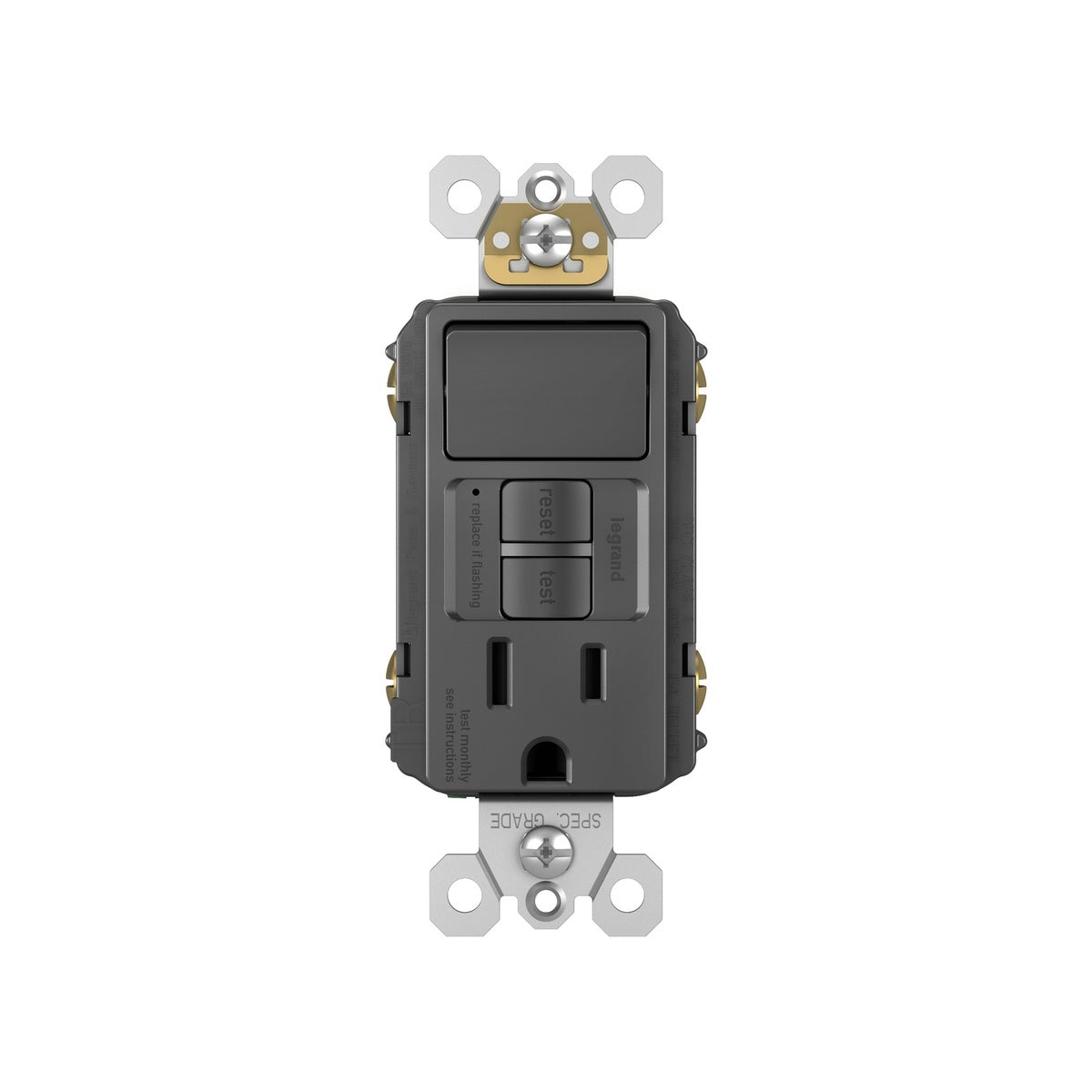

radiant® Combination Single Pole Switch and Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Black

This combination device integrates a compact single pole switch with a tamper-resistant GFCI outlet, designed to provide ground fault protection in compliance with electrical codes. Ideal for use with vents in kitchens and bathrooms, it features an automatic self-test function every three seconds to ensure reliable protection and immediate trip recognition. The device is part of the radiant® Collection, offering a sleek, matte black finish that complements screwless wall plates sold separately, making it suitable for electrical distributors and lighting solutions requiring wire and cable safety components.

Specifications

• Manufacturer: radiant
• Manufacturer Part #: 1597SWTTRBKCCD4
• Color: Black
• Finish: Matte
• Dimensions: Height 4.2 in, Width 1.73 in, Depth 1.03 in, Length 2 in
• NEMA Rating: 15A
• Number of Poles: Double Pole, Single Pole
• Environmental Conditions: 95% Humidity, UL 94 V2
• Country of Origin: China
• Product Weight: 0.2650 lbs
• Order Minimum: 1

Features

• Combination single pole switch and tamper-resistant GFCI outlet
• Self-testing GFCI outlet automatically tests every three seconds
• SafeLock® protection to prevent power flow if GFCI protection is compromised
• Compact design ideal for kitchen and bathroom vent applications
• Code-compliant ground fault protection with easy trip recognition at the outlet
• Compatible with screwless wall plates from the radiant® Collection (sold separately)

Downloads & Links

• 10 Tips for Your DIY Designer Switches & Outlets Project
• Meet Your Match
• Spec Sheet
• radiant¬Æ Spec Grade Self-Test GFCIs 15 & 20A, 125VAC"
• GFCI Receptacle - French
• GFCI Brochure
• Pass & Seymour GFCI Installation Instructions, IS341082"
• GFCI Receptacle - Spanish
• radiant¬Æ Guide Form Specification, Wiring Devices 16140"
• Cleaning Instructions for Wiring Devices
• radiant¬Æ Guide Form Specification, Wiring Devices 26 27 26"
