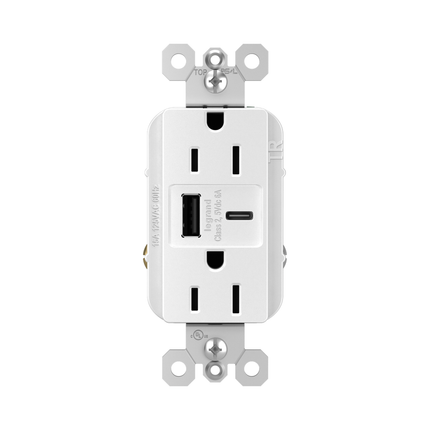

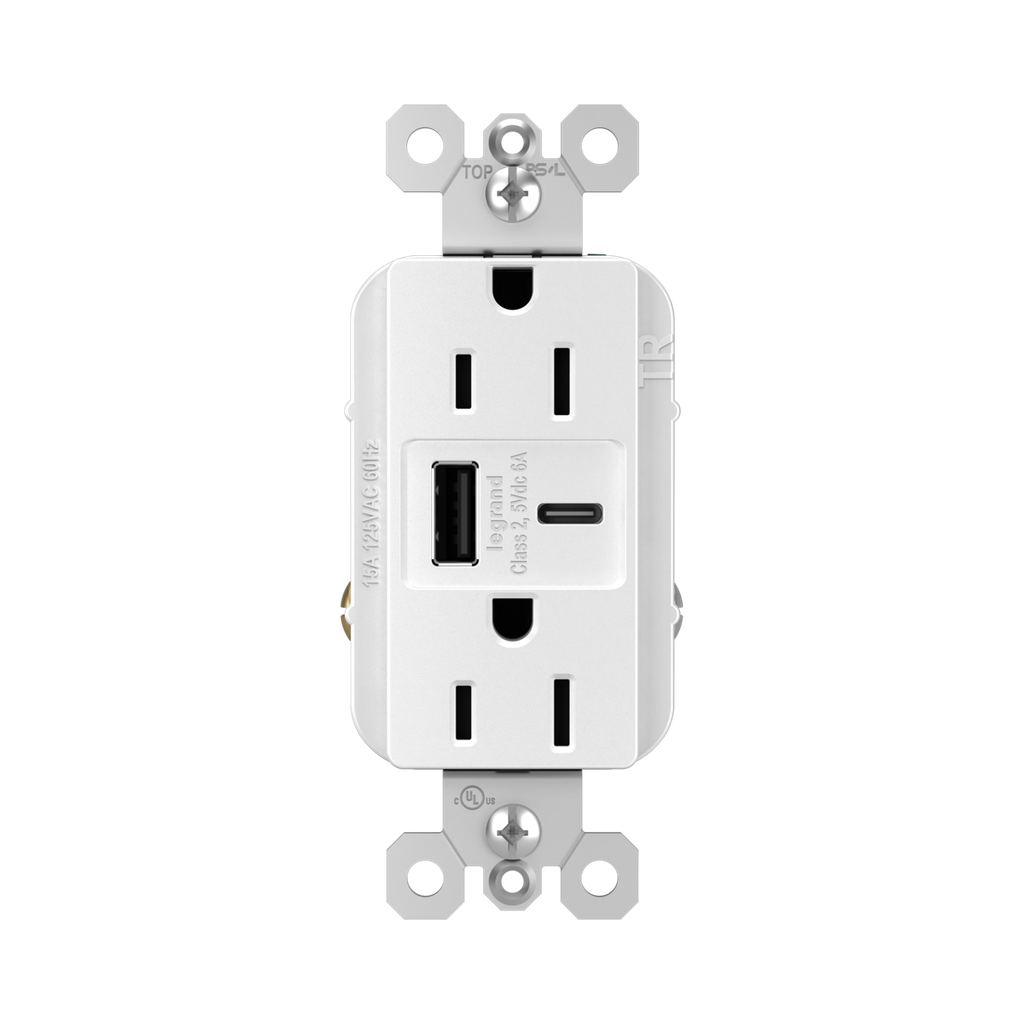

radiant® 15A Tamper-Resistant Ultra-Fast USB Type A/C Outlet, White

The radiant® 15A Tamper-Resistant Ultra-Fast USB Type A/C Outlet provides advanced USB charging capabilities integrated into a duplex electrical receptacle. Designed for quick and convenient charging of phones, tablets, and other mobile devices up to 40% faster than standard USB chargers, this outlet eliminates the need for bulky adapters. Ideal for electrical distributors and lighting solutions providers, it features tamper-resistant receptacles that comply with NEC requirements and fits standard-depth wall boxes for easy installation.

Specifications

• Rating: 15A, 125V
• USB Charging Capacity: 6.0A total with smart current-sharing technology
• Number of Poles: Double Pole
• Dimensions: Height 4.18 in, Width 1.693 in, Depth 1.35 in, Length 2.125 in
• Color: White
• Finish: Matte
• Material: Polycarbonate face, Nylon back body, CDA 260 Brass line contacts
• Terminal Accommodation: Back and side wire termination for #14 AWG to #10 AWG stranded and solid copper wire
• Environmental Conditions: 95% relative humidity, non-condensing
• Country of Origin: Vietnam
• Compliance: cULus listed, UL listed to UL 498, UL 1310, CSA C22.2 No. 42, CSA C22.2 No. 223
• Warranty: 1 Year

Features

• Includes one USB Type-A and one USB Type-C port for versatile device compatibility
• Industry-leading 27W power output for ultra-fast charging
• Tamper-resistant design with patented shutter system to prevent foreign object insertion
• Black ‚Äúinvisi-shutters‚Äù for an invisible shutter effect
• Smart current-sharing technology enables full 3A charging through the Type-C port
• Posted side-wire terminal screws and external brass back-wire pressure plates for fast, reliable installation
• Slim profile fits standard-depth wall boxes, compatible with screwless wall plates from the radiant¬Æ Collection (sold separately)
• Type-A and Type-C ports rated for a minimum of 10,000 insertions
• Meets Department of Energy (DoE) Level VI efficiency requirements with low no-load power draw
