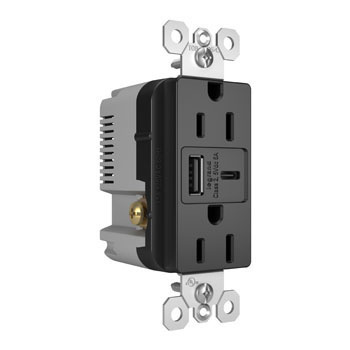

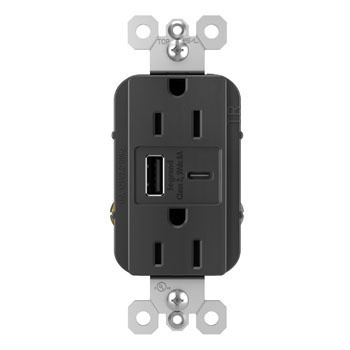

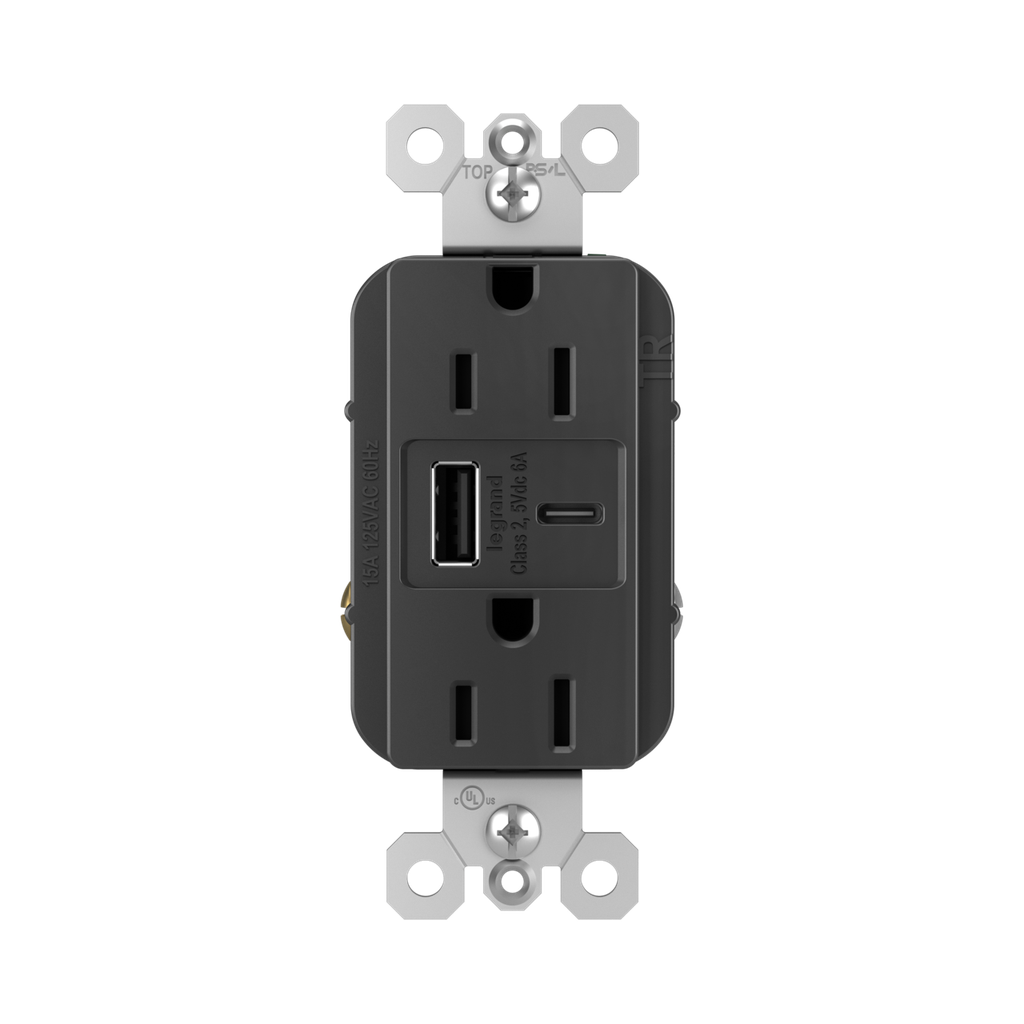

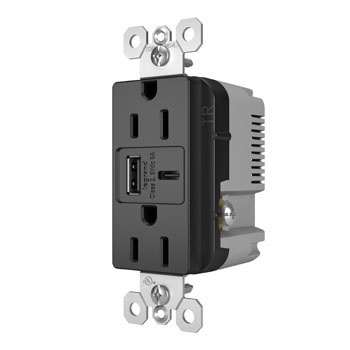

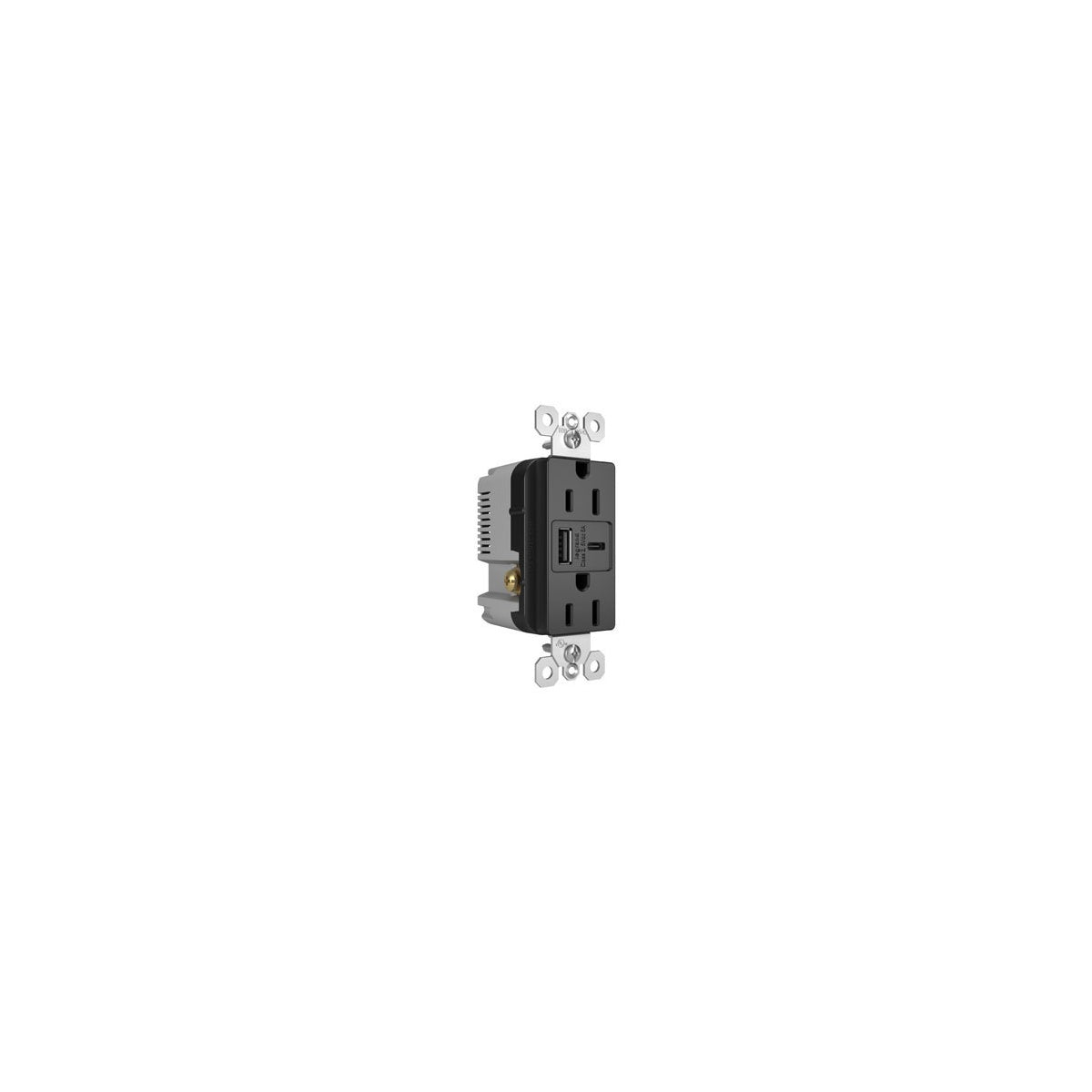

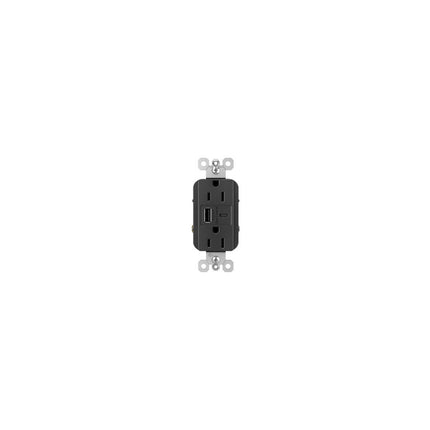

radiant® 15A Tamper-Resistant Ultra-Fast USB Type A/C Outlet, Black - Ultra-Fast USB Charging Outlet

The radiant® 15A Tamper-Resistant Ultra-Fast USB Type A/C Outlet provides advanced USB charging capabilities integrated with tamper-resistant AC receptacles. Designed for quick and convenient charging of smartphones, tablets, and laptops, this outlet delivers up to 40% faster charging with an industry-leading total USB power capacity of 6.0 amps shared between a USB Type-A and a USB Type-C port. Ideal for electrical distributors and switchgear suppliers seeking reliable, code-compliant lighting solutions and wire and cable accessories, this outlet replaces traditional receptacles with a sleek, matte black finish and a slim design suitable for standard-depth wall boxes.

Specifications

• Manufacturer Part #: R26USBAC6BK
• Rating: 15A, 125V
• NEMA Rating: 15A
• Number of Poles: Double Pole
• Dimensions: Height 4.18 in, Width 1.693 in, Depth 1.35 in, Length 2.125 in
• Finish: Matte
• Color: Black
• Product Weight: 0.33 lbs
• Environmental Conditions: Operates at 95% relative humidity, non-condensing
• Country of Origin: China
• Electrical: Dielectric withstand voltage 1500V minimum, maximum working voltage 125V, certified for current interrupting at full-rated current
• Materials: Polycarbonate face, nylon back body, CDA 260 brass contacts, zinc-plated steel mounting strap and screws
• Back and side wire termination options accommodate #14 AWG ‚Äì #10 AWG stranded and solid copper wire
• RoHS compliant
• Certifications: cULus listed, UL listed, meets UL 498 and UL 1310, CSA C22.2 No. 42 and No. 223
• Warranty: 1 Year

Features

• Industry-leading 6.0A total USB charging capacity with smart current-sharing technology allowing full 3A through a singular USB Type-C port
• Combination AC USB receptacle includes one USB Type-A and one USB Type-C port compatible with USB 2.0 and 3.0 devices
• Tamper-resistant design with patented shutter system featuring black "invisi-shutters" to prevent improper insertion of foreign objects
• Slim profile for easy installation in standard-depth wall boxes

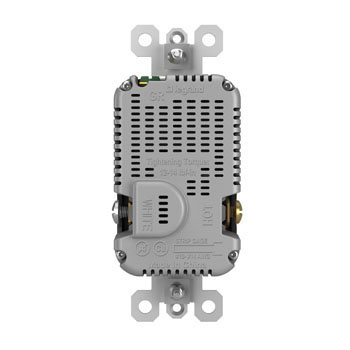

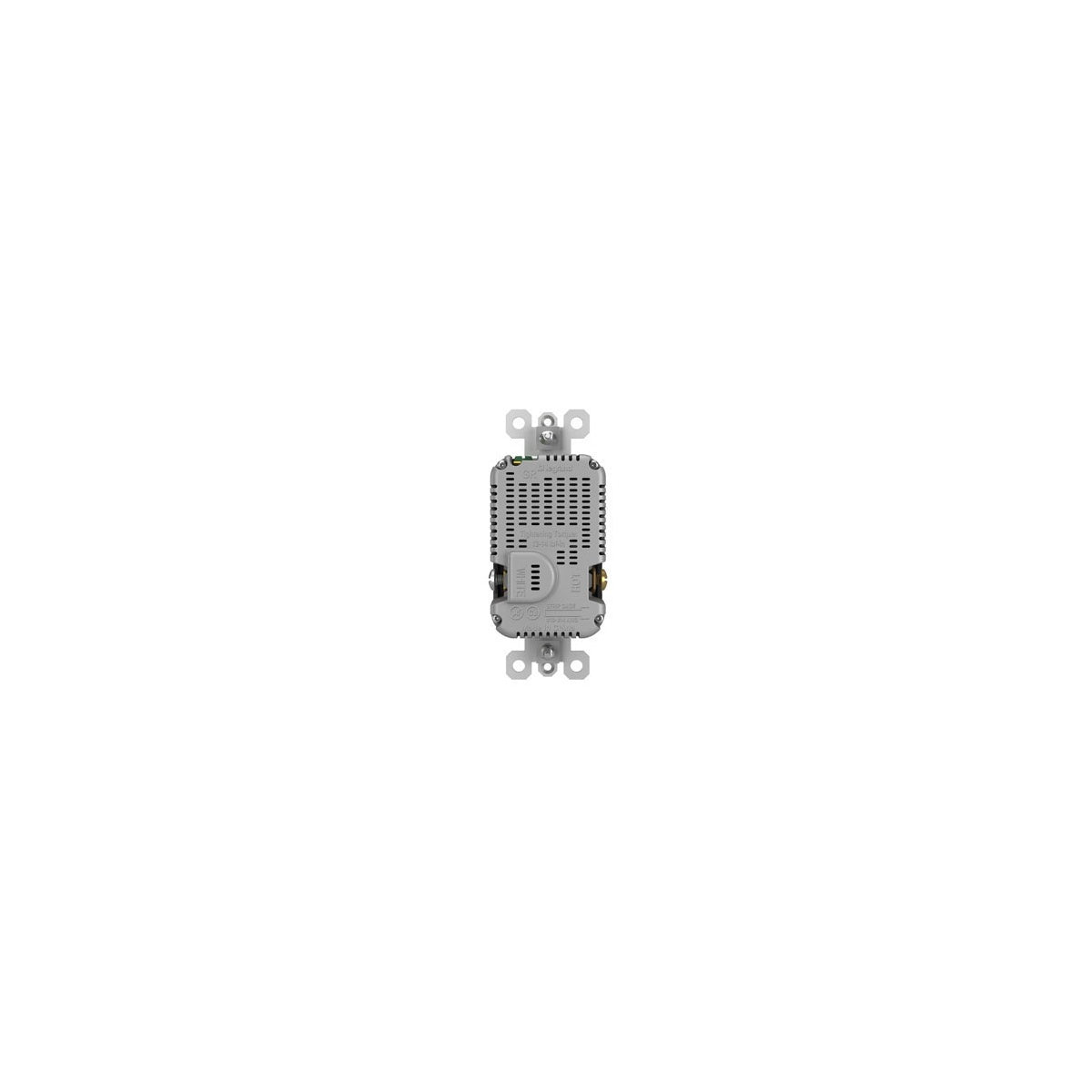

• External brass back-wire pressure plate and posted side-wire terminal screws for faster, reliable installation
• Durable construction with Type-A and Type-C ports rated for a minimum of 10,000 insertions
• Meets NEC¬Æ requirements for tamper-resistance
• Matte black finish designed to coordinate with screwless wall plates from the radiant¬Æ Collection (sold separately)
