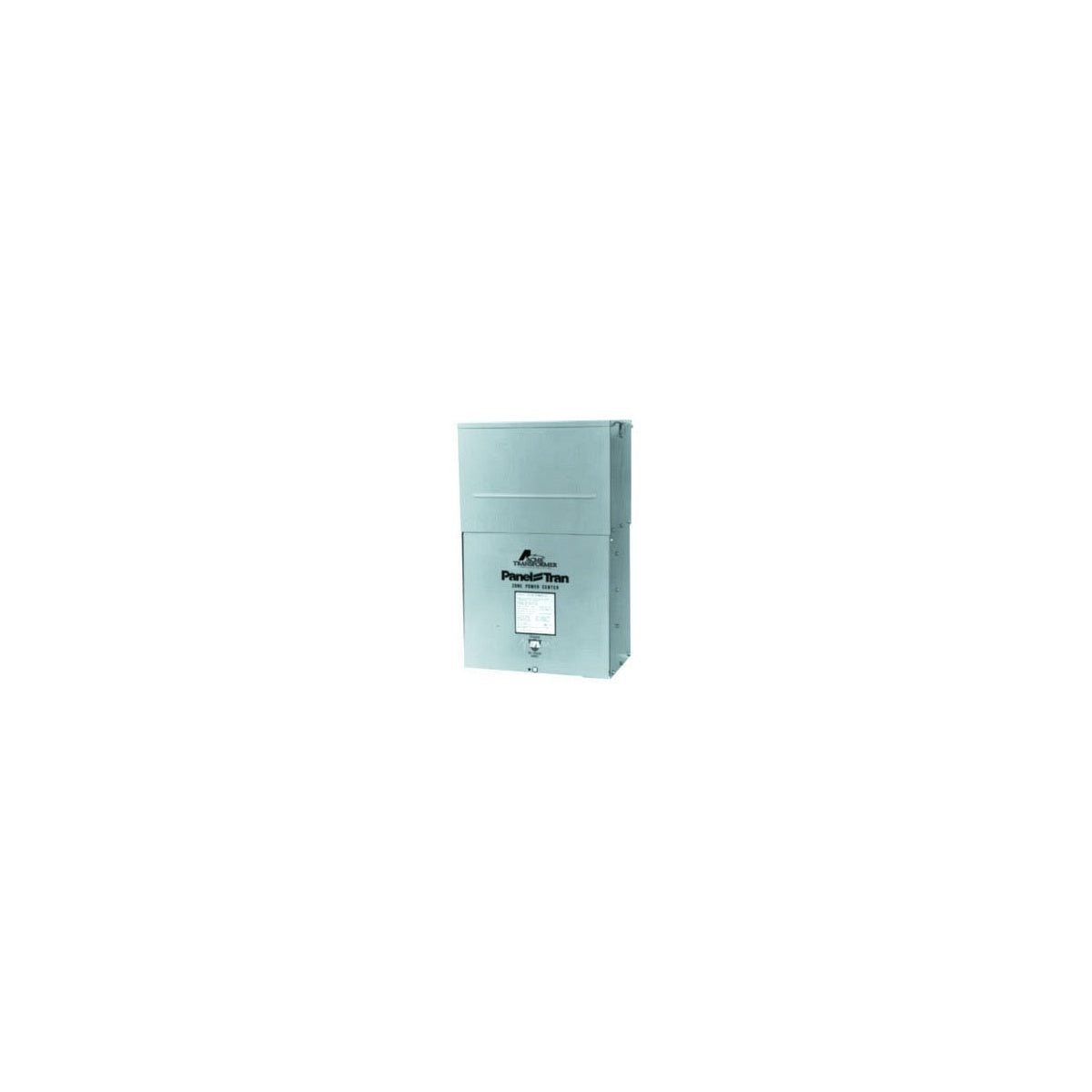

RACO PTBA3150015LS Transformer 3-Phase 15KVA 480-208Y/120 PanelTran Zone Power Center

The RACO PTBA3150015LS is a 3-phase, 15 KVA encapsulated distribution transformer integrated with a power panel assembly in a UL-3R rated enclosure. Designed for indoor and outdoor applications, it serves as a reliable zone power solution suitable for use as service entrance equipment. This product is ideal for electrical distributors and switchgear suppliers seeking a pre-tested, pre-wired combination that saves installation time and space.

Specifications

• Manufacturer: RACO
• Model Number: PTBA3150015LS
• Voltage Primary: 480 Volts Delta
• Voltage Secondary: 208Y/120 Volts
• Power Rating: 15 KVA
• Phase: Three Phase
• Enclosure Type: UL-3R
• Dimensions (H x W x D): 35.13" x 22.13" x 12.38" (89.2 cm x 56.2 cm x 31.4 cm)
• Weight: 385 lbs (175.0 kg)
• Secondary Maximum Circuits: 12 (1-pole), 4 (3-pole)
• Secondary Maximum Current Output: 25 amps (120 V, 1-pole), 40 amps (208 V, 3-pole)

Features

• Pre-wired combination of primary breaker disconnect, dry-type shielded transformer, secondary breaker disconnect, and secondary power panel
• UL listed system with a 10-year limited warranty
• Supports snap-in or bolt-in circuit breakers including one-inch, 1, 2 or 3-pole, common trip, duplex secondary branch circuit breakers and ground fault circuit breakers
• Encapsulated construction for durability and reliable performance
• Shielded transformer for cleaner power delivery
• Abundant knockouts provided for flexible wiring options
• Suitable for petroleum and mining applications
• Tamper-proof pad-lockable captive hardware for enhanced security
• Lifting ears for easy installation
