RACO 223 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP
SKU: #120504
Part: #223
UPC: 050169002230
RACO 223 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP
SKU: #120504
Part: #223
UPC: 050169002230
Description

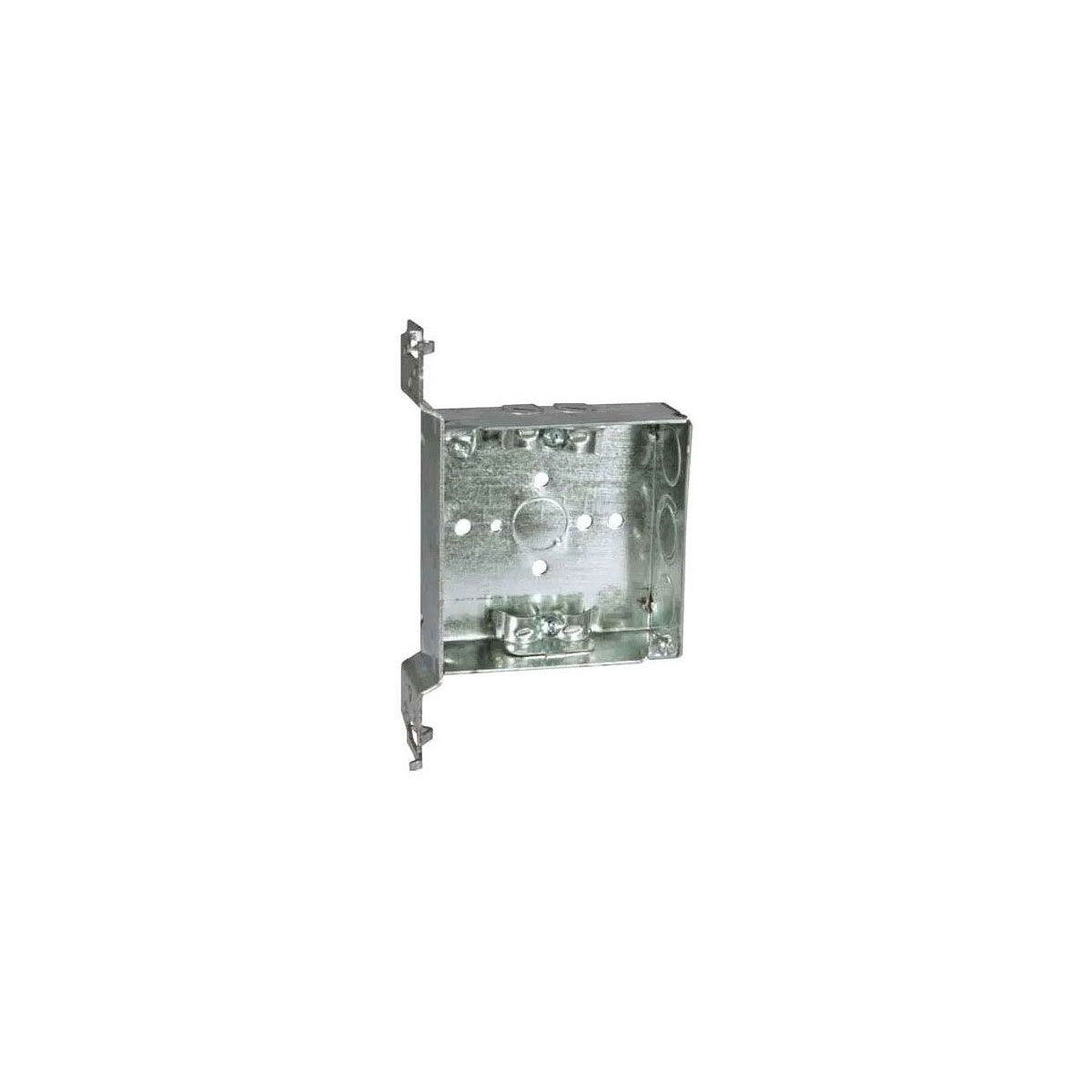

RACO 223 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP Electrical Box
The RACO 223 is a 4-inch square steel electrical box designed for installation in walls or ceilings to support lighting fixtures, switches, or receptacles. This box is welded with nonmetallic sheathed cable clamps, providing secure cable management and is suitable for multiple conductor runs split into two or more directions. It is ideal for electrical distributors and lighting solutions requiring reliable wire and cable containment and protection.
Specifications
- Dimensions: 4" square, 1-1/2" deep
- Cubic Inches: 21.0 (344.1 cm³)
- Knockouts: (2) 1/2", (1) TKO combination 1/2" and 3/4"
- Conduit Openings: 4 sides and 1 bottom conduit knockout
- Standard Package Quantity: 25
- UL Listed: Yes
- Voltage Rating: Suitable for circuits up to 600 volts per UL 514-A
Features
- Welded construction with nonmetallic sheathed cable clamps for secure cable retention
- Flush mount bracket design for easy installation
- Combination screw heads for faster installation
- TKO® patented knockouts offering flexibility with 1/2" and 3/4" conduit sizes
- Acceptable for use in 2-hour fire-rated floor-ceiling and roof-ceiling assemblies, as well as bearing and non-bearing wood and steel stud walls
- Suitable for use without a bonding jumper in circuits up to 600 volts
