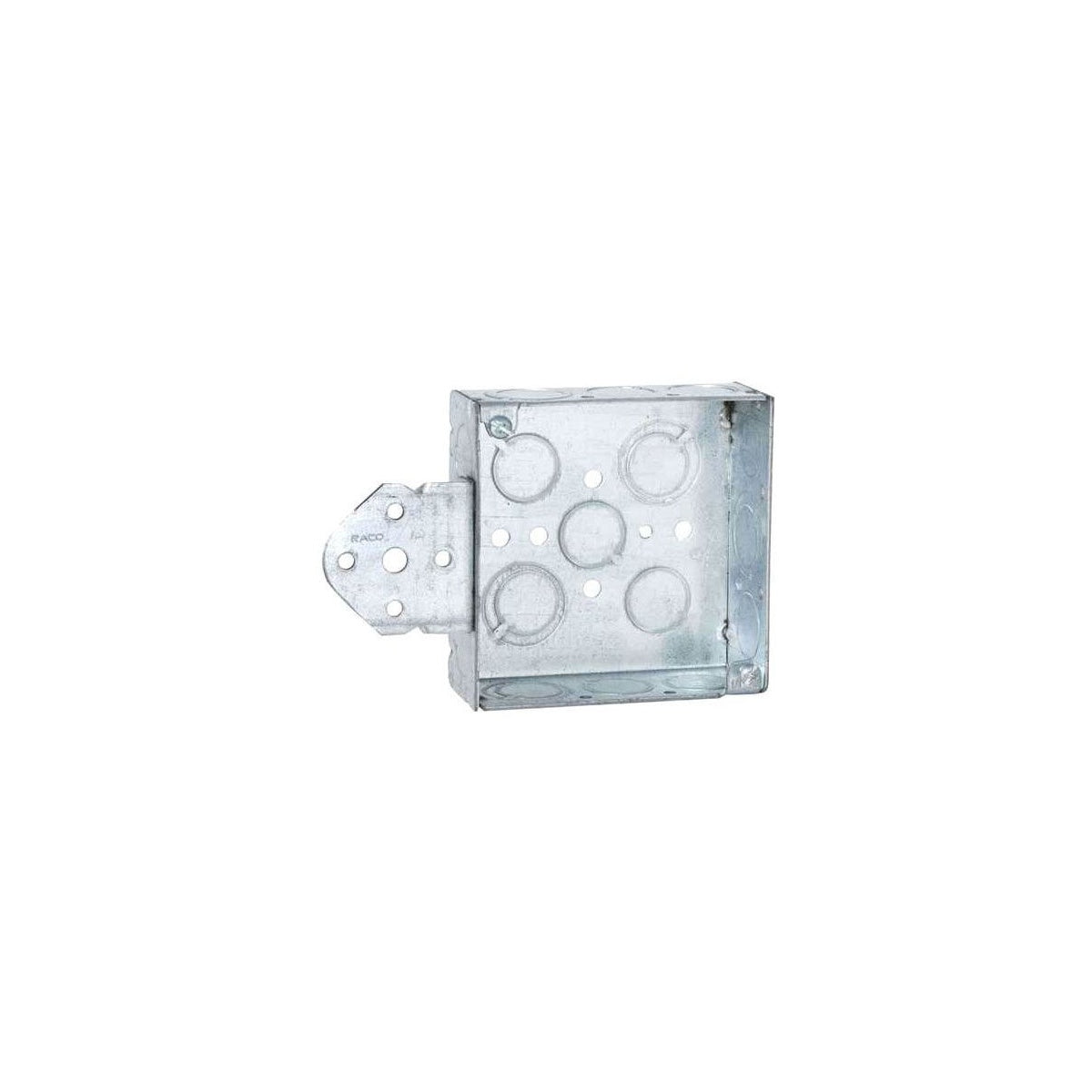

RACO 193 4SQ BOX WELD 1-1/2DP B-BRKT 1/2-3/4 TKO Electrical Conduit Box

The RACO 193 is a 4-inch square bracketed steel electrical box designed for use in residential and commercial wiring installations. It is welded with conduit knockouts (KO's) and features a 1-1/2 inch depth, making it suitable for mounting lighting fixtures, switches, or receptacles in walls or ceilings. This product is ideal for electrical distributors and switchgear suppliers needing durable and UL-listed wiring solutions for wire and cable management.

Specifications

• Manufacturer: RACO
• Manufacturer Part #: 193
• Box Type: 4" Square Bracketed Box
• Depth: 1-1/2 inch
• Cubic Inches: 21.0 (344.1 cm³)
• Knockouts: (6) 1/2" side conduit, (3) TKO, (3) 1/2" bottom conduit, (2) TKO
• Standard Package Quantity: 25
• UL Listed: Yes, suitable for use in 2-hour fire rated assemblies
• Voltage Rating: Suitable for circuits up to 600 volts per UL 514-A
• Dimensions (inside): A = 1-1/2", B = 1-31/32", C = 6"

Features

• Welded bracket for secure mounting with preset bend points to fit wall thicknesses from 2-1/2" to 6"
• TKO® Knockouts provide design and installation flexibility
• Acceptable for use without bonding jumper in circuits up to 600 volts
• UL Listed for fire resistance in floor-ceiling and roof-ceiling assemblies as well as bearing and non-bearing wood and steel stud walls
