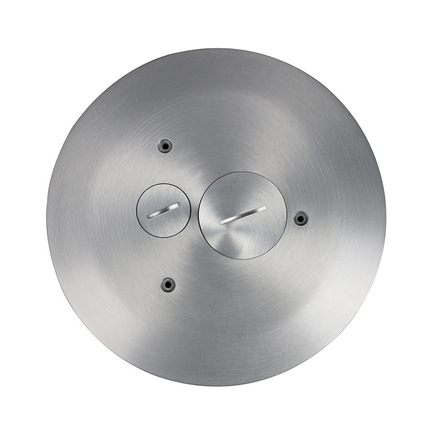

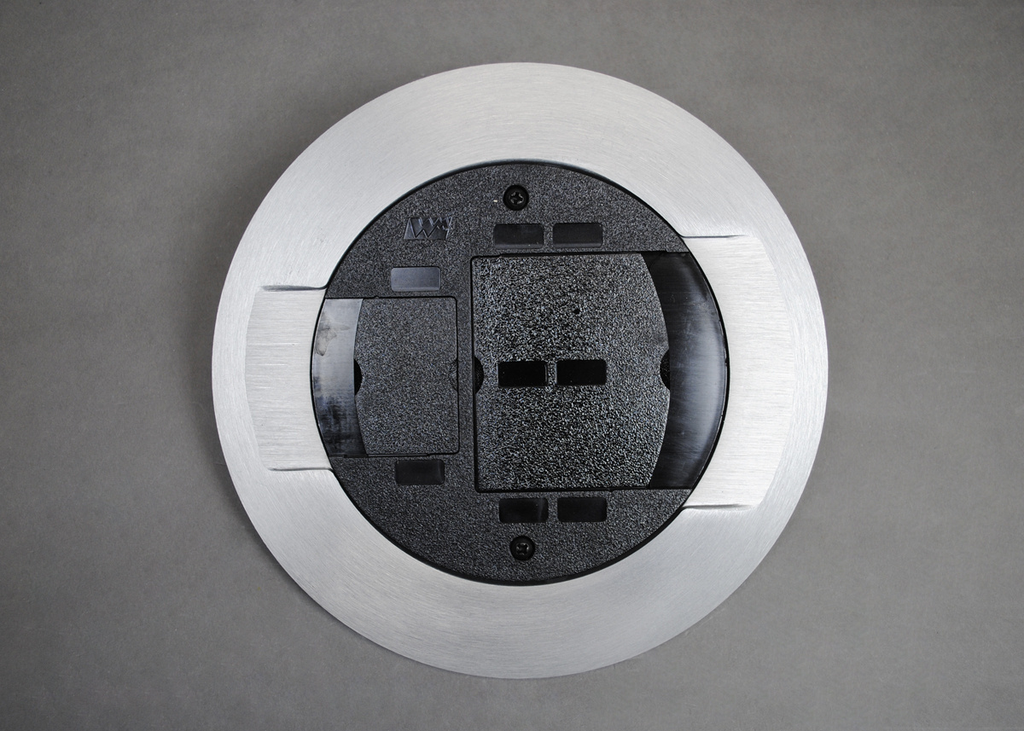

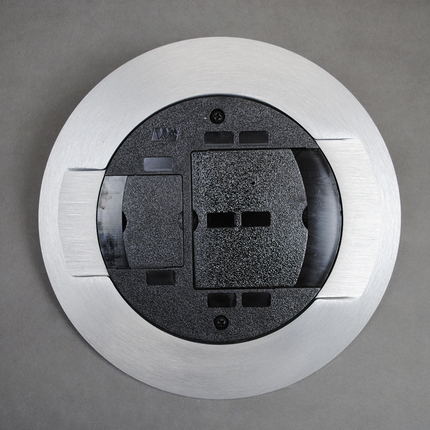

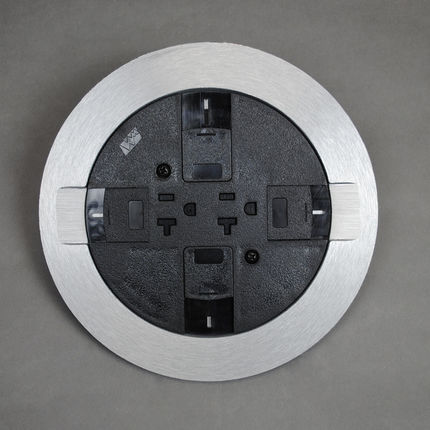

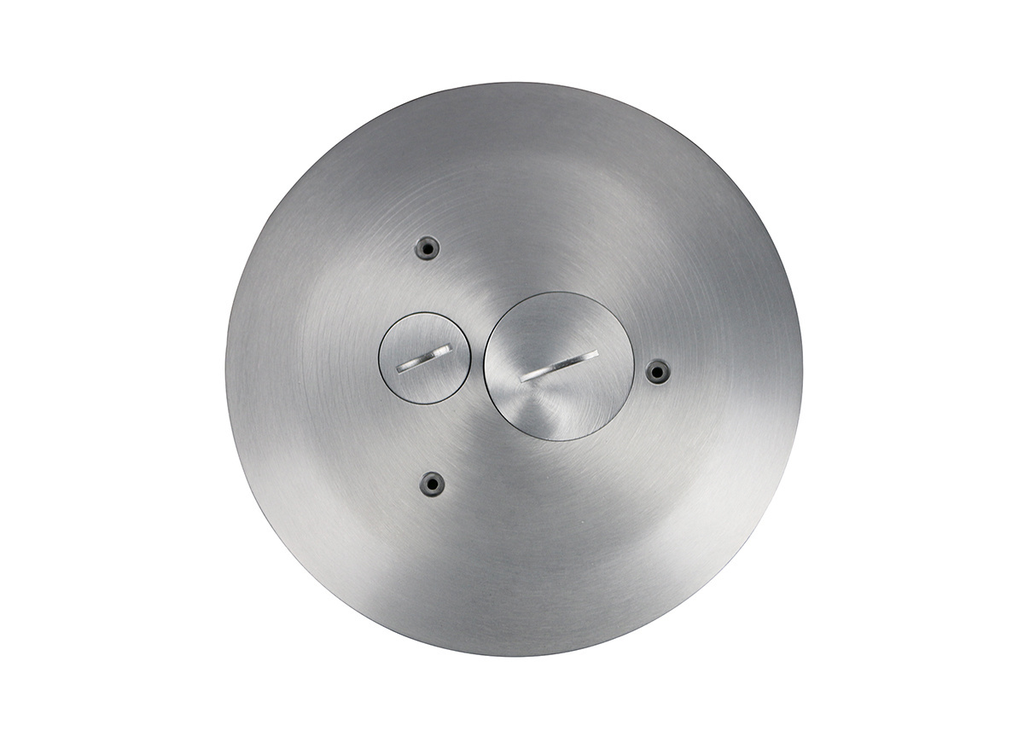

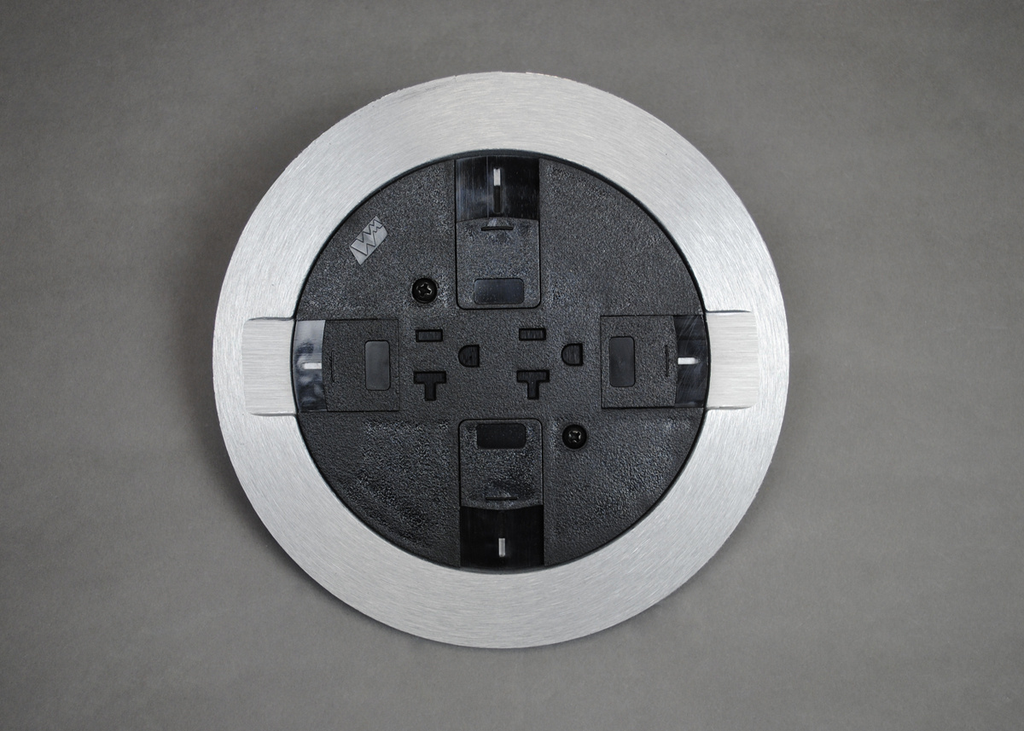

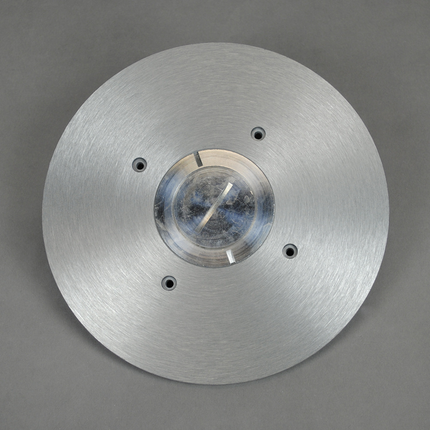

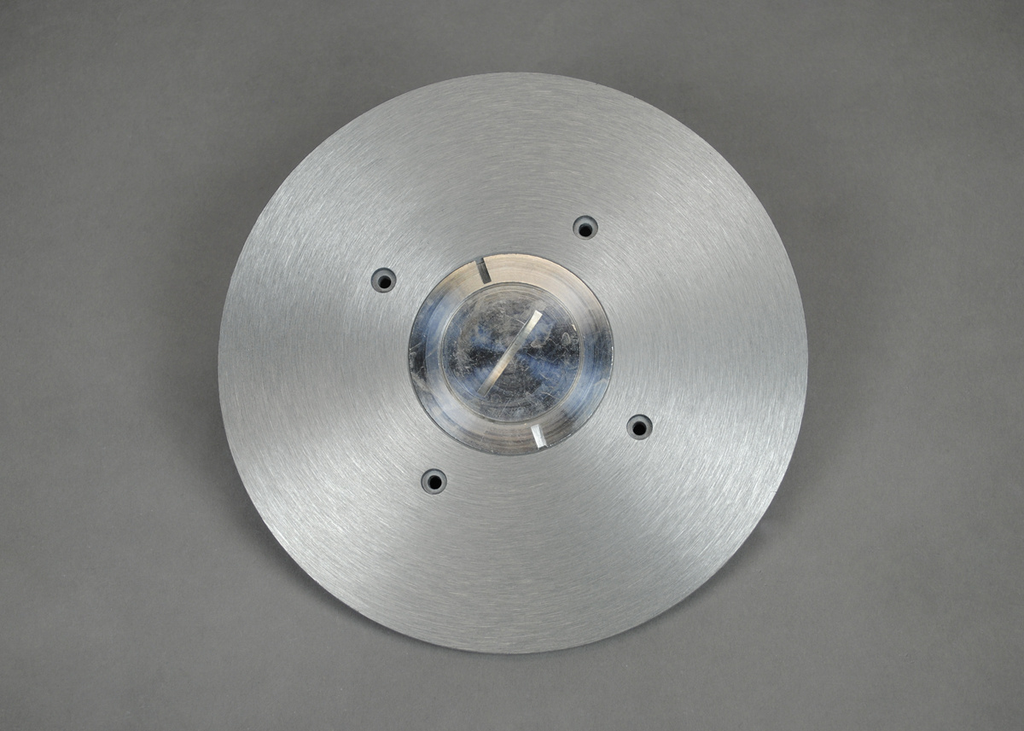

Rachet-Pro™ Series Multi-Service RC4 Style Cover Kit – Floor Box Cover Kit

The Rachet-Pro™ Series Multi-Service RC4 Style Cover Kit is designed for use with Wiremold® Ratchet-Pro™ Series floor boxes, providing a versatile solution for electrical distributors and lighting solutions focused on wire and cable management. This kit supports multiple service capabilities including power, audio/visual (A/V), and communication services, making it suitable for open-space commercial environments such as malls, airports, hospitals, and office buildings. It is compatible with floor boxes that comply with cULus listings for both on-grade and above-grade concrete construction, ensuring reliability and safety in diverse installation conditions.

Specifications

• Product Name: Rachet-Pro™ Series Multi-Service RC4 Style Cover Kit
• Color: Black
• Dimensions: Width 8.25 in, Depth 8.25 in, Height 4.5 in
• Construction: Assembled
• Product Weight: 2.83 lbs
• Country of Origin: Mexico
• Manufacturer: Wiremold
• Manufacturer Part Number: RP4CTCBK
• Order Minimum: 1 unit

Features

• Provides single- and dual-service capability for power, A/V, or communication services.
• Easy installation with ratchet adjusting ring allowing up to 10° of flexible adjustment for surface conformity, reducing labor costs.
• Durable black finish designed to integrate aesthetically with commercial flooring.
• Compatible with multiple conduit feed sizes, supporting trade sizes from 3/4" to 2".
• Includes divider for separation of power and communication compartments to maintain service integrity.
• cULus Listed for use in both on-grade and above-grade concrete installations.
• TopGuard protection design keeps out water, dirt, and debris to maintain device integrity and meet UL scrub water exclusion requirements.
• Durable mudcap protects box during construction from damage by heavy equipment.
