RAB SLED5W STEPLIGHT 5IN SQUARE 5W COOL LED WHITE
SKU: #402267
Part: #SLED5W
UPC: 019813019888
RAB SLED5W STEPLIGHT 5IN SQUARE 5W COOL LED WHITE
SKU: #402267
Part: #SLED5W
UPC: 019813019888
Total Price: $151.88 per each Sold in increments of 1 each
Description

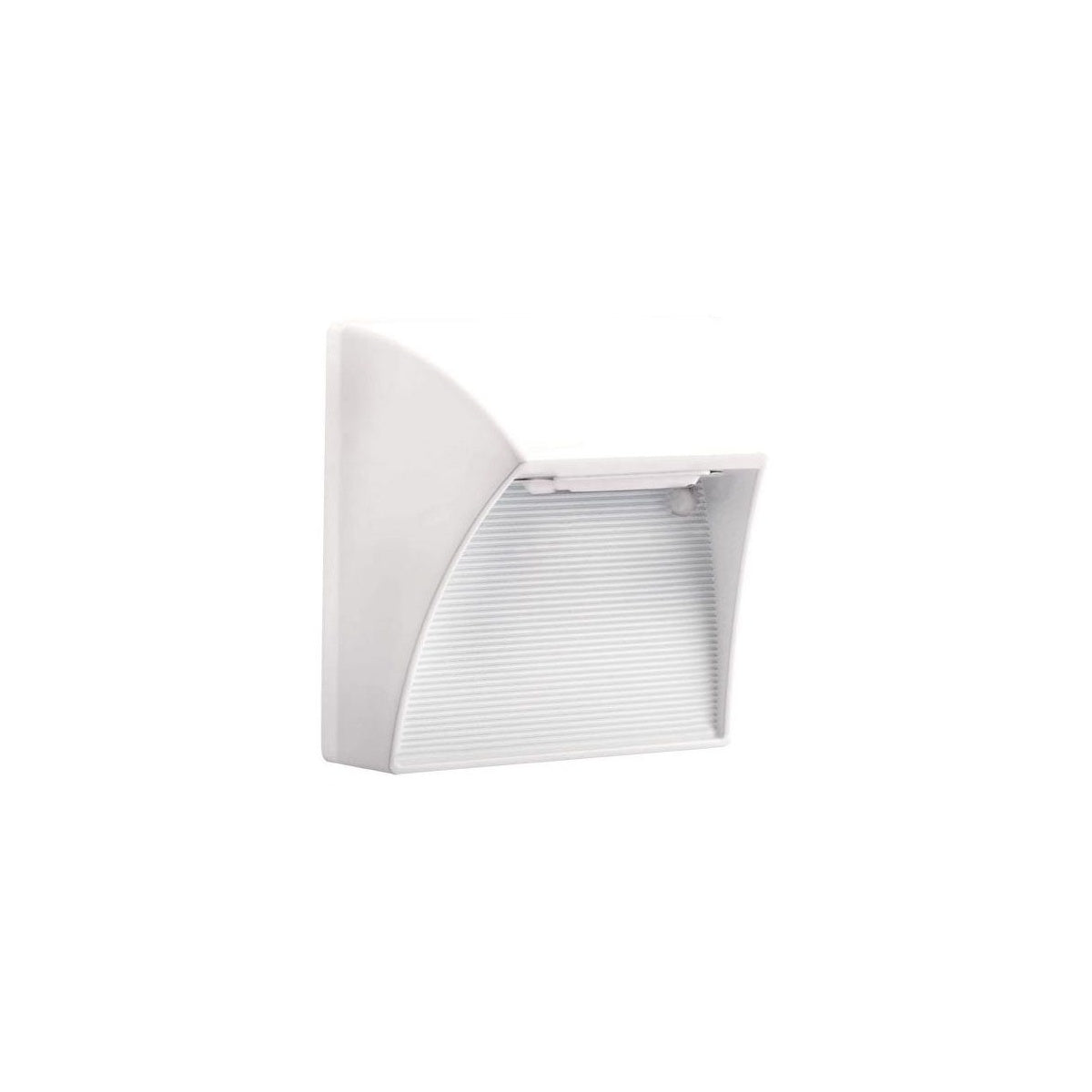

RAB SLED5W STEPLIGHT 5IN SQUARE 5W COOL LED WHITE - LED Step Light
The RAB SLED5W is a 5-watt square LED step light designed for illuminating steps, decks, landscapes, and entryways. This product is suitable for electrical distributors and lighting solutions providers seeking energy-efficient, low-profile step lighting that meets ADA requirements. It offers smooth light distribution with full cutoff optics to reduce light pollution, making it ideal for LEED-certified buildings. The fixture is constructed with precision die-cast aluminum housing and features a high-temperature silicone gasket for weatherproof performance. It is suitable for wet locations and mounting within 4 feet of the ground.
Specifications
- Manufacturer: RAB Electric Manufacturing
- Model Number: SLED5W
- Input Watts: 5W
- Output Lumens: 128 (3000K), 155 (4000K), 196 (5000K)
- Color Temperature (CCT): 3000K, 4000K, 5000K
- Color Accuracy (CRI): 88 (3000K), 85 (4000K), 69 (5000K)
- Lumens Per Watt: 24 (3000K), 30 (4000K), 37 (5000K)
- Dimensions: 5" W x 5" H x 3" D (127 mm x 127 mm x 76 mm)
- Weight: 1.5 lbs (0.7 kg)
- Housing: Precision die-cast aluminum
- Gaskets: High-temperature silicone
- Driver: Constant Current, 350mA Class 2 with 1 kV surge protection
- Voltage: Universal 120V-240V, 50/60 Hz
- Operating Temperature: -40°C to 40°C (-40°F to 104°F)
- Lifespan: 100,000-hour LED lifespan based on IES LM-80 and TM-21 calculations
- UL Listing: Suitable for wet locations, suitable for mounting within 4 feet of the ground
Features
- Full cutoff optics for eliminating stray light and reducing light pollution
- Low-profile design meeting ADA requirements
- Integral cast aluminum mounting pad for superior thermal management and extended LED lifespan
- Recessed LED module with optimized reflector for smooth light distribution and low glare
- Weatherproof construction with properly seated gaskets for reliable outdoor use
- Compatible with LEED building standards to earn Light Pollution Reduction credits
- 5-year no compromise warranty
