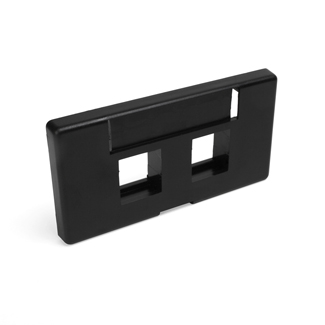

QUICKPORT™ Modular Furniture Faceplate, 2-Port, Black – Modular Furniture Faceplate

Leviton QUICKPORT Modular Furniture Faceplate with ID windows provides a field-configurable solution designed for office environments to support voice and data applications. This 2-port faceplate accepts QUICKPORT snap-in connectors and adapters, facilitating organized workstation identification and efficient patching. Suitable for electrical distributors and switchgear suppliers focusing on modular connectivity and wire and cable management.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 49910-SE2
• Country of Origin: Mexico
• Material: UL 94V-0 Rated Thermoplastic
• Dimensions: Approximately 3.15" W x 1.66" H x 0.25" D
• Ports: 2 flush-mount ports
• Product Weight: 1.4 lbs
• Standards: cULus Listed (UL 1863 & CAN/CSA-C22.2 No. 182.4), ANSI/TIA 568 compliant

Features

• Accepts Leviton QUICKPORT snap-in connectors
• ID label and window kit included for workstation identification
• Compact design meets ANSI/TIA 568 bend-radius requirements
• Rattle-free fit with single tool-free release latch
• Constructed of high-impact, self-extinguishing plastic
• Compatible with a variety of voice and data applications in office furniture
