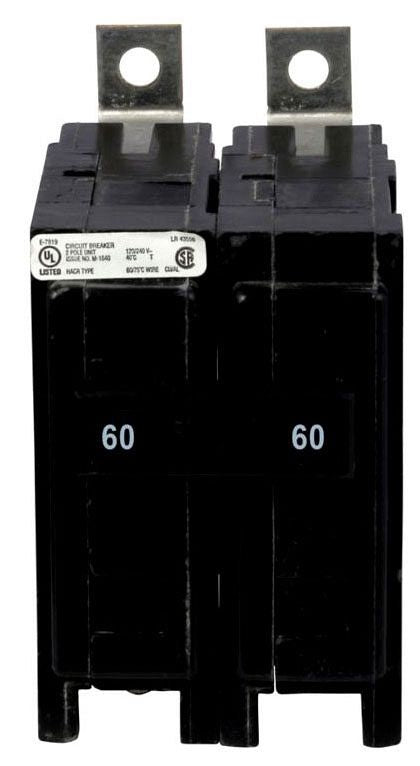

Quicklag Industrial Thermal-Magnetic Circuit Breaker, Two-pole, 60A, 22 kAIC, 120/240V, Bolt-on Circuit Breaker

The Quicklag Industrial Thermal-Magnetic Circuit Breaker by Eaton is designed for reliable electrical protection in industrial and commercial applications. This two-pole, bolt-on breaker provides 60 amperes of continuous current capacity with a high interrupting rating of 22 kAIC at 120/240 volts AC. It is suitable for use in switchgear assemblies and distribution panels, offering thermal-magnetic trip protection to safeguard wire and cable installations from overloads and short circuits.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: QBHW2060
• Amperage: 60 amperes
• Number of Poles: 2
• Voltage Rating: 120/240V AC
• Interrupting Capacity: 22 kAIC
• Mounting Type: Bolt-on
• Dimensions (W x H x L): 2.3 in x 4.8 in x 3.9 in
• Product Weight: 0.7 lbs
• UPC: 786679392904

Features

• Thermal-magnetic trip unit providing reliable overload and short-circuit protection
• Two-pole design for double-pole circuit protection
• Bolt-on mounting for secure and straightforward installation
• UL listed and CSA certified for safety and compliance
• Compact dimensions for efficient panel space utilization

Downloads & Links

• Circuit Breaker Time/Current Curves For Quicklag. Industrial Circuit Breakers
• Loadcenters And Circuit Breakers
• Eatons Volume 4-Circuit Protection
