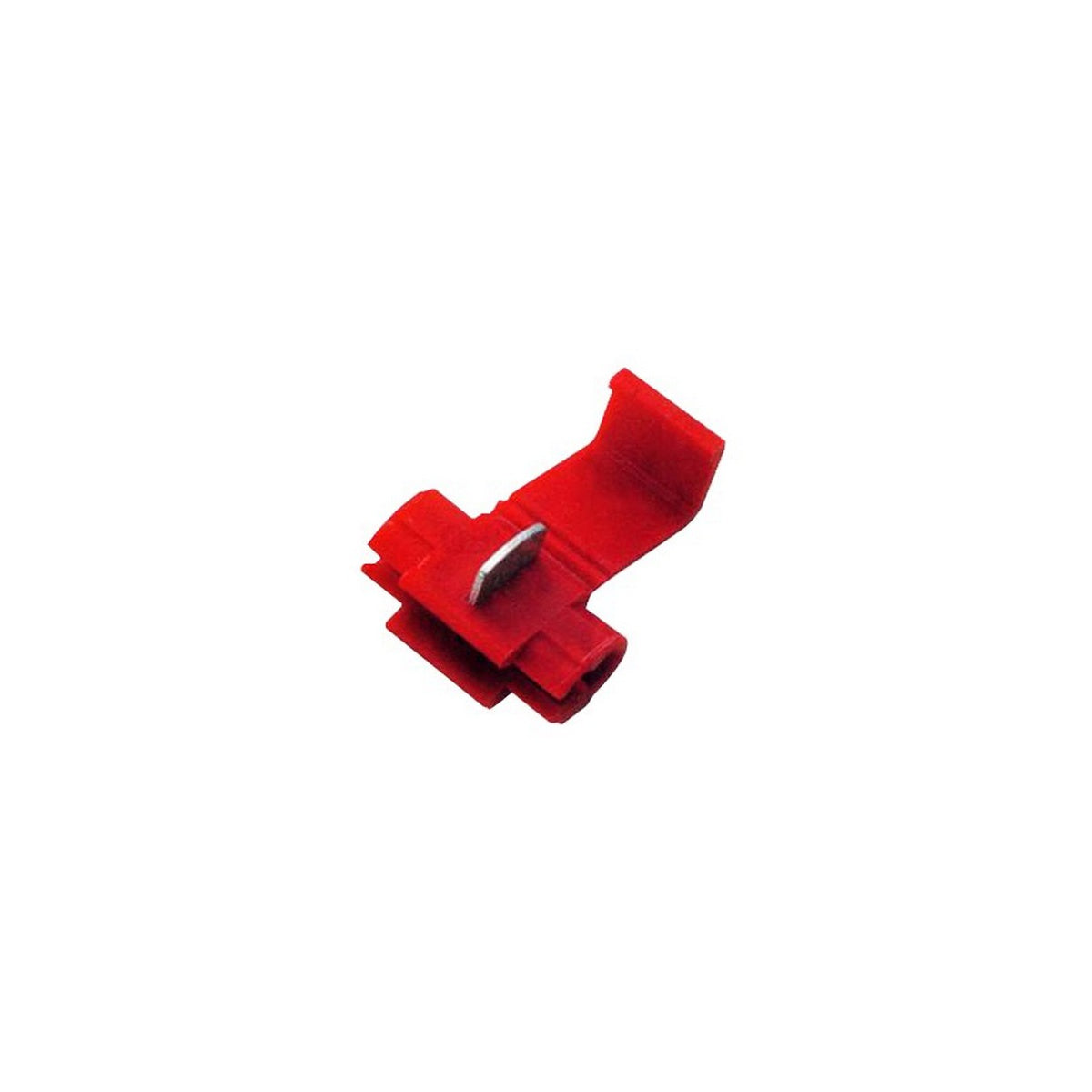

Quick Splice Connectors 22-18 Awg - Insulation Displacement Splice

The Quick Splice Connectors 22-18 Awg by Morris Products are designed for fast, reliable wire splicing without the need for stripping insulation. These pre-insulated insulation displacement splice connectors enable tapping onto existing conductors without service interruption, making them suitable for electrical distributors and switchgear suppliers handling wire and cable connections in lighting solutions and other electrical applications.

Specifications

• Insulation Type: Polypropylene
• Material: Brass
• Finish: Electro-tin plated
• Color: Red
• Wire Range: 22-18 AWG
• Length: 1.063 inches
• Width: 0.787 inches
• Height: 0.51 inches
• Temperature Rating: 150°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps
• UL Listed: Yes
• cUL Listed: Yes
• RoHS Compliant: Yes

Features

• Pre-insulated insulation displacement splice and tap
• Allows tapping onto existing conductors without service interruption
• UL Listed for use with solid or stranded copper wire

Downloads & Links

• Spec Sheet
