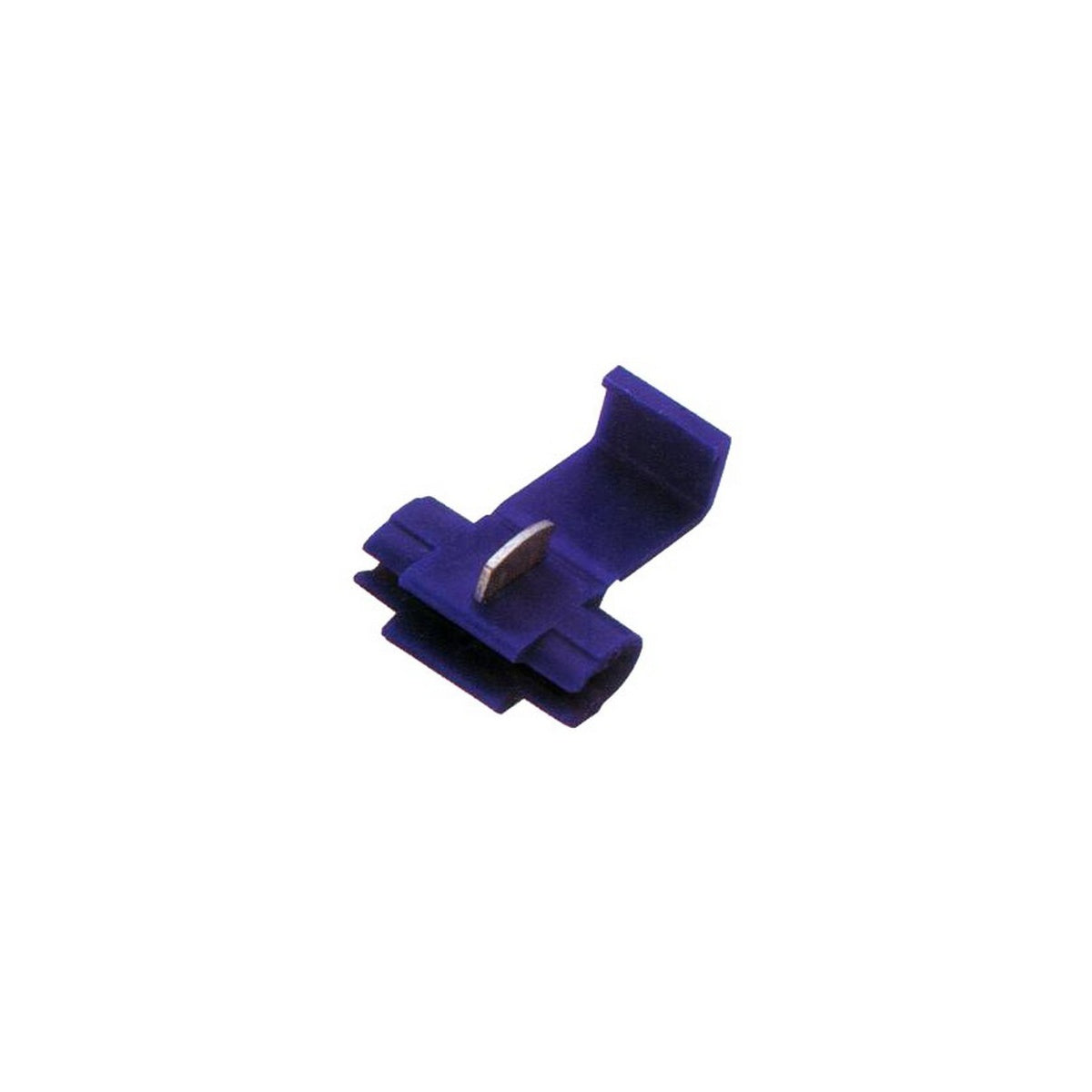

Quick Splice Connectors 18-14 Awg – Insulation Displacement Splice

The Quick Splice Connectors 18-14 Awg by Morris Products are designed for fast, reliable wire connections without the need for wire stripping. These pre-insulated insulation displacement splice connectors enable tapping onto existing conductors without interrupting service, making them suitable for electrical distributors and switchgear suppliers requiring efficient wire and cable solutions.

Specifications

• Wire Range: 18-14 AWG
• Material: Brass
• Insulation Type: Polypropylene
• Finish: Electro-tin plated
• Color: Blue
• Length: 1.063 inches
• Width: 0.787 inches
• Height: 0.51 inches
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 14 AWG ‚Äì 15 Amps, 16 AWG ‚Äì 10 Amps, 18 AWG ‚Äì 7 Amps
• Certifications: UL, cUL, RoHS

Features

• Pre-insulated insulation displacement splice/tap for quick installation
• Allows tapping onto existing conductors without service interruption
• UL listed for use with solid or stranded copper conductors

Downloads & Links

• Spec Sheet
