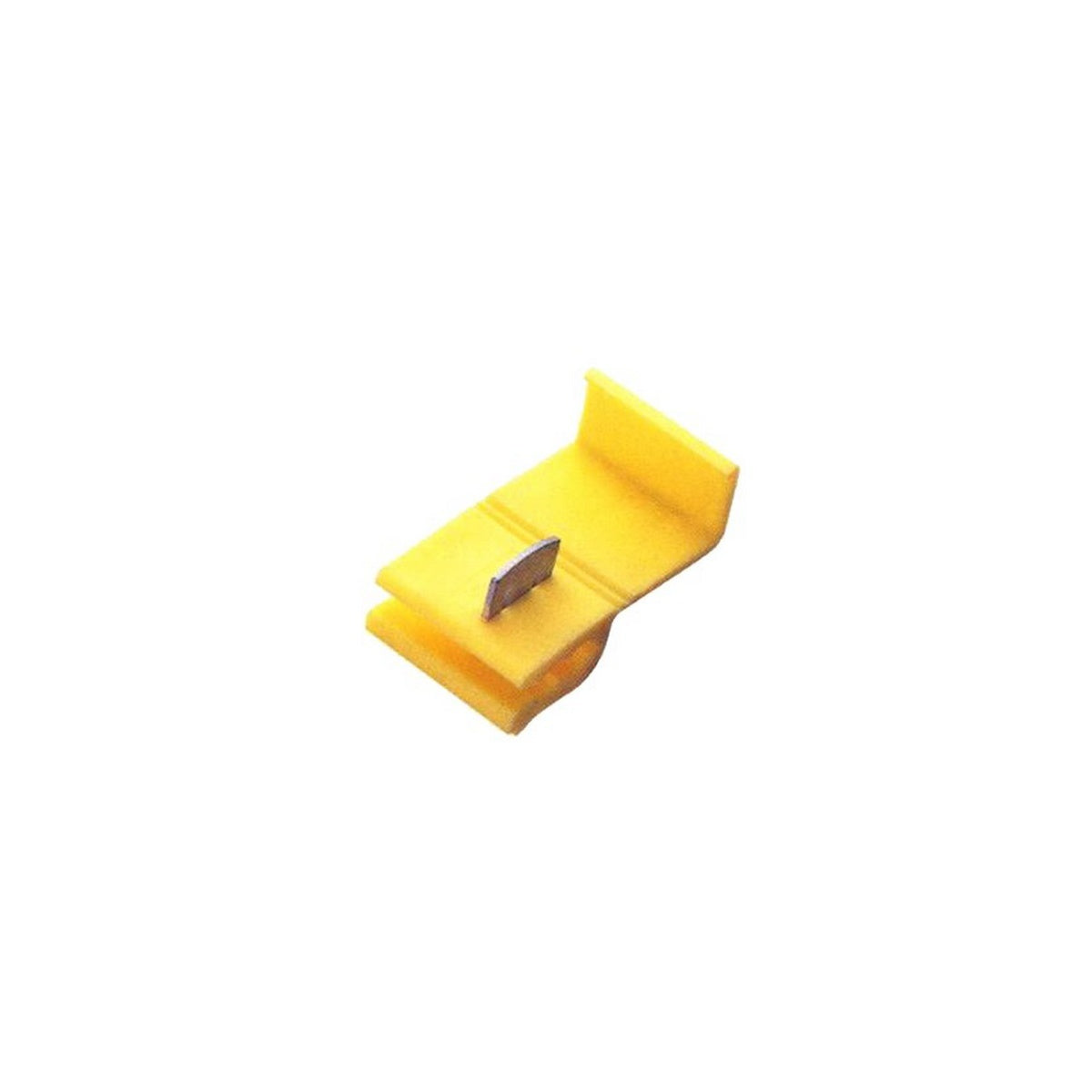

Quick Splice Connectors 12-10 Awg – Insulation Displacement Splice

The Quick Splice Connectors 12-10 Awg by Morris Products provide a fast and reliable solution for wire insulation displacement splicing. Designed for use by electrical distributors and switchgear suppliers, these connectors enable tapping onto existing conductors without service interruption, making them suitable for various wire and cable applications in lighting solutions and electrical installations.

Specifications

• Wire Range: 12-10 AWG
• Insulation Type: Polypropylene
• Material: Brass
• Finish: Electro-tin plated
• Color: Yellow
• Length: 1.358 inches
• Width: 0.807 inches
• Height: 0.51 inches
• Temperature Rating: 150¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 14 AWG - 15 Amps, 16 AWG - 10 Amps, 18 AWG - 7 Amps
• UL Listed: Yes
• cUL Listed: Yes
• RoHS Compliant: Yes

Features

• Pre-insulated insulation displacement splice/tap
• Allows tapping onto existing conductors without interrupting service
• UL Listed for use with both solid and stranded copper conductors
