QF200FW Quartz Halogen Flood Light

The QF200FW is a high-quality quartz halogen flood light designed for outdoor lighting applications. It is suitable for electrical distributors and lighting solutions providers seeking durable and efficient flood lighting with reliable performance. This fixture features a die-cast aluminum housing and tempered shock-resistant glass lens, making it ideal for wet locations and installations requiring robust construction. It operates at 200 watts, providing 3,600 lumens with an efficacy of 18 lumens per watt, suitable for wire and cable installations and switchgear supplier projects.

Specifications

• Input Wattage: 200 watts
• Lumens: 3,600 lumens
• Efficacy: 18 lumens per watt
• Lens Material: Thermal Tempered Shock Resistant Glass
• Product Weight: 1.6 lbs

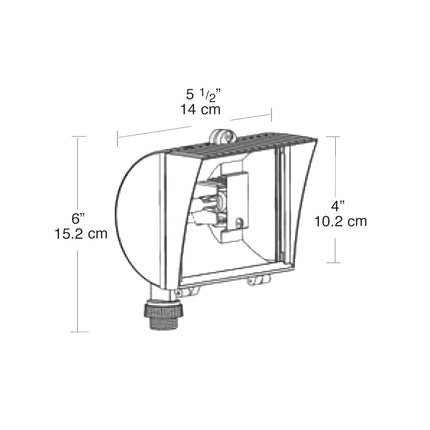

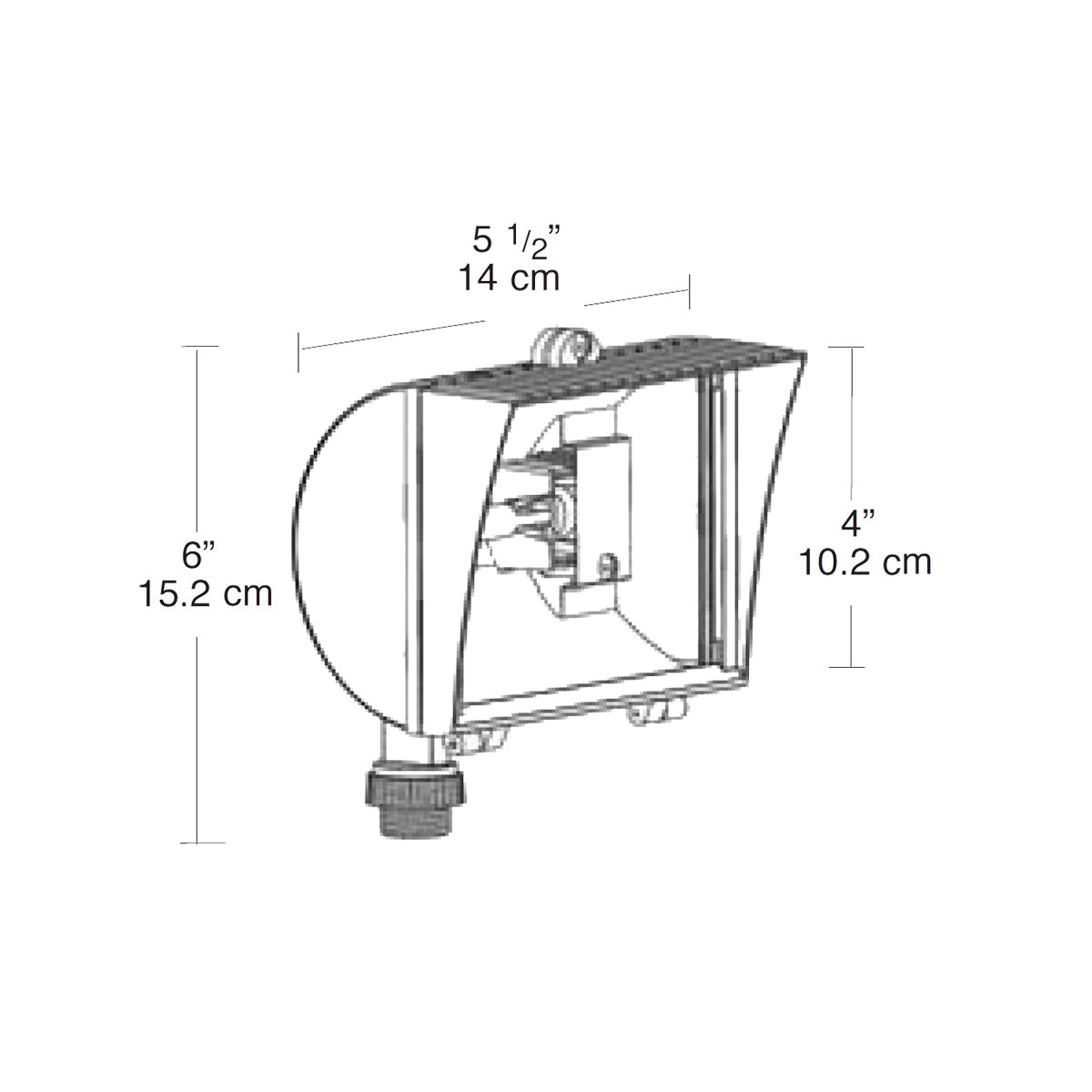

• Dimensions: 6" (15.2 cm) height x 5 ½" (14 cm) width x 4" (10.2 cm) depth
• Housing: Die-cast aluminum with ½" NPS threaded arm and locking swivel
• Reflector: Semi-specular anodized aluminum
• Socket: Porcelain RSC base with gold plated spring loaded contacts and 250°C Teflon insulated wires
• Lens Gasket: High-temperature silicone gasket
• Finish: Chip and fade resistant polyester powder coat
• UL Listed: Suitable for wet locations and mounting within 4 ft (1.2 m) of the ground

Features

• Tempered, shock resistant glass lens
• Silicone gasket remains in place during relamping
• High quality 130 volt quartz halogen lamp for extended life
• Stainless steel external hardware and vandal proof screw capability
• Integral hood glare shield for friendly lighting when properly aimed
• Fins for heat dissipation and extended lamp life
