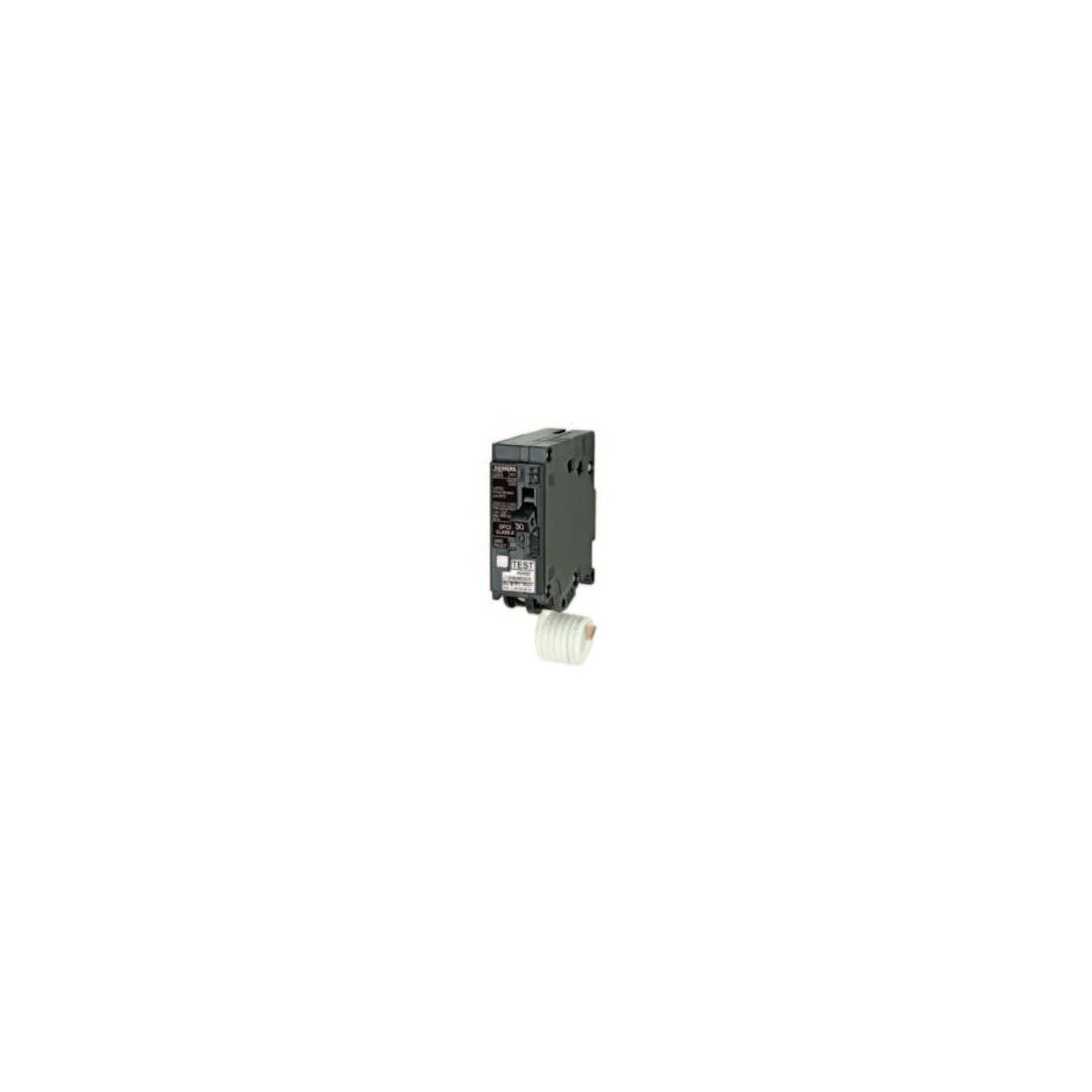

QF115AN Miniature Circuit Breaker – Ground Fault Circuit Interrupter

The Siemens QF115AN Miniature Circuit Breaker is a 1-pole, 15-ampere ground fault circuit interrupter (GFCI) designed for personal protection applications. It provides reliable electrical protection by detecting ground faults with a sensitivity of 5mA and automatically interrupting the circuit to prevent electrical shock hazards. This device features plug-on mounting and plug-in connection, making it suitable for integration by electrical distributors and switchgear suppliers focused on lighting solutions, wire and cable protection, and general electrical safety.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: QF115AN
• Current Rating: 15 amperes
• Number of Poles: 1
• Mounting Type: Plug-In
• Connection: Plug-In
• Dimensions (HxWxL): 3.5 in x 1 in x 3 in
• Product Weight: 0.2400 lbs
• Application: Personal Protection
• UPC: 804766906695

Features

• Ground Fault Circuit Interrupter with 5mA sensitivity for enhanced personal protection
• Self-Test feature complies with UL 943 requirements, automatically and continuously testing the device for proper operation
• If a fault or compromise is detected, the breaker trips automatically to maintain safety
• Compact miniature design suitable for residential and commercial electrical panels
• Plug-on mounting and plug-in connection for straightforward installation and replacement
