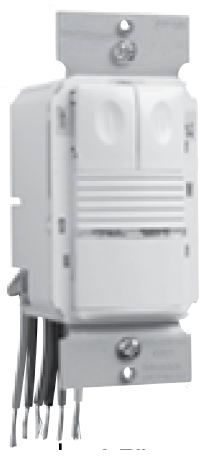

PW-201-LA Wall Switch Occupancy Sensor by WattStopper

The PW-201-LA is a passive infrared wall switch occupancy sensor designed for precise motion detection and energy savings in commercial and residential lighting applications. As a reliable component for electrical distributors and lighting solutions providers, this sensor integrates easily into wire and cable systems and is suitable for use by switchgear suppliers seeking durable occupancy sensing devices.

Specifications

• Manufacturer: WattStopper
• Manufacturer Part #: PW-201-LA
• Mounting Type: Wall
• Finish: Light Almond
• Coverage: 180¬∞, up to 1050 sq. ft.; major motion 35' x 30'; minor motion 20' x 15'
• Voltage: 120/230/277 VAC, 50/60 Hz
• Load Rating: 0-800W tungsten or ballast at 120VAC, 1/6 HP; 0-1200W ballast at 277VAC
• Sensor Type: Passive Infrared (PIR) with neutral
• Product Weight: 3.65 lbs
• UPC: 754182923618
• Certifications: cULus listed
• Warranty: 5 years

Features

• Detection signature processing eliminates false triggers and provides immunity to RFI and EMI
• Zero-crossing relay for extended relay life
• Vandal-resistant lens for precise coverage and durability
• Selectable Auto-ON or Manual-ON operation modes
• Auto adjustable time delays: automatic, fixed (5, 10, 15, 20, 25, or 30 minutes), walk-through, and test modes
• Selectable audible alert for impending shutoff
• Walk-through mode turns lights off 3 minutes after initial occupancy for brief visits
• LED indicates occupancy detection status
• Built-in light level sensing with simple one-step setup
• Override mode allows sensor to operate as a service switch in case of failure
• Sensitivity adjustment for PIR sensor (high/low)
