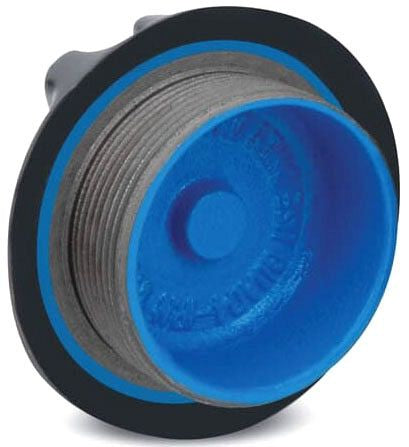

PVC CTD CVR 1/2 TO 1IN IRON GRAY Conduit Box Cover

This PVC double-coated iron cover is designed for hazardous location fittings within the GUA series, suitable for pipe sizes ranging from 1/2 inch (16 metric) to 1 inch (27 metric). It features a cover opening of 3.00 inches (76.20 millimeters) and is constructed from iron alloy with a gray finish. The product is ideal for electrical distributors and switchgear suppliers requiring durable, corrosion-resistant covers for conduit systems used in demanding environments.

Specifications

• Material: Iron
• Color: Gray
• Finish: PVC Coated
• Pipe Size Range: 1/2 to 1 inch (16 to 27 metric)
• Cover Opening: 3.00 inches (76.20 millimeters)
• Product Weight: 1.31 lbs
• Knockouts: Yes

Features

• Double-coated with nominal 0.040" (40 mil) PVC bonded to exterior for corrosion protection
• Gray PVC coating provides UV resistance and durability in wet and hazardous locations
• Designed for use in rigid conduit systems indoors or outdoors
• Compatible with hazardous location fittings within the GUA series
• Provides easy access for maintenance and future system changes
