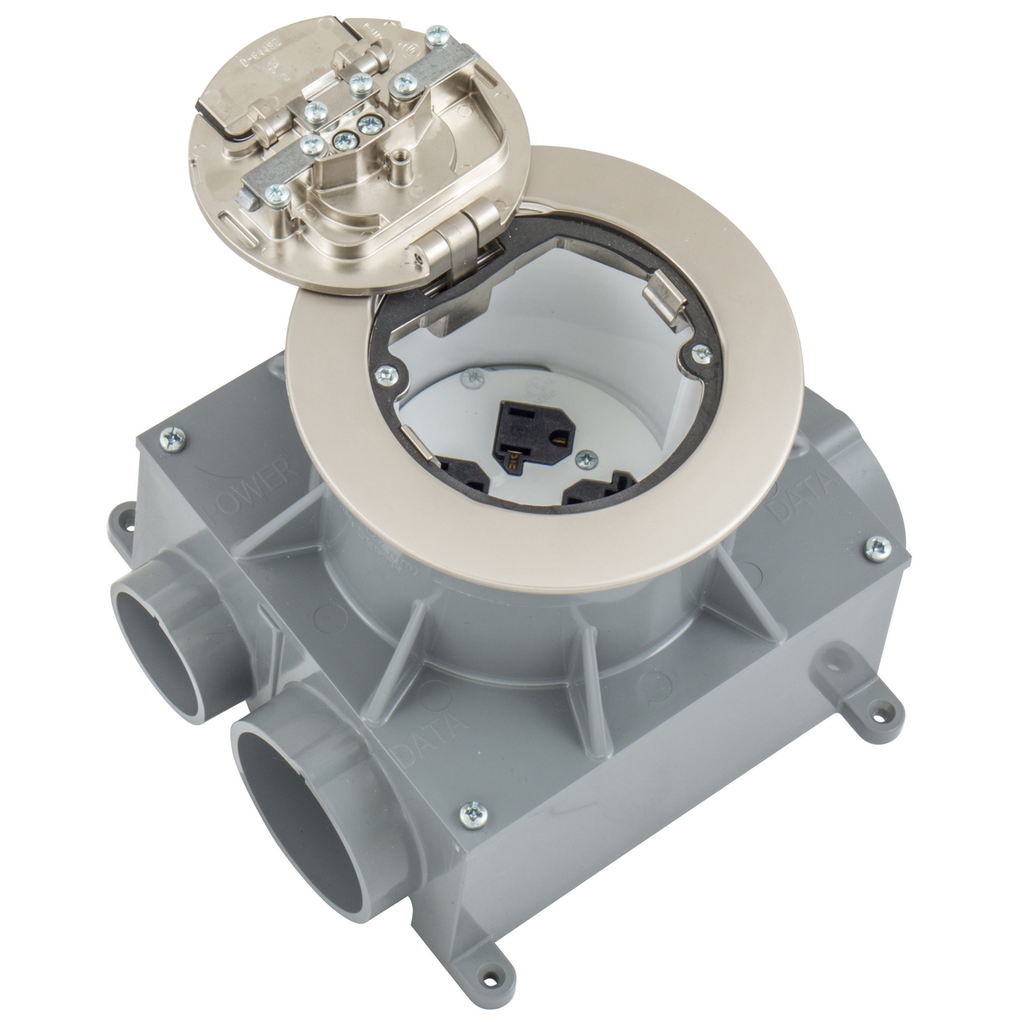

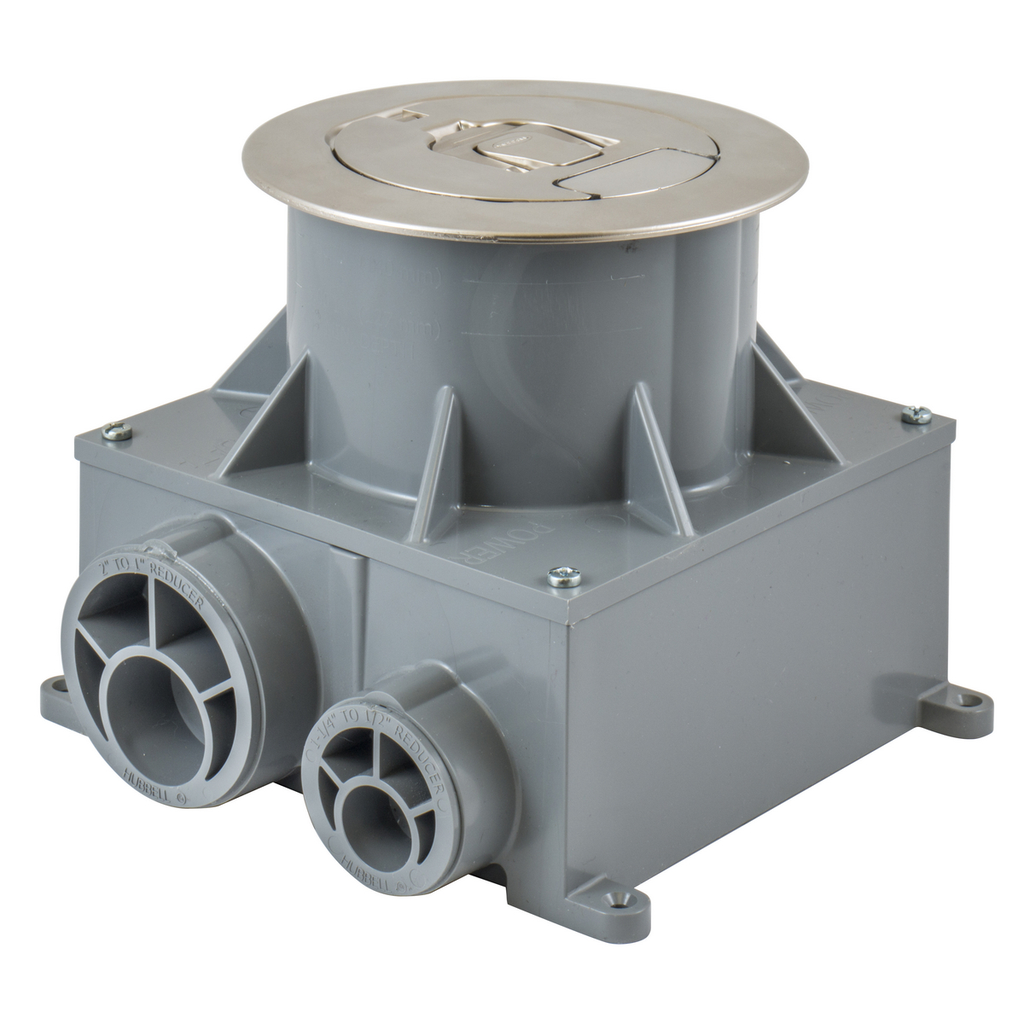

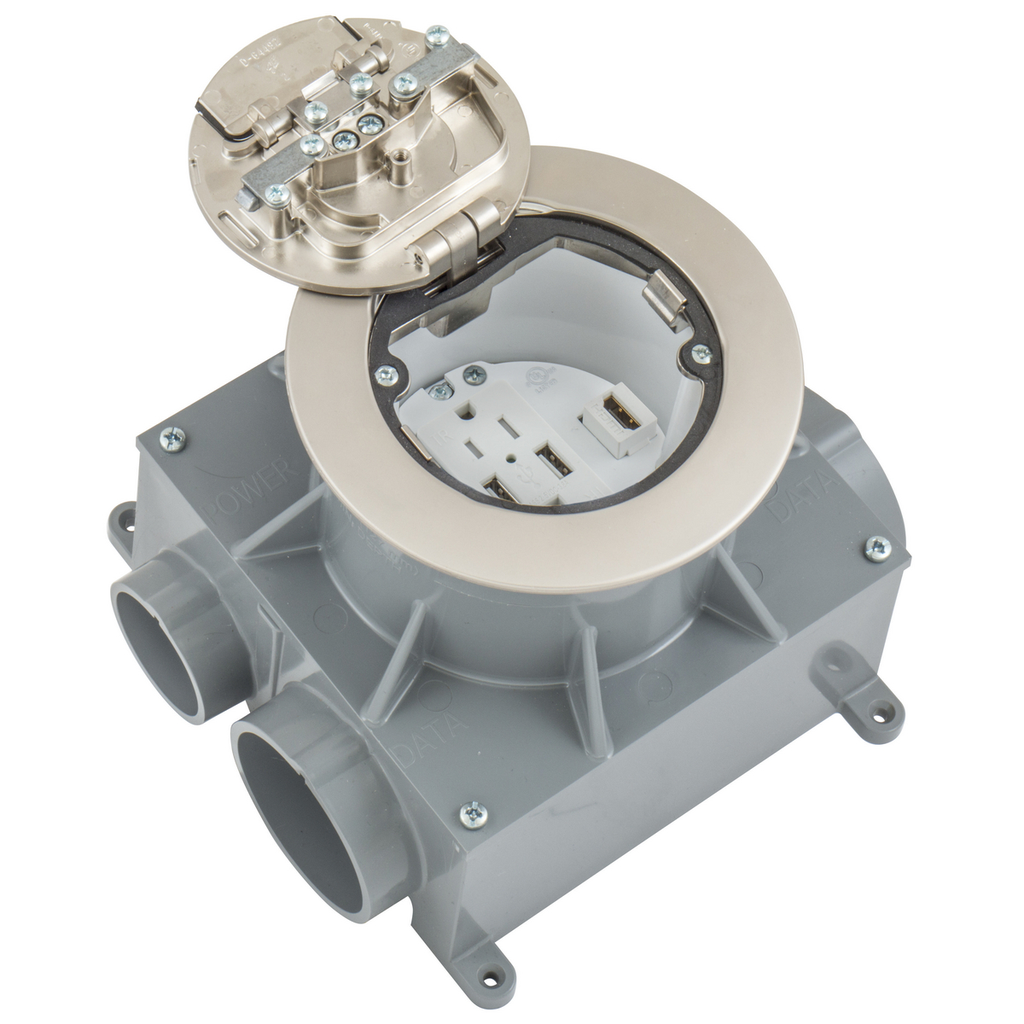

PVC Box, 4" CFBS1R4 Series – Concrete Floorbox for Electrical Distribution

This PVC recessed floor box is designed for use in concrete floors, providing a durable and reliable solution for electrical wiring installations. Suitable for applications requiring a minimum 5.00" depth of concrete pour, it supports multi-service wiring and is ideal for electrical distributors and lighting solutions requiring embedded wire and cable management. The product is constructed from thermoplastic material and intended for cast-into-slab mounting.

Specifications

• Application: For Use in Concrete Floors
• Material: Thermoplastic
• Color: Gray
• Width: 6.45 in
• Height: 6 in
• Length: 7.85 in
• Product Weight: 5.0690 lbs
• Mounting: Cast into Slab
• Knockouts: 2) 1/2"- 1 1/4", 2) 1" - 2"
• Cable Entry: Through Cover
• Cubic Capacity: 67 Cubic Inches
• Country of Origin: Puerto Rico
• Manufacturer Part #: CFBS1R4PFB

Features

• Designed for recessed installation in concrete floors with a minimum 5.00" depth of pour
• Includes multiple conduit knockouts to accommodate various conduit sizes
• Compatible with S1R4SP series subplates and CFBS1R4CVR series round covers (sold separately)
• cULus Listed and compliant with UL 514C and CSA C22.2 No. 85-14 standards
• Durable thermoplastic construction suitable for embedded electrical wiring applications
• Provides separate conduit sockets for power (1-1/4") and data (2") wiring
