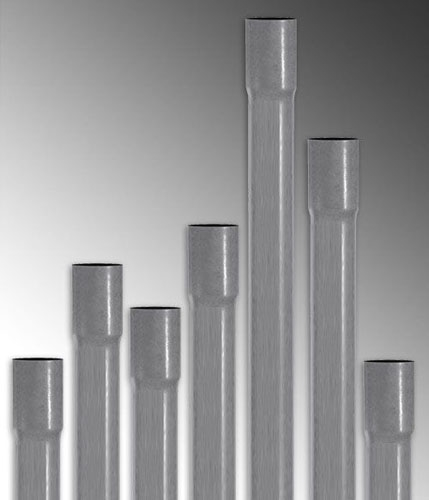

The PVC 4-IN-PVC-SCHED-80-10 feet CONDUIT provides durable plastic pipe conduit protection for electrical wiring in heavy-duty industrial use applications. This rigid Schedule 80 PVC conduit delivers superior crush resistance and physical protection for installations exposed to high stress environments or requiring enhanced mechanical protection.
- Material: Schedule 80 PVC for maximum impact strength and durability
- Dimensions: 4 inches diameter with 10-foot length for extensive coverage
- Resistance: High chemical and moisture resistance for long-term reliability in outdoor applications
- Installation: Compatible with standard PVC fittings and solvent welding methods, cost-effective pricing compared to metallic alternatives
- Compliance: Manufactured to meet electrical code requirements for non-metallic raceway systems and rigid pipe applications
Features
- Commercial, Industrial and Utility Usage
- Corrosion-Resistant
- Non-Magnetic and Non-Galvanic
- Self-Extinguishing
- Impact-Resistant
- Sunlight Resistant
Additional Information
- Constructional Feature Corrosion Resistant, Impact Resistant, Sunlight Resistant
- Temperature Rating 90 Deg C
- Application Industrial, Commercial and Utility Usage
Specifications
- Type: Extra Heavy Wall
- Trade Size: 4 Inch
- Length: 10 Foot
- Inner Diameter: 3.737 Inch
- Outer Diameter: 4.5 Inch
- Wall Thickness: 0.377 Inch
- End Style: Belled
- Schedule: 80 S
- Installation: Direct Burial/Concrete Encasement
- Material: PVC
- Approval: UL 651, ETL
- Applicable Standard: NEMA TC-2, WC1094A
