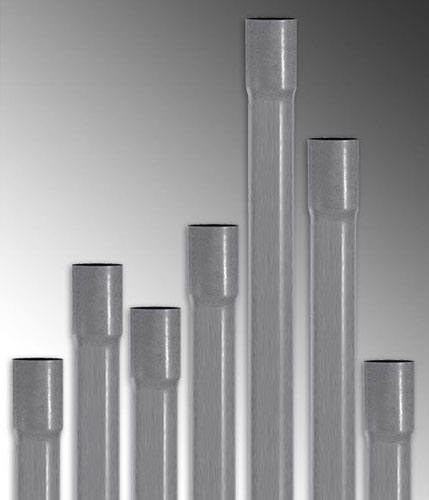

The PVC 2 inches PVC Schedule 80 10 feet Conduit provides heavy-duty protection for electrical wiring in demanding industrial applications. This plastic pipe offers superior wall thickness and crush resistance for installations requiring enhanced mechanical protection and chemical resistance.

• Rating: Schedule 80 specification for maximum durability and impact strength
• Dimensions: 2 inchesch diameter with 10-foot length for efficient installation
• Material: High-strength rigid PVC plastic for corrosion resistance
• Installation: Compatible with standard PVC fittings, connectors and cement systems for flexible application options
• Compliance: Manufactured to meet applicable electrical code requirements

Cost-effective and long-lasting, this PVC pipe provides reliable protection for your electrical installation needs with flexible pricing options to suit your budget.

This Schedule 80 PVC conduit pipe protects electrical wiring in demanding industrial and utility applications. Built with an extra heavy wall, this rigid plastic tube offers superior protection through its corrosion-resistant, non-magnetic, and self-extinguishing properties for outdoor use in underground or embedded installations.

• End design: Belled end connector design eliminates the need for additional coupling components during installation
• Dimensions: 10 foot length with 2 inch trade size and 0.218 inch wall thickness for maximum durability
• Diameter specifications: 1.881 inch inner diameter and 2.375 inch outer diameter
• Heat rating: Withstands temperatures up to 90 degrees Celsius for reliable performance
• Compliance: Meets UL 651, ETL, NEMA TC-2, and WC1094A standards for safety and quality assurance, providing cost-effective heavy-duty protection for electrical wiring
• Includes: Compatible with standard PVC fittings for complete installation

Features

• Commercial, Industrial and Utility Usage
• Corrosion-Resistant
• Non-Magnetic and Non-Galvanic
• Self-Extinguishing
• Impact-Resistant
• Sunlight Resistant

Additional Information

• Constructional Feature Corrosion Resistant, Impact Resistant, Sunlight Resistant
• Temperature Rating 90 Deg C
• Application Industrial, Commercial and Utility Usage

Specifications

• Type: Extra Heavy Wall
• Trade Size: 2 Inch
• Length: 10 Foot
• Inner Diameter: 1.881 Inch
• Outer Diameter: 2.375 Inch
• Wall Thickness: 0.218 Inch
• End Style: Belled
• Schedule: 80 S
• Installation: Direct Burial/Concrete Encasement
• Material: PVC
• Approval: UL 651, ETL
• Applicable Standard: NEMA TC-2, WC1094A
