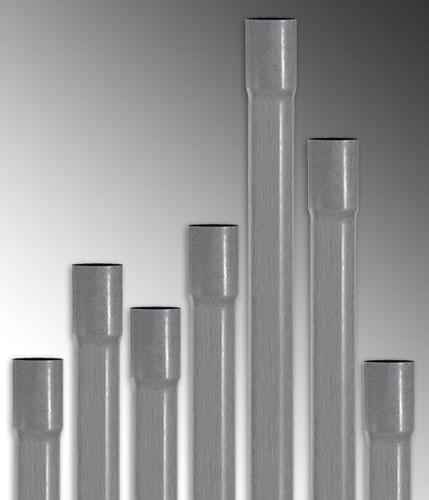

The PVC 2-IN-PVC-SCHED-40-10 feet CONDUIT provides reliable protection for electrical wiring in underground and concealed installations. This Schedule 40 PVC rigid plastic conduit pipe is manufactured for durability in industrial, and utility applications where code-compliant wiring protection is required.
- Dimensions: Supplied in 10 foot lengths with 2 inches trade size for standardized installations
- Build: Features Schedule 40 wall thickness for structural integrity in embedded applications
- Connection design: Includes belled end fitting for direct joining without additional coupling components or connector accessories
- Compliance and temperature performance: Manufactured to meet relevant electrical code requirements for nonmetallic raceways and engineered for stability within specified environmental temperature ranges at a cost-effective pricing point
- Installation: Ideal for professional conduiting applications as part of a complete conduit system
Features
- Commercial, Industrial and Utility Usage
- Corrosion-Resistant
- Non-Magnetic and Non-Galvanic
- Self-Extinguishing
- Impact-Resistant
- Sunlight Resistant
Additional Information
- Constructional Feature Corrosion Resistant, Impact Resistant, Sunlight Resistant
- Temperature Rating 90 Deg C
- Application Industrial, Commercial and Utility Usage
Specifications
- Type: Heavy Wall
- Trade Size: 2 Inch
- Length: 10 Foot
- Inner Diameter: 2.021 Inch
- Outer Diameter: 2.375 Inch
- Wall Thickness: 0.154 Inch
- End Style: Belled
- Schedule: 40 S
- Installation: Direct Burial/Concrete Encasement
- Material: PVC
- Approval: UL 651, ETL
- Applicable Standard: NEMA TC-2, WC1094A
