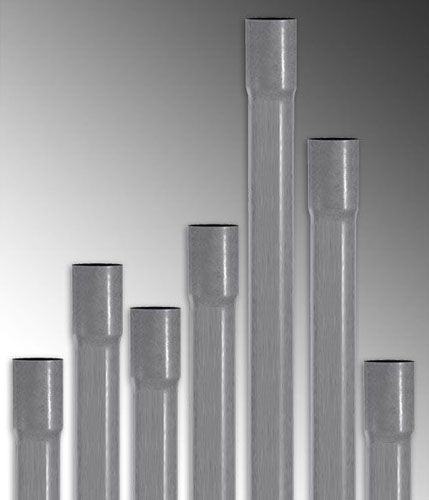

The PVC 1-1/4-PVC-SCHED-80-10 feet CONDUIT provides durable protection for electrical wiring in industrial applications. This Schedule 80 plastic conduit offers superior impact resistance and compression strength for installations requiring enhanced physical protection.
- Material: Heavy-duty PVC with Schedule 80 wall thickness
- Length: Standard ten-foot section with one and one-quarter inch interior diameter for efficient installation
- Durability: Resistant to corrosion, moisture, and chemical exposure
- Compliance: Manufactured to meet rigid industry standards for electrical conduit pipe fitting
- Compatibility: Designed to work with standard conduit connectors for complete electrical raceway systems
Features
- Commercial, Industrial and Utility Usage
- Corrosion-Resistant
- Non-Magnetic and Non-Galvanic
- Self-Extinguishing
- Impact-Resistant
- Sunlight Resistant
Additional Information
- Constructional Feature Corrosion Resistant, Impact Resistant, Sunlight Resistant
- Temperature Rating 90 Deg C
- Application Industrial, Commercial and Utility Usage
Specifications
- Type: Extra Heavy Wall
- Trade Size: 1-1/4 Inch
- Length: 10 Foot
- Inner Diameter: 1.227 Inch
- Outer Diameter: 1.66 Inch
- Wall Thickness: 0.191 Inch
- End Style: Belled
- Schedule: 80 S
- Installation: Direct Burial/Concrete Encasement
- Material: PVC
- Approval: UL 651, ETL
- Applicable Standard: NEMA TC-2, WC1094A
