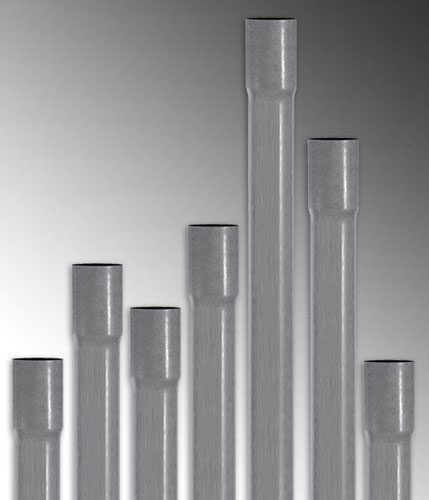

This Schedule 80 polyvinyl chloride conduit pipe provides superior protection for electrical wiring in demanding industrial and utility applications. The thick-walled plastic PVC design delivers enhanced durability and crush resistance for installations requiring higher mechanical protection.
- Dimensions: Supplied in 10 feet lengths with 1.5 inches trade size
- Design: Schedule 80 thick-wall configuration for maximum impact resistance and heavy duty performance
- Installation: Compatible with standard PVC conduit fittings and cement
- Application: Ideal for exposed installations requiring additional protection and manufactured to meet rigid industry standards for electrical conduit
- Cost: Offers competitive pricing for professional-grade conduit protection
Features
- Commercial, Industrial and Utility Usage
- Corrosion-Resistant
- Non-Magnetic and Non-Galvanic
- Self-Extinguishing
- Impact-Resistant
- Sunlight Resistant
Additional Information
- Constructional Feature Corrosion Resistant, Impact Resistant, Sunlight Resistant
- Temperature Rating 90 Deg C
- Application Industrial, Commercial and Utility Usage
Specifications
- Type: Extra Heavy Wall
- Trade Size: 1-1/2 Inch
- Length: 10 Foot
- Inner Diameter: 1.446 Inch
- Outer Diameter: 1.9 Inch
- Wall Thickness: 0.2 Inch
- End Style: Belled
- Schedule: 80 S
- Installation: Direct Burial/Concrete Encasement
- Material: PVC
- Approval: UL 651, ETL
- Applicable Standard: NEMA TC-2, WC1094A
