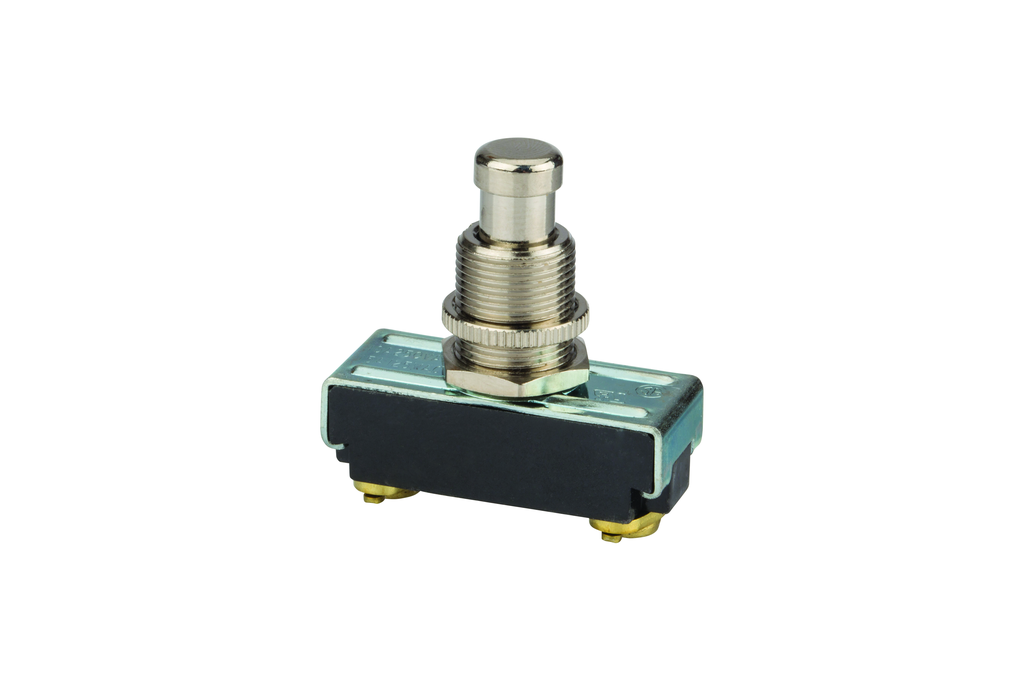

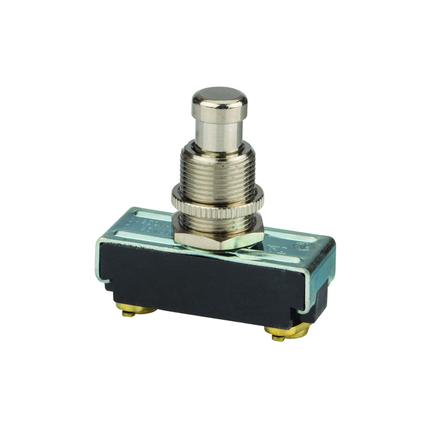

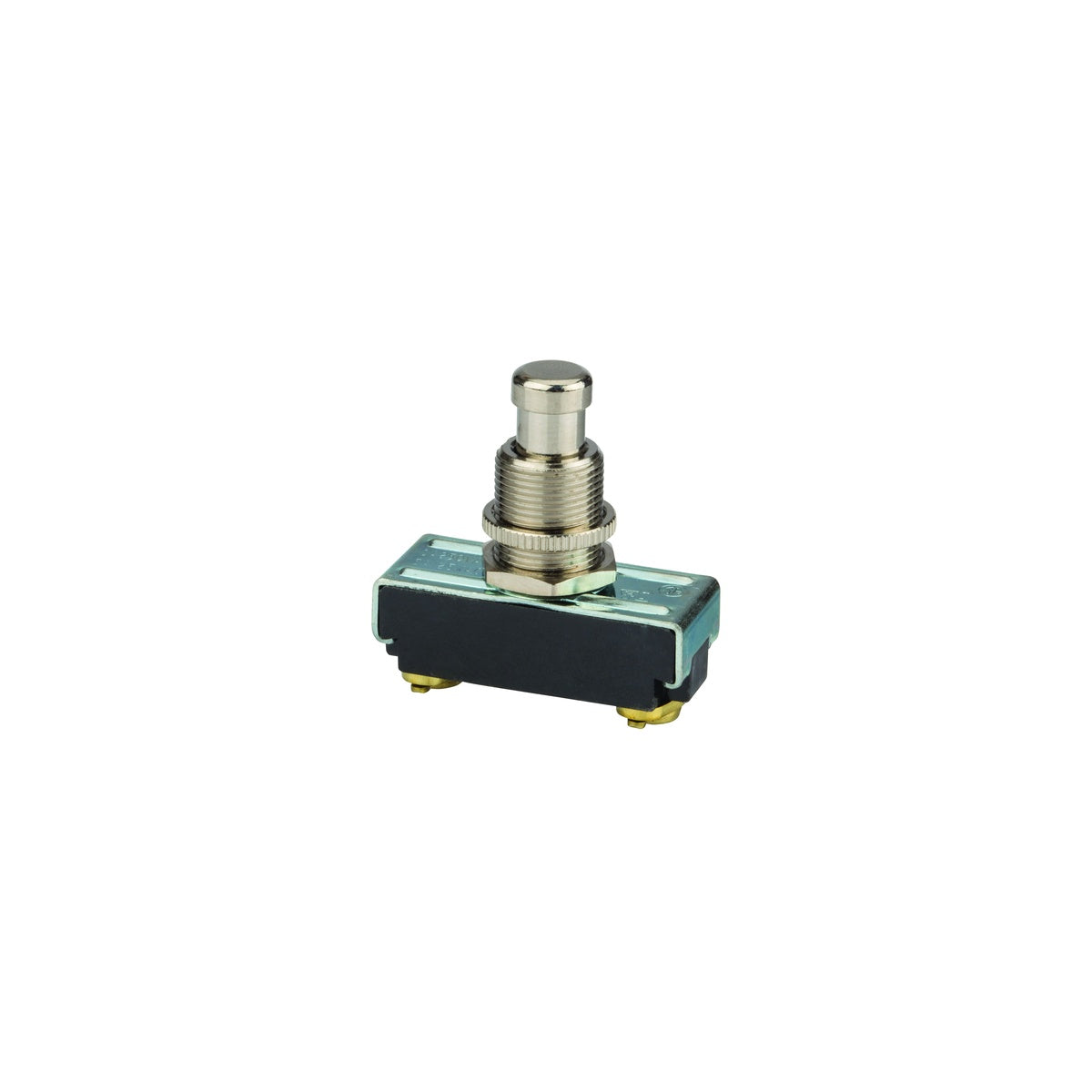

Pushbutton Momentary SPST N.O. 15 Amp - NSI Industries Electrical Switch

This Pushbutton Momentary SPST N.O. switch, manufactured by NSI Industries, is designed for motor-equipment control applications. It features a nickel screw connection and is suitable for use by electrical distributors and switchgear suppliers requiring reliable momentary pushbutton switches for control circuits.

Specifications

• Contact Configuration: SPST Normally Open (N.O.)
• Contact Rating: 15 Amp (125 VAC) - 10 Amp (250 VAC)
• Method of Operation: Push Button
• Mounting: Screw Mount
• Actuator: NSI
• Material: Brass/Nickel
• Dimensions (L x W x H): 1.382 in x 1.382 in x 1.138 in
• Product Weight: 0.0660 lbs
• Country of Origin: Mexico
• Manufacturer Part Number: 76070PS

Features

• Nickel screw connection ensures secure and reliable wiring
• Momentary pushbutton operation for controlled switching
• Compact size suitable for various control panels and equipment
• Durable brass and nickel actuator for long service life

Downloads & Links

• Spec Sheet
