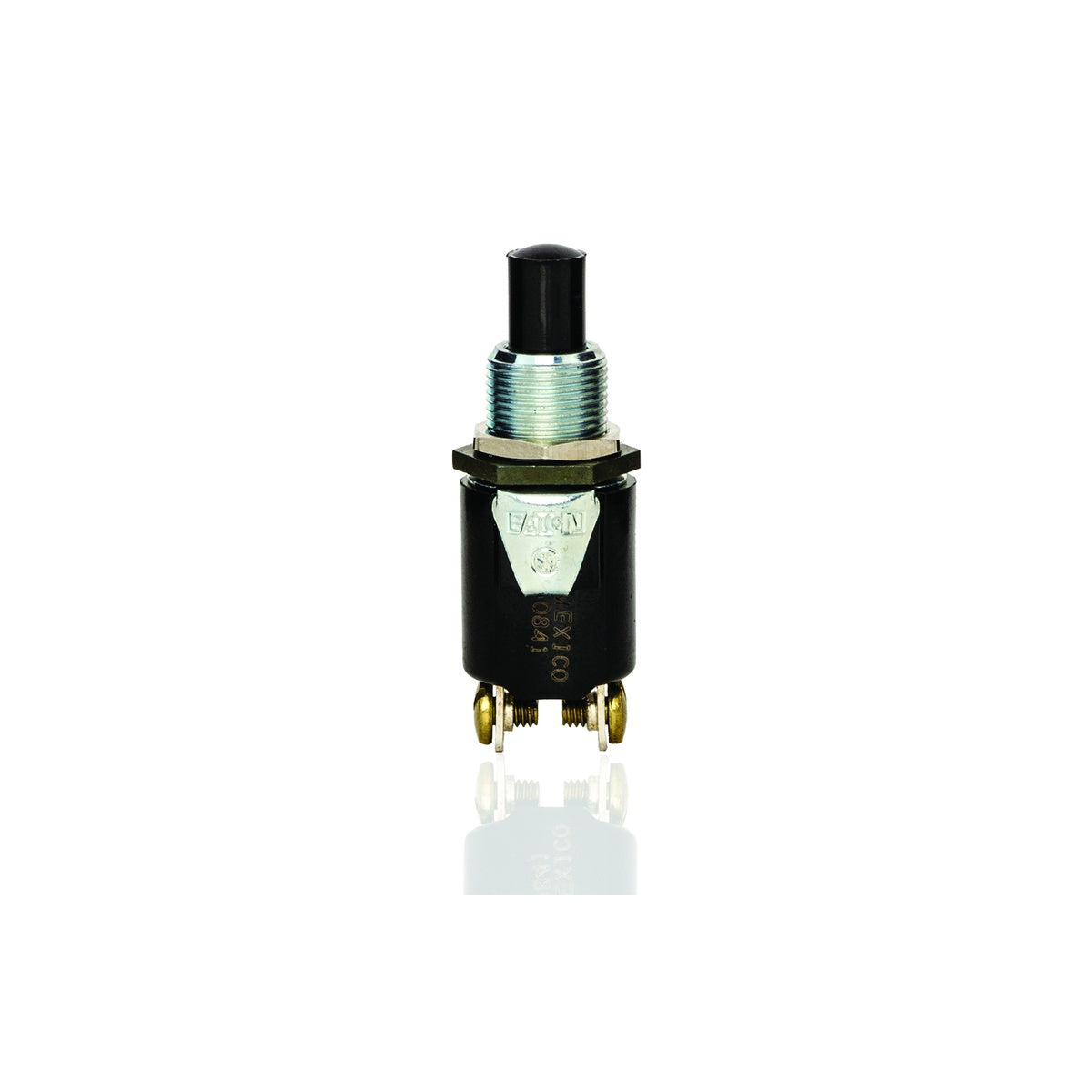

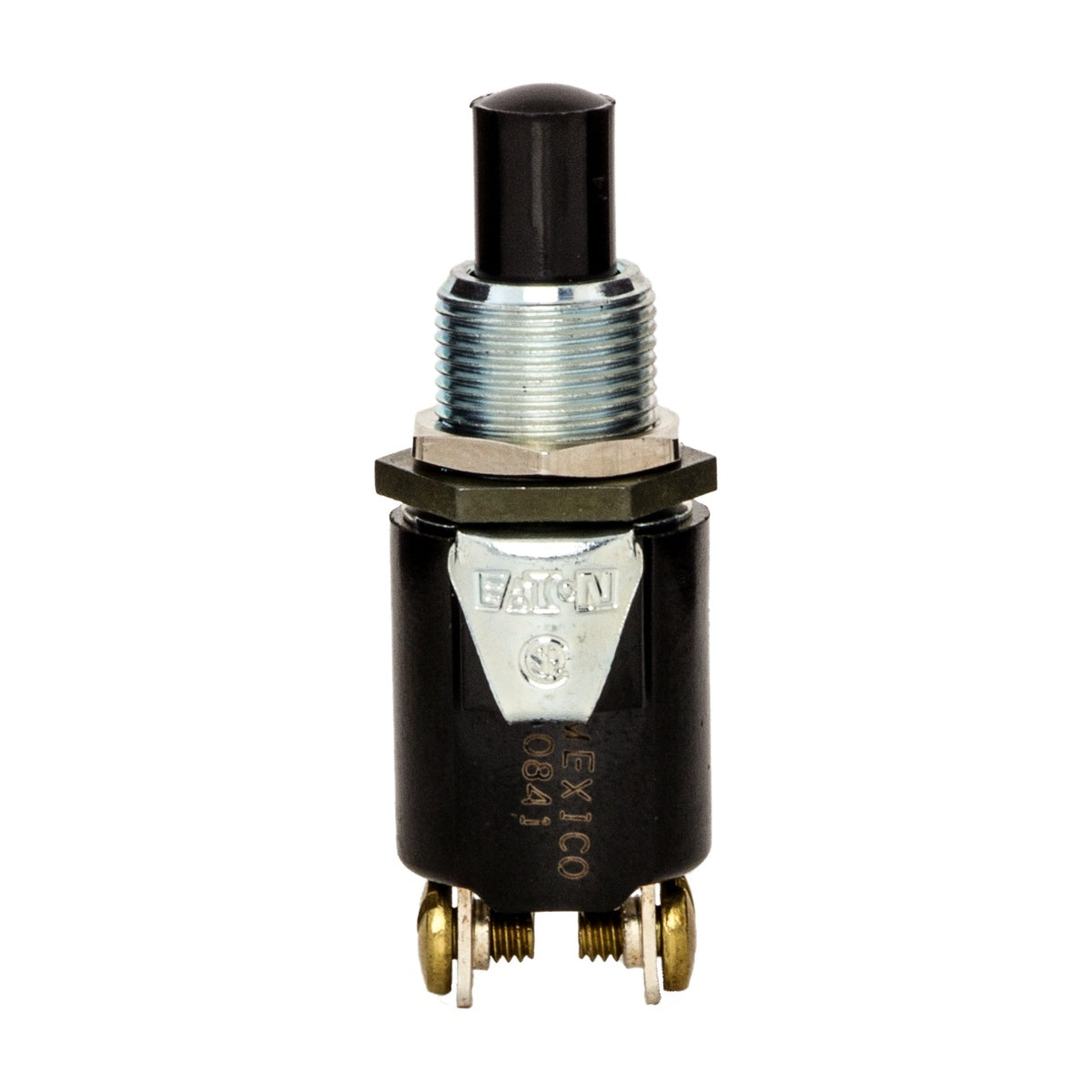

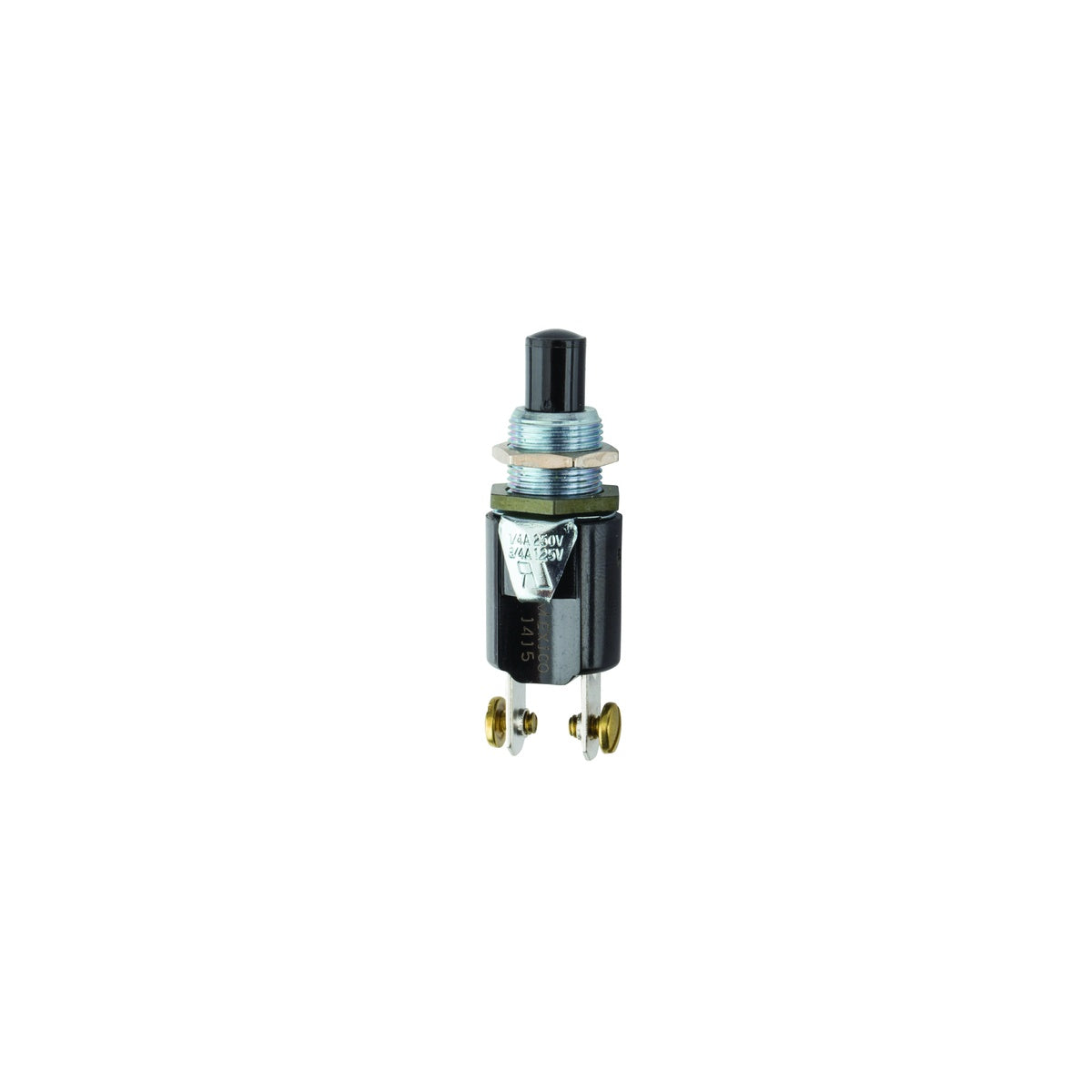

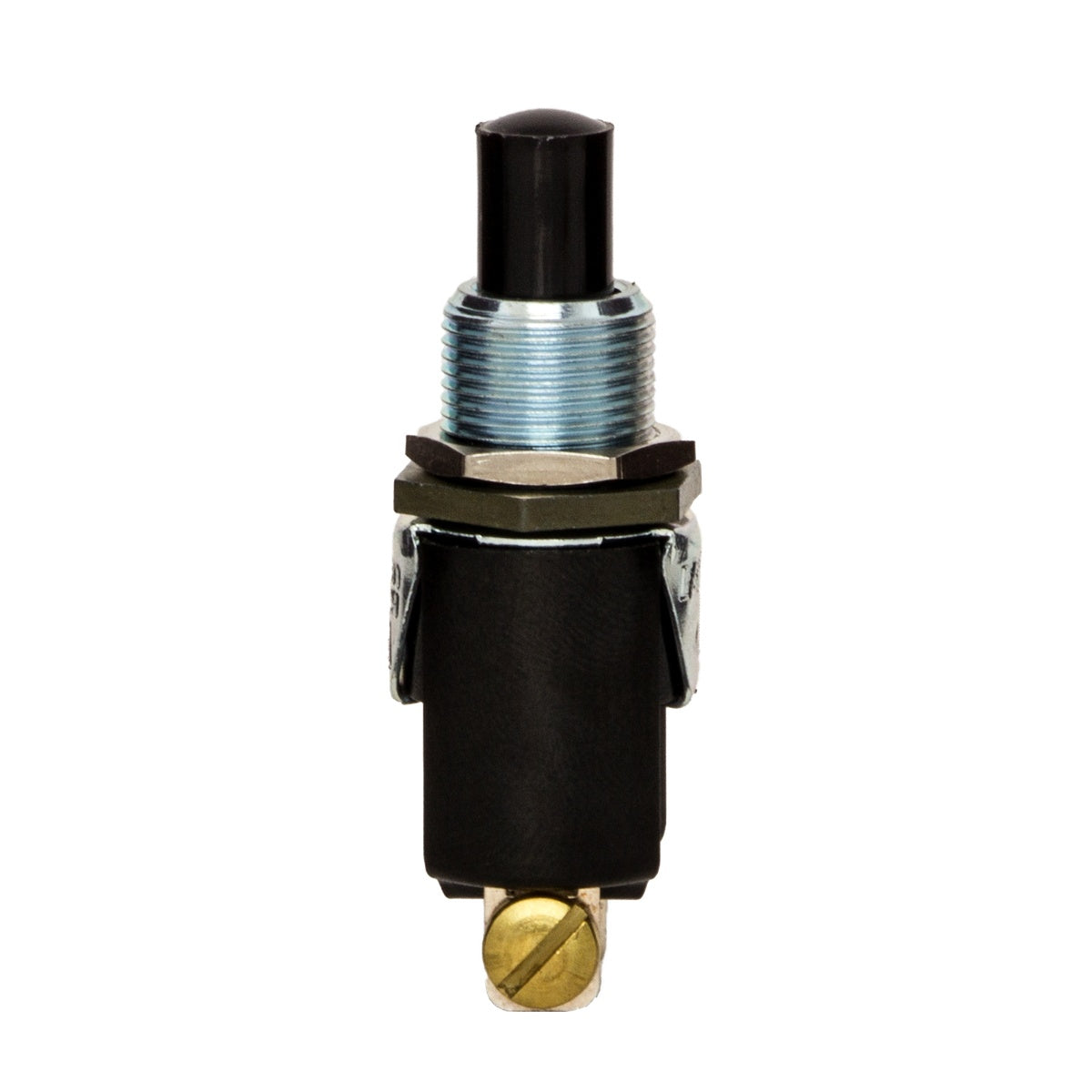

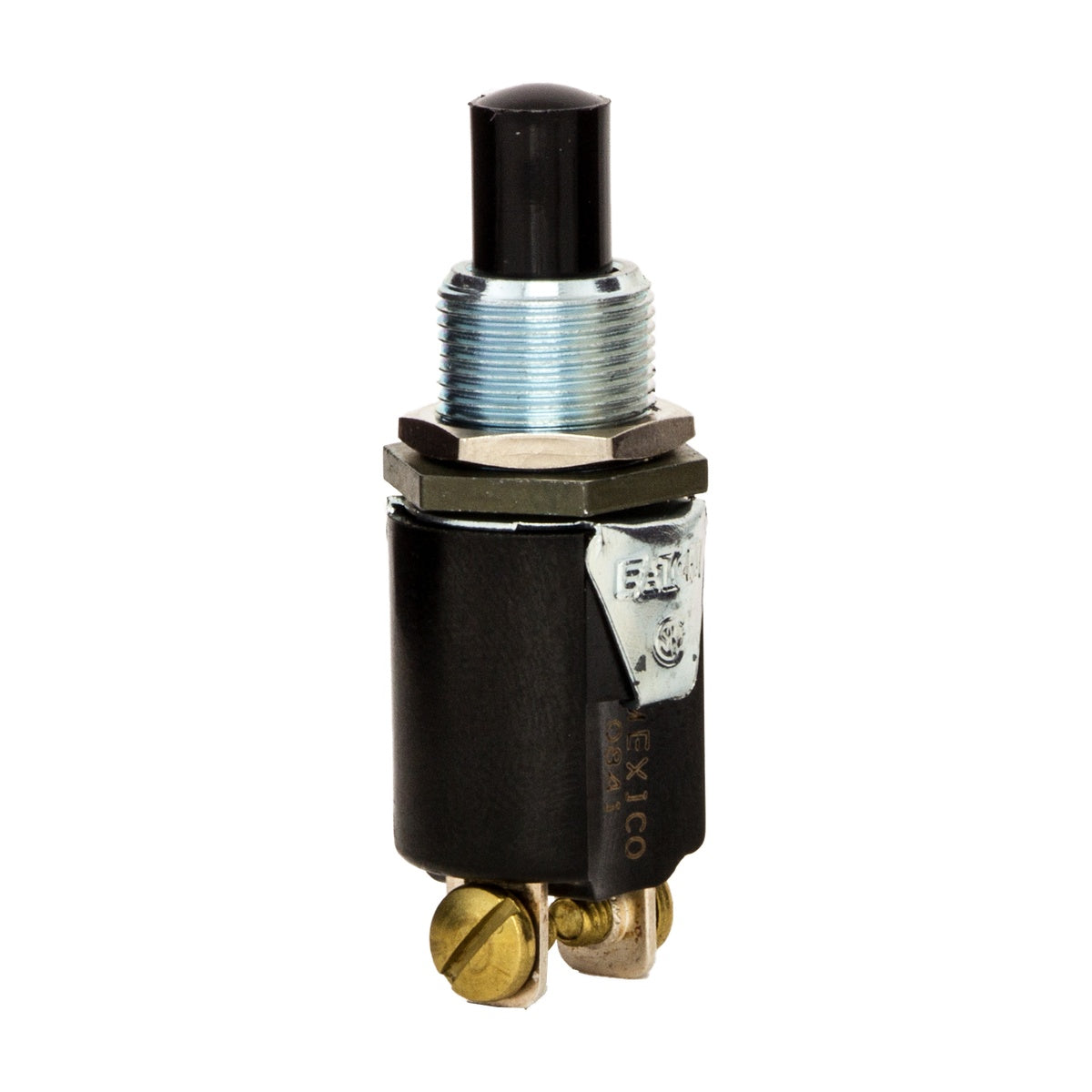

Pushbutton Momentary SPST N.O. Switch

This pushbutton momentary switch is designed for motor-equipment control applications. It features a single-pole single-throw (SPST) normally open contact configuration with nylon screw connections, suitable for use by electrical distributors and switchgear suppliers requiring reliable momentary pushbutton switches.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 76020PS
• Contact Configuration: SPST Normally Open (N.O.)
• Contact Rating: 3/4 Amp (125 VAC), 1/4 Amp (250 VAC)
• Actuator: Push Button
• Mounting: Screw Mount
• Dimensions (inches): Width 0.65, Height 1.95, Length 1.07
• Product Weight: 0.04 lbs
• Country of Origin: Mexico
• Application: Motor-Equipment Control

Features

• Nylon screw connection for secure wiring
• Momentary pushbutton operation for precise control
• Compact design suitable for panel mounting

Downloads & Links

• Spec Sheet
