Pushbutton Momentary
SKU: #303585
Part: #76065PS
UPC: 662381760654
Pushbutton Momentary
SKU: #303585
Part: #76065PS
UPC: 662381760654
Total Price: $20.71 per each Sold in increments of 1 each
Description

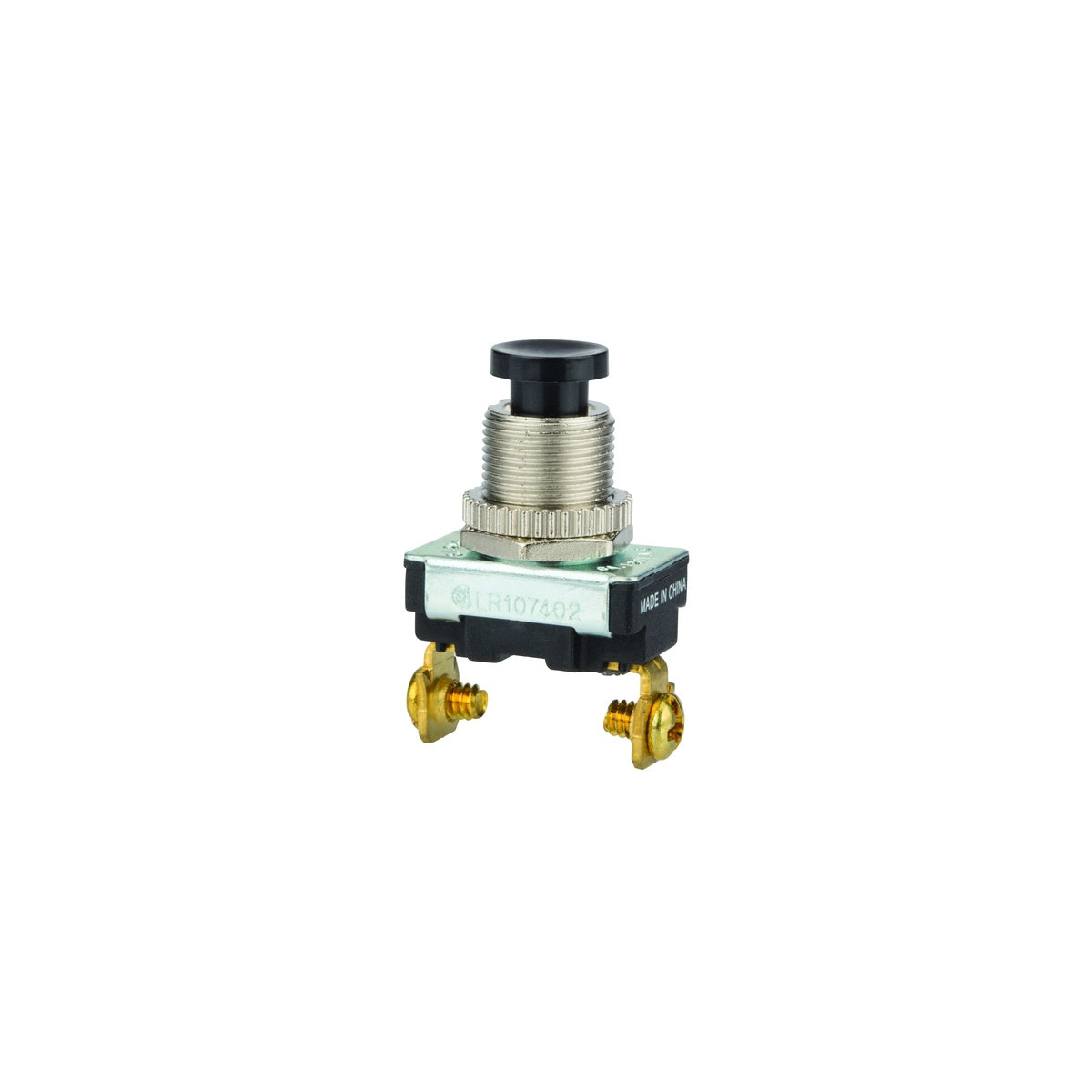

Pushbutton Momentary Switch NSI 76065PS
This Pushbutton Momentary switch is designed for motor-equipment control applications, suitable for electrical distributors and switchgear suppliers requiring reliable control components. The switch features a plastic screw connection and a normally open (SPST NO) contact configuration, providing momentary operation for precise control in electrical circuits.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 76065PS
- Application: Motor-Equipment Control
- Contact Configuration: SPST NO
- Contact Rating: 3 Amp (125 VAC)
- Amperage Rating: 3 Amp (125 VAC)
- Method of Operation: Push Button
- Actuator: NSI
- Mounting: Screw Mount
- Dimensions (W x H x L): 0.563 in x 0.689 in x 0.875 in
- Product Weight: 0.0360 lbs
- Country of Origin: Taiwan
- Order Minimum: 1
Features
- Plastic screw connection for secure wiring
- Momentary pushbutton operation for precise control
- Compact dimensions suitable for panel mounting
- Designed for motor equipment and control applications
