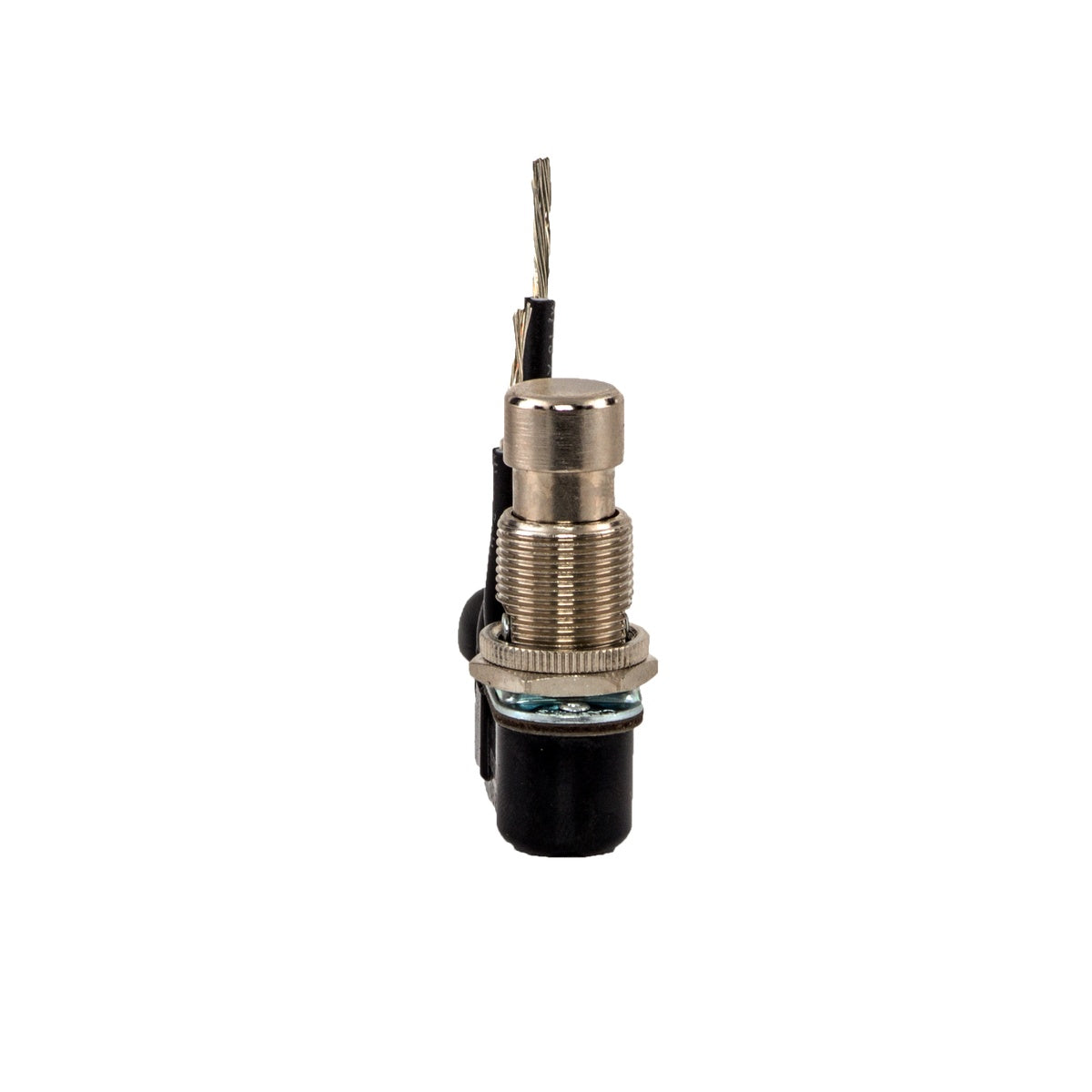

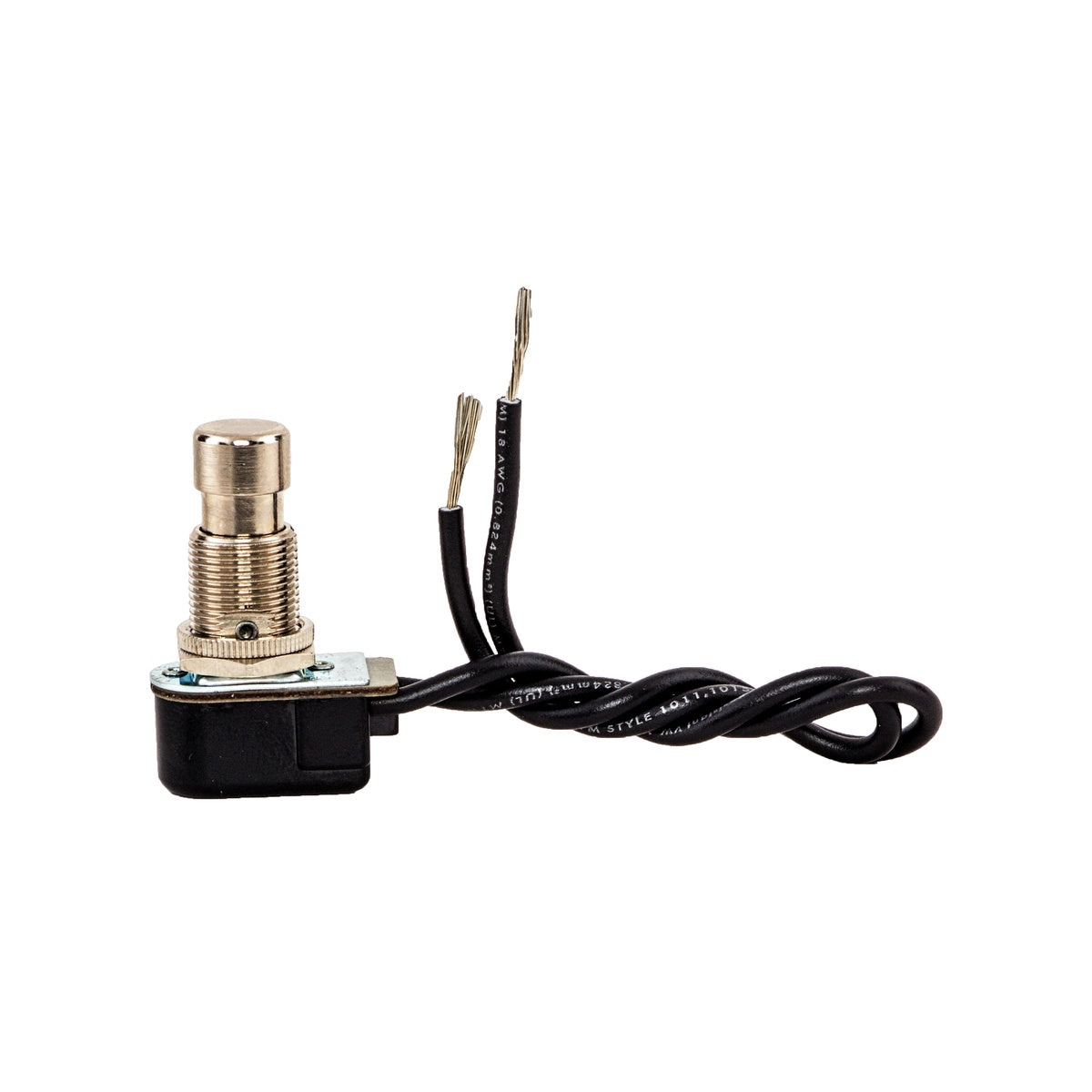

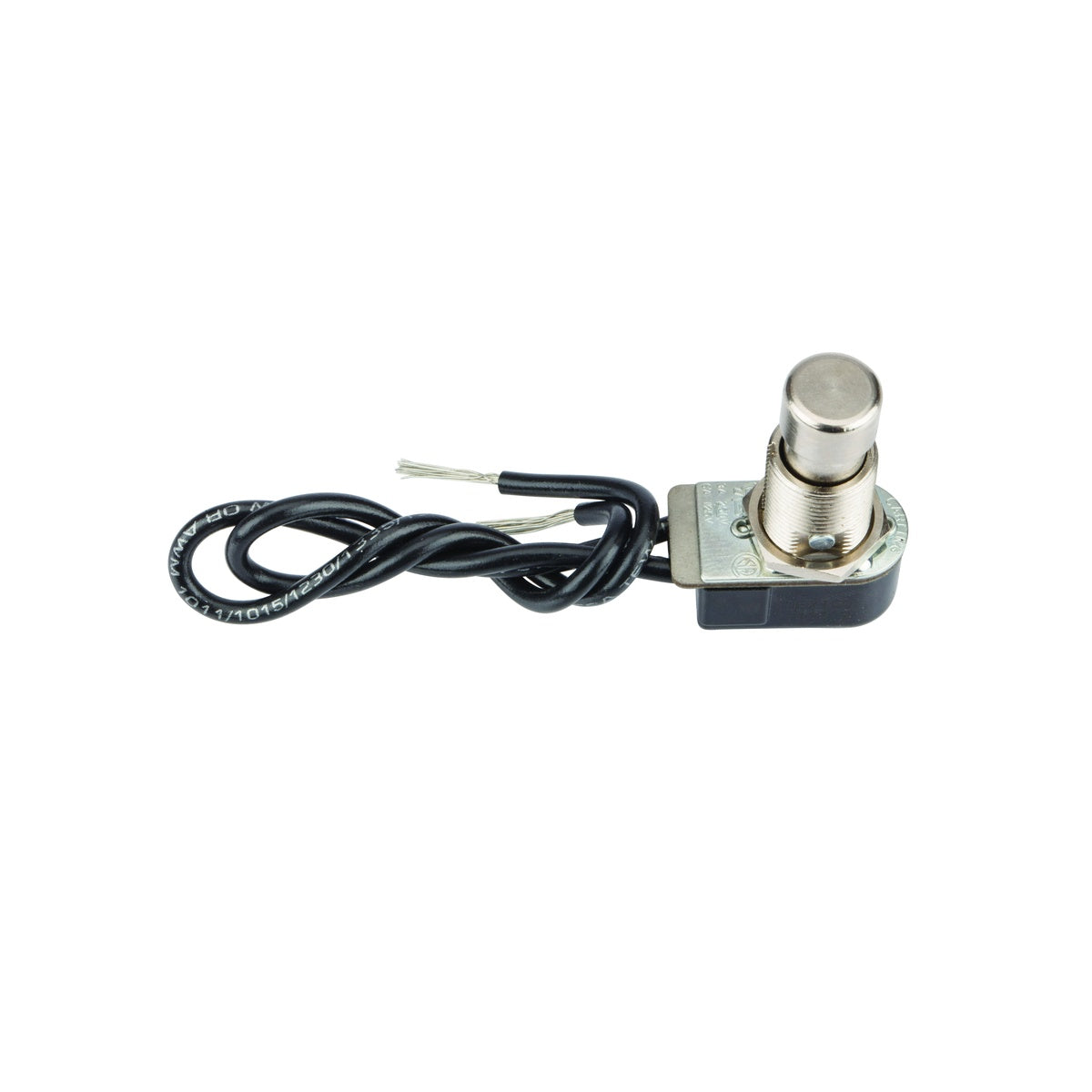

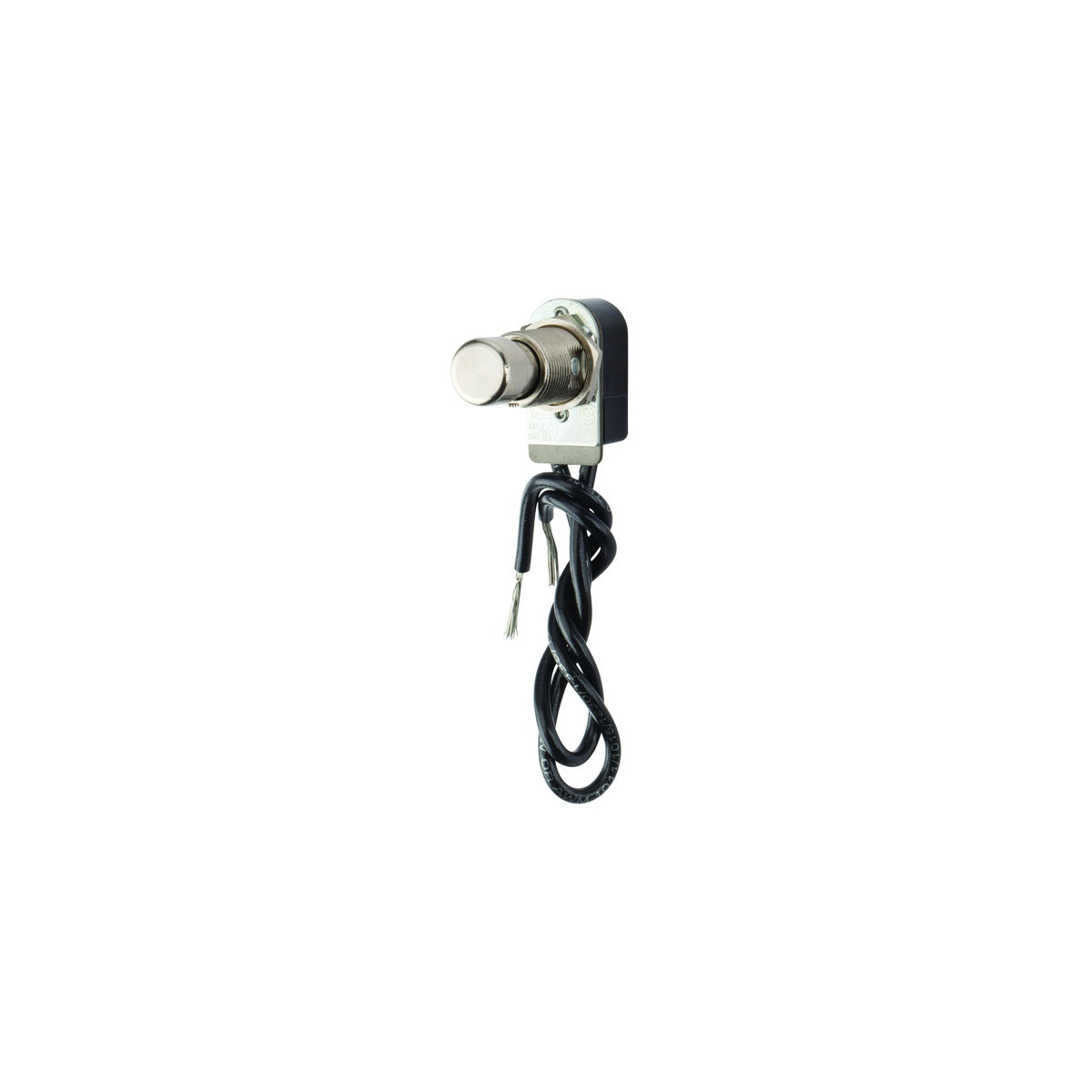

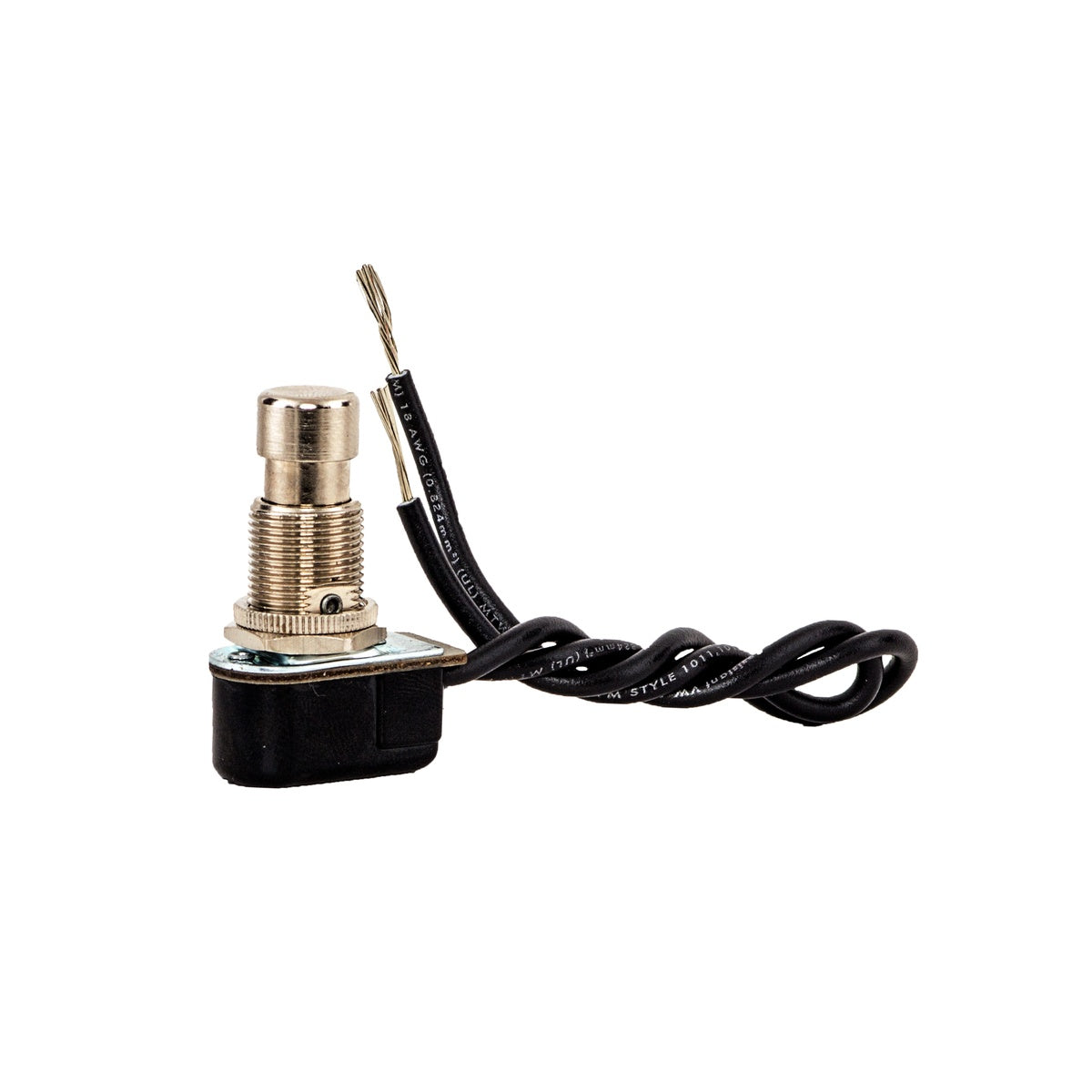

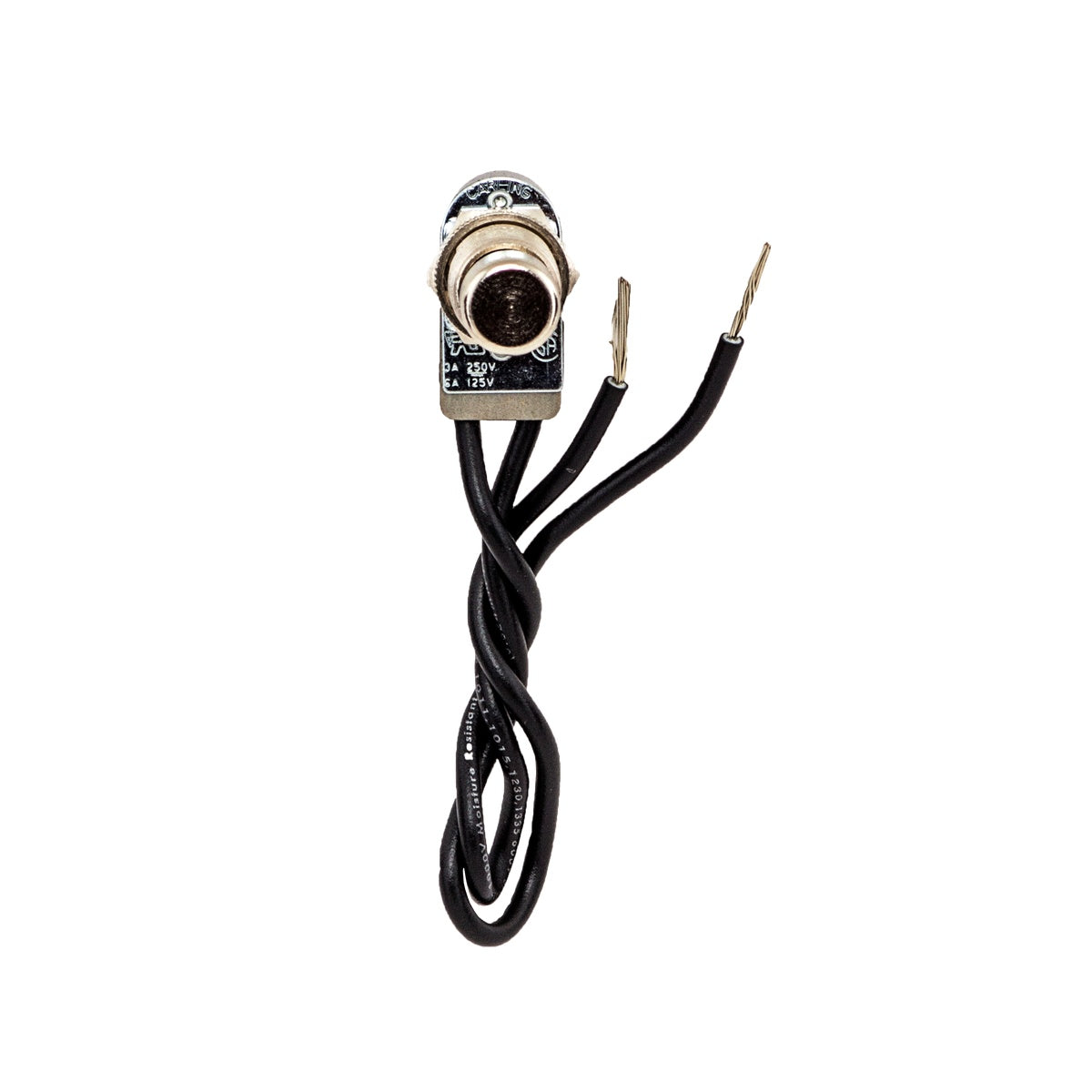

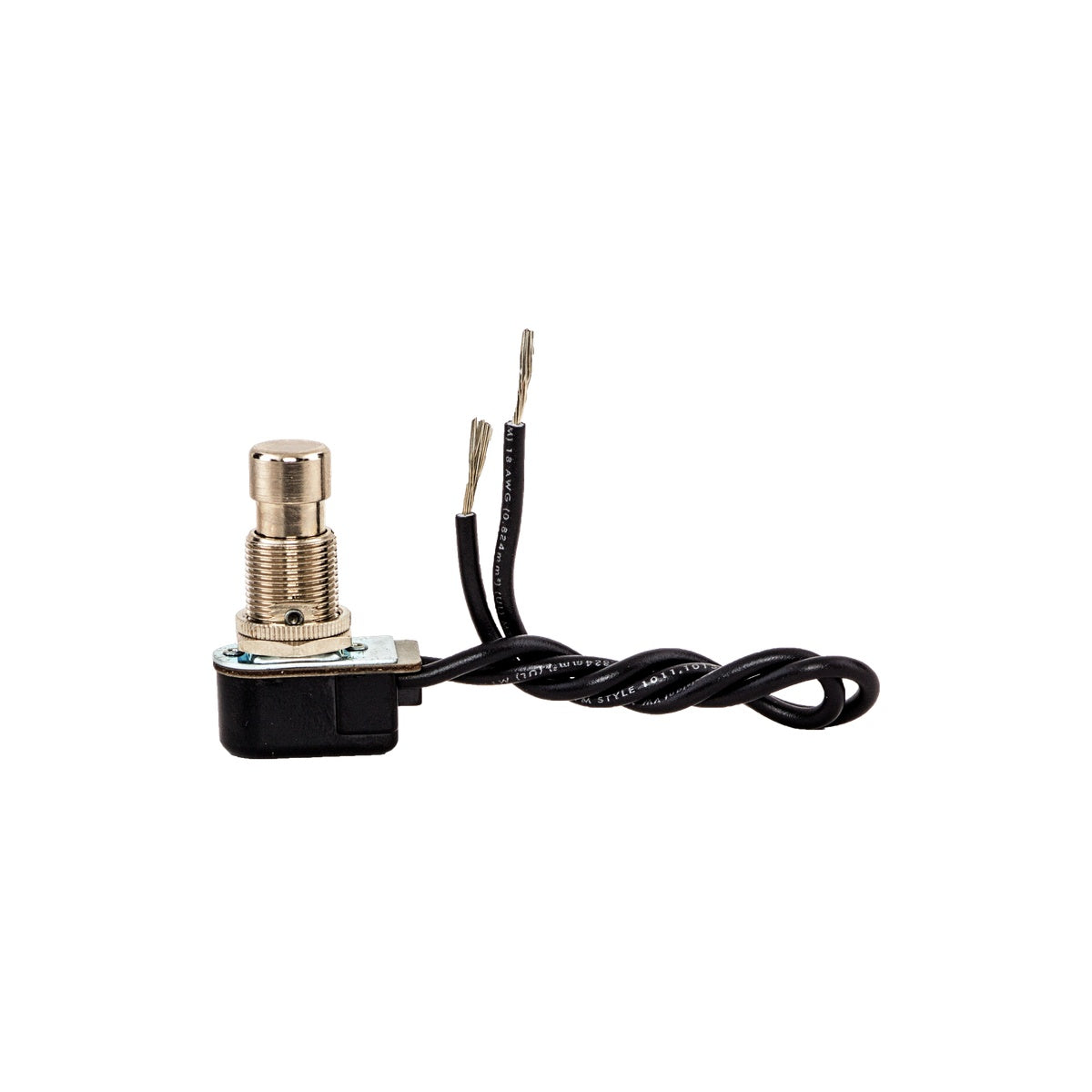

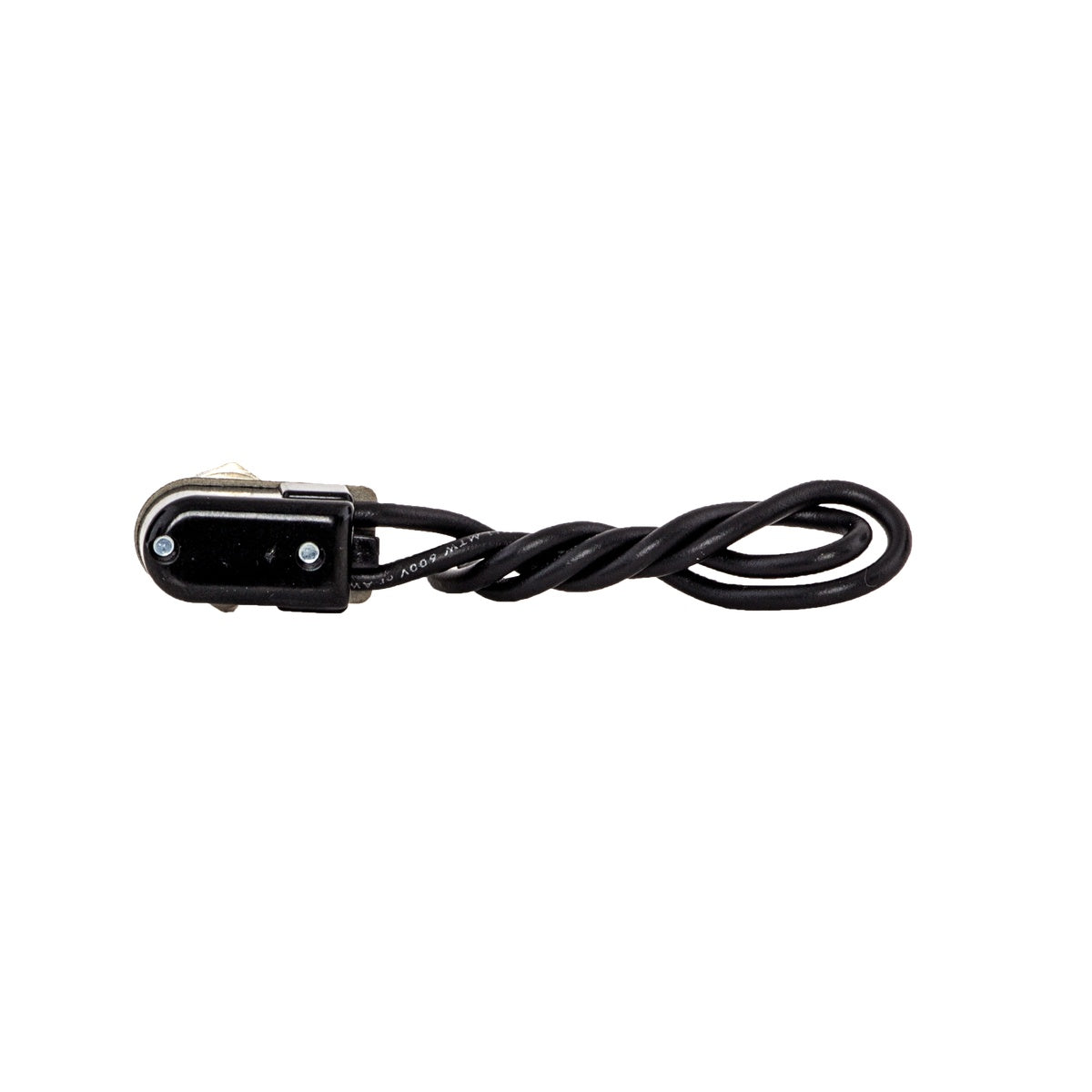

Pushbutton Maintained Wire Leads – NSI 76040PW Pushbutton Switch

This Pushbutton Maintained Wire Leads switch is designed for motor-equipment control applications. It features a single-pole, single-throw (SPST) contact configuration with a push button method of operation, suitable for use by electrical distributors and switchgear suppliers requiring reliable control components.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 76040PW
• Application: Motor-Equipment Control
• Contact Configuration: SPST
• Contact Rating: 6 Amp (125 VAC) - 3 Amp (250 VAC)
• Amperage Rating: 6 Amp (125 VAC) - 3 Amp (250 VAC)
• Method of Operation: Push Button
• Actuator: NSI
• Mounting: Screw Mount
• Dimensions (inches): Length 1.183, Width 0.562, Height 0.542
• Product Weight: 0.0580 lbs
• Country of Origin: Mexico

Features

• Large nickel wire leads for secure electrical connections
• Maintained pushbutton operation ensures stable on/off control
• Brass and nickel actuator material for durability
• Screw mount for easy installation

Downloads & Links

• Spec Sheet
