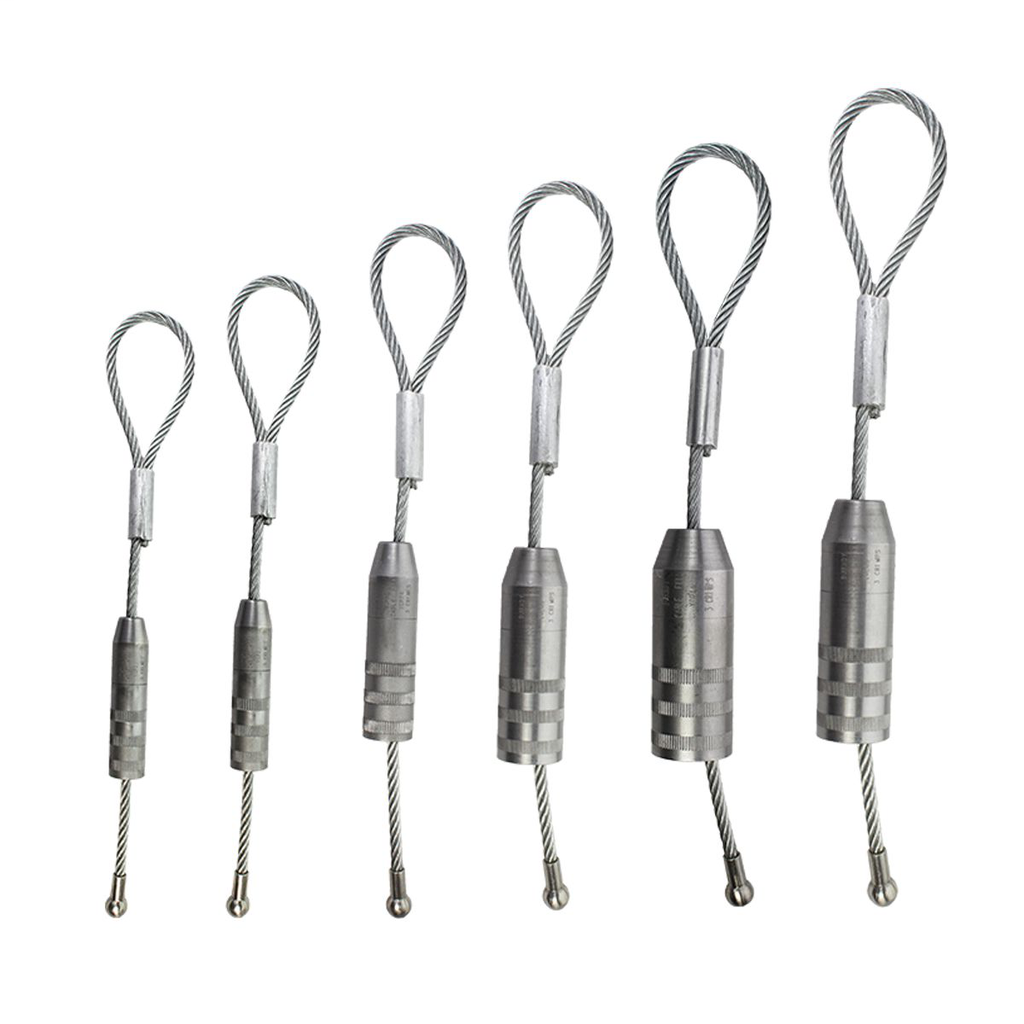

Pulling Grips YCP28L13 by Burndy – Wire Pulling Connector

The Pulling Grips YCP28L13 by Burndy is a compression pulling grip designed for single-use applications in pulling electrical cables. This product is suitable for wire and cable handling within electrical distribution and lighting solutions, offering a reliable method for pulling, terminating, splicing, and taping cables. It supports both copper and aluminum conductors in the 2/0 to 4/0 AWG size range and is compatible with the 644 Series of dieless installation tools for efficient installation.

Specifications

• Application: Wire Pulling Connector
• Cable Type: Pull Sleeve
• Manufacturer: Burndy
• Manufacturer Part #: YCP28L13
• Conductor Size Range (Copper): 2/0 - 4/0 AWG
• Conductor Size Range (Aluminum): 2/0 - 4/0 AWG
• Length: 13 in
• Material: Steel
• Product Weight: 0.3080 lbs
• UPC: 621945470149
• CSA Approved: No
• RoHS Compliance Status: CM

Features

• Easy installation with 644 Series dieless installation tools (PAT644 or Y644)
• Slim profile design for easy passage through ducts and conduit
• Designed for use with copper and aluminum conductors
• Includes 13-inch lanyard length for secure handling
• Two crimps with 180-degree rotation for secure connection
