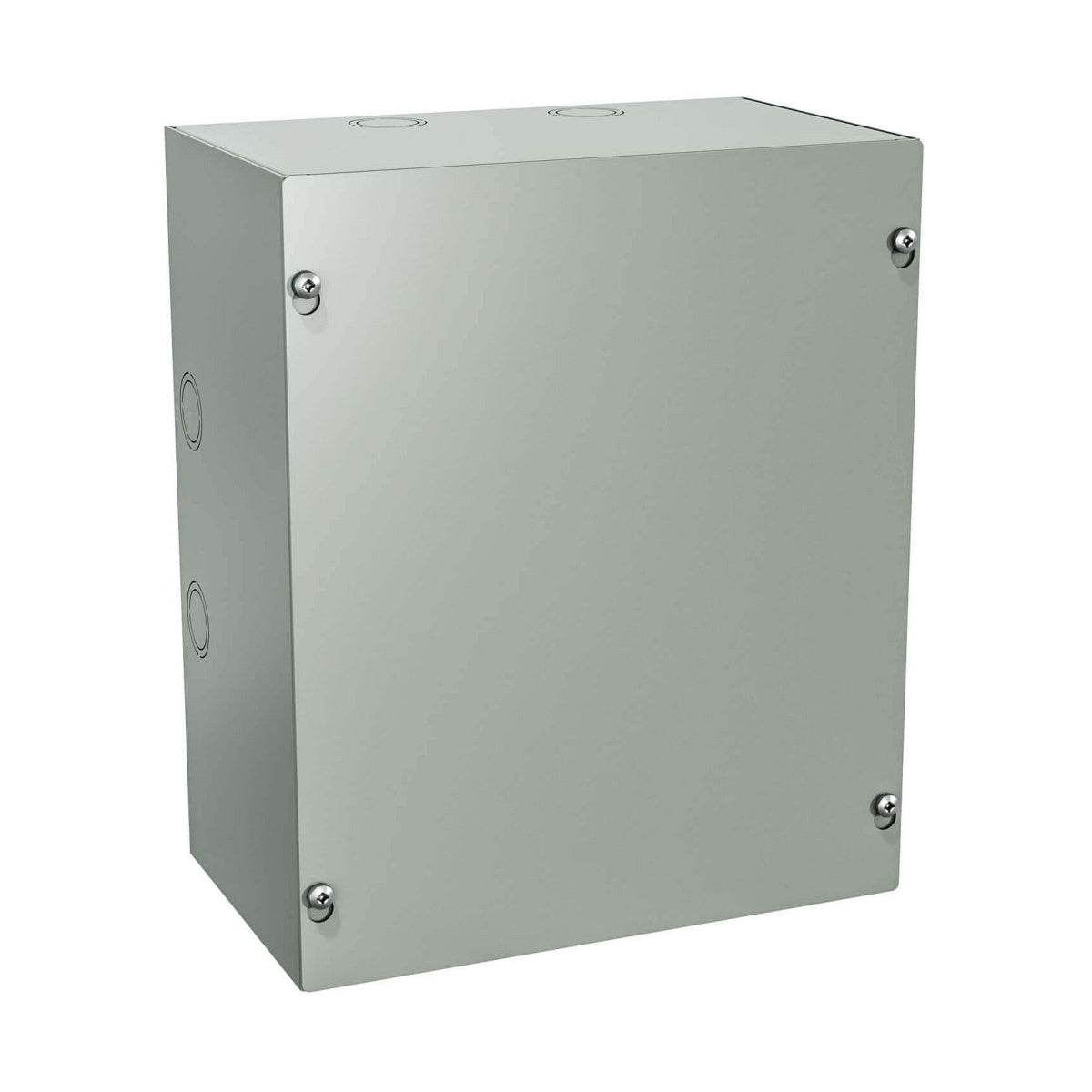

Pull Box Wo/Ko – Electrical Junction Box

The Pull Box Wo/Ko is a NEMA 1 type junction box designed for use as a pull or junction box in electrical installations. It is suitable for electrical distributors and switchgear suppliers requiring durable and reliable enclosures for wire and cable management. This enclosure is CSA certified and meets NEMA, EEMAC 1, and IP30 standards, ensuring compliance with industry requirements for indoor electrical applications.

Specifications

• Manufacturer Part #: 1100DF242408N
• Product Weight: 38 lbs
• Material: High quality steel
• Finish: Heat fused powder paint, electrostatically applied on a pretreated base
• Paint Color: ANSI/ASA 61 smooth gray
• Certification: CSA Certified, NEMA 1, EEMAC 1, IP30
• Mounting: Four internal mounting holes and bonding screw provided
• Cover: Fixed with screws
• Knockouts: Concentric knockouts

Features

• Durable steel construction with protective powder coating for corrosion resistance
• Designed for easy installation and wiring access with multiple knockouts
• Secure cover attachment with screws for safety and protection
• Internal mounting provisions for flexible component installation

Downloads & Links

• Spec Sheet
