Description
PRT42/E2 LED Garage Light by RAB – High-Efficiency Lighting Solution
The PRT42/E2 is an ultra-high efficiency LED garage light designed for commercial and industrial applications, delivering superior illumination and energy savings. Suitable for pendant or surface mounting, this fixture provides 5,171 lumens at 43 watts, offering an equivalent output to a 150W metal halide. It is ideal for electrical distributors and lighting solution providers seeking reliable, durable, and high-performance LED lighting for wire and cable installations or switchgear environments requiring robust lighting.
Specifications
- Manufacturer: RAB
- Model Number: PRT42/E2
- Input Wattage: 43 watts
- Lumens: 5,171 lumens
- Efficacy: 120 lumens per watt
- Color Temperature: 5000 kelvins (Cool)
- Color Accuracy: 78 CRI
- Lens Material: Frosted Polycarbonate
- Ambient Temperature Rating: Up to 104°F (40°C)
- Minimum Starting Temperature: -40°C (-40°F)
- Product Weight: 10.6 lbs

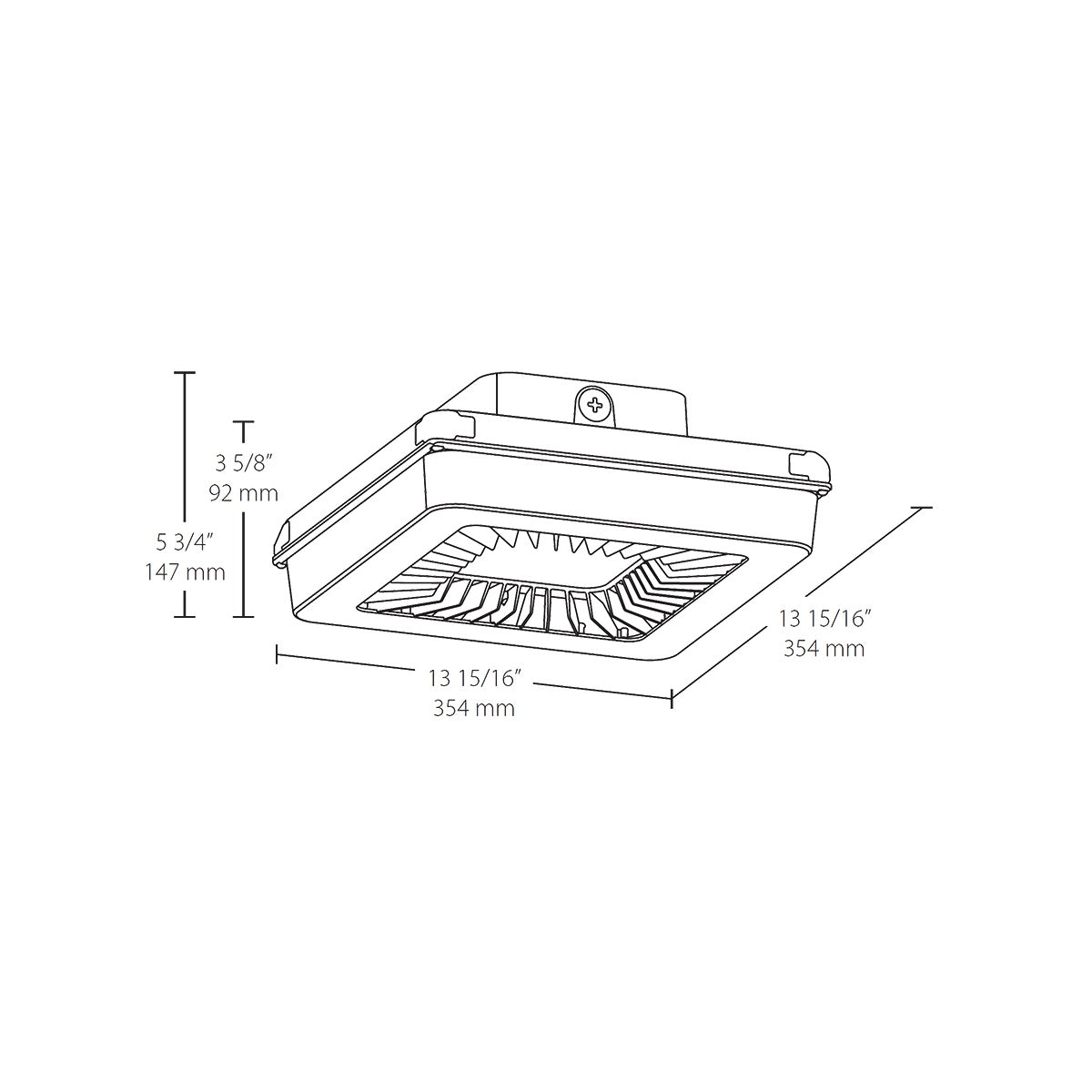

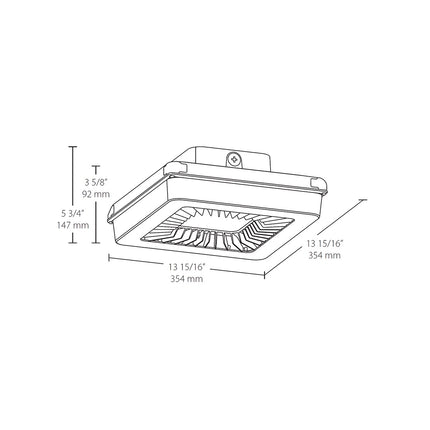

- Dimensions: 13 15/16" x 13 15/16" x 5 3/4" (354 mm x 354 mm x 147 mm)
- IP Rating: IP66 for dust and water protection
- Housing: Die-cast aluminum and sheet metal
- Driver Type: Constant Current, Class 2, 100V - 277V, 50/60 Hz
- THD: Less than 20%
- Power Factor: 99.3% at 120V, 97.7% at 277V
- L70 Lifespan: 100,000 hours
- Battery Backup: Operates fixture for 90 minutes during power failure (120-277V wired)
Features
- Ultra-high efficiency LED technology with 120 lm/W efficacy
- Low glare, vandal-resistant frosted polycarbonate lens
- 20% uplight reduces "cave effect" in garages and covered areas
- Superior thermal management with external "Air-Flow" fins
- Suitable for wet locations with IP66 ingress protection
- Battery backup option for emergency lighting
- RoHS-compliant, mercury and UV free for environmentally responsible installations
- Multiple mounting options: surface mount or 1/2" and 3/4" NPS pendant
- Long lifespan reduces maintenance and replacement costs
- Five-year warranty covering light output, color stability, driver performance, and finish
