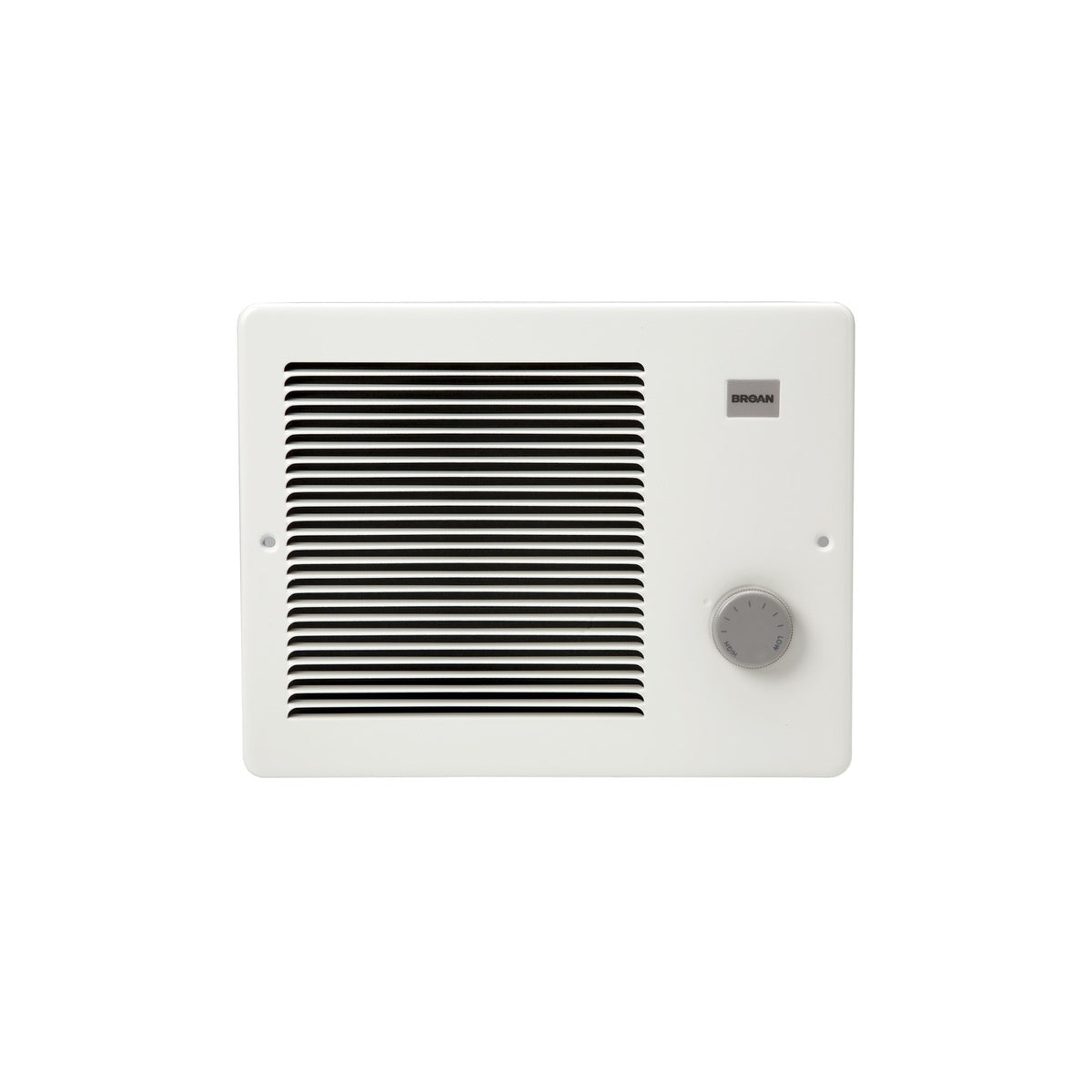

Project Pack Finish Unit - Fan-Forced Wall Heater

This Broan Project Pack Finish Unit is designed for supplemental heating in residential or commercial wall locations, suitable for new or existing construction. It operates as a fan-forced wall heater with a white grille and requires the 171H Project Pack housing for rough-in installation. The unit supports multiple voltage and wattage configurations, making it adaptable for various electrical distributor and switchgear supplier needs.

Specifications

• Manufacturer: Broan
• Manufacturer Part Number: 170F
• Power Ratings: 500W / 1000W at 120VAC, 750W at 208VAC, 1000W at 240VAC
• Color: White grille
• Product Weight: 5 lbs
• UPC: 026715004560

Features

• Fan-forced heating with built-in thermostat control
• White, baked enamel grille with one-piece 20-gauge construction and rounded corners
• Nickel-chrome resistance alloy heating element with mica insulation
• Snap-action, bi-metallic thermostat with manual reset thermal overload protector
• Wattage convertible and voltage-selectable for 120VAC or 240VAC operation
• High-efficiency blower wheel and permanently lubricated motor
• Steel housing finished with black epoxy paint (housing sold separately as model 171H)
• Designed for recessed installation using 171H rough-in housing
• UL Listed for safety compliance
