Program.Digital Thermostat, Double Pole – Programmable Thermostat

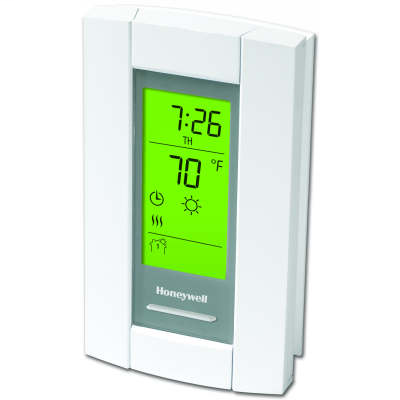

The Honeywell Program.Digital Thermostat, Double Pole (Model TL8230A1003) is a 7-day programmable thermostat designed for electronic control of 208/240 Vac resistive rated electric baseboard heaters, radiant ceiling heat, convectors, and fan-forced heaters. Suitable for electrical distributors and switchgear suppliers, it offers precise temperature management in residential or commercial heating applications.

Specifications

• Power Supply: 208/240 VAC, 50 Hz
• Maximum Load: 15.0 A (3600 W @ 240 VAC; 3120 W @ 208 VAC)
• Setpoint Range: 40 °F to 86 °F (5 °C to 30 °C)
• Display Range: 32 °F to 158 °F (0 °C to 70 °C)
• Resolution: 1 °F (0.5 °C)
• Ambient Temperature: 0 to 50 °C
• Heating Cycle Duration: 15 minutes
• Product Weight: 0.8 lb
• Color: Premier White
• Manufacturer Part #: TL8230A1003/U

Features

• 7-day programmable schedule with four periods per day for customized energy management
• Automatic and manual operation modes with temporary and permanent override options
• Three preset temperature settings: Comfort (70 °F), Economy (62 °F), and Vacation (50 °F)
• Early Start feature to optimize heating start time for comfort
• Backlit digital display with temperature, time, day, and operational icons
• Easy installation with solderless connectors for copper wires and mounting screws included
• Data protection with memory retention of settings during power outages (except clock and daylight savings time after extended outages)
• Suitable for resistive electric heating loads only
